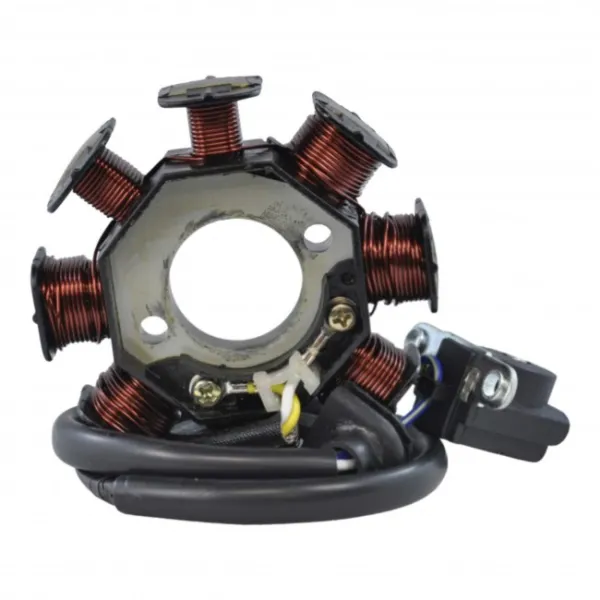

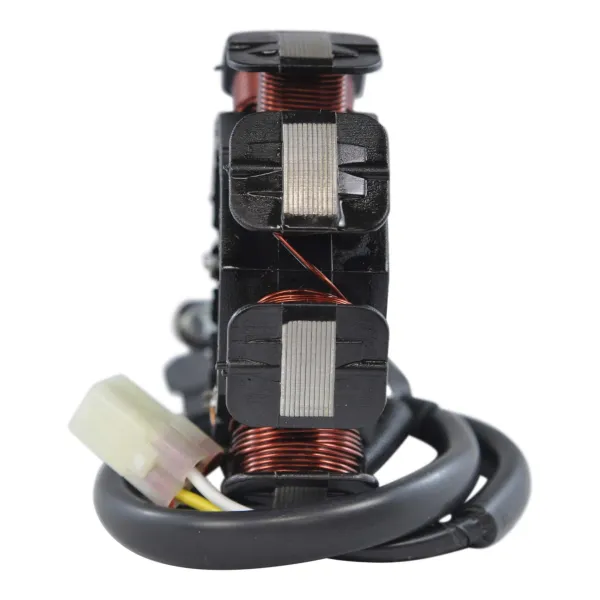

Stator-Arctic Cat-90-DVX 90

Stator

Resistant to 200 degrees Celsius

2024 Arctic Cat Alterra 90

2023 Arctic Cat Alterra 90

2022 Arctic Cat Alterra 90

2021 Arctic Cat Alterra 90

2020 Arctic Cat Alterra 90

2019 Arctic Cat DVX 90

2019 Arctic Cat Alterra 90

2018 Arctic Cat DVX 90

2018 Arctic Cat Alterra 90

2017 Arctic Cat DVX 90

2017 Arctic Cat Alterra 90

2017 Arctic Cat 90

2016 Arctic Cat DVX 90

2016 Arctic Cat 90 Utility

2016 Arctic Cat 90

2015 Arctic Cat DVX 90

2015 Arctic Cat 90 Utility

2015 Arctic Cat 90

2014 Arctic Cat DVX 90

2014 Arctic Cat 90 Utility

2014 Arctic Cat 90

2013 Arctic Cat DVX 90

2013 Arctic Cat 90 Utility

2013 Arctic Cat 90

2012 Arctic Cat DVX 90

2012 Arctic Cat 90 Utility

2012 Arctic Cat 90

2011 Arctic Cat DVX 90

2011 Arctic Cat 90 Utility

2011 Arctic Cat 90

2010 Arctic Cat DVX 90

2010 Arctic Cat 90 Utility

2009 Arctic Cat DVX 90

2009 Arctic Cat 90 Utility

2008 Arctic Cat DVX 90

2008 Arctic Cat 90 Utility

2007 Arctic Cat DVX 90

2007 Arctic Cat 90 Utility

2006 Arctic Cat DVX 90

2006 Arctic Cat 90 Utility

OEM 3303-416 3305-254 3304-641 3305-256

Dimensions:
Interior diameter: 28mm
Exterior diameter: 87mm
Thickness: 8mm
Length of wires stator to grommet: 112mm
Length of wires grommet to plug: 325mm
Length of pickup coil's wire to grommet: 25mm

Other Specifications:
Number of wires: 3
Number of plugs: 1
Number of terminals: 3

Wire to wire resistance:
Alternator: = 0.4ohms +/-20%
Pickup: = 110ohms =+/-20%


Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included

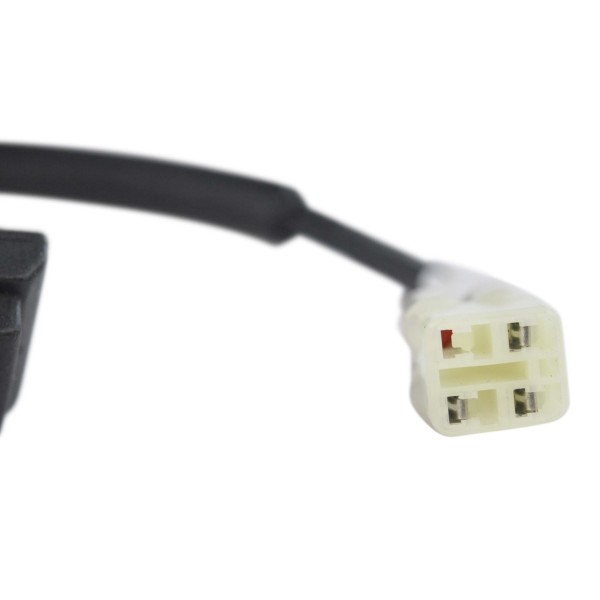

Connector included
Rubber grommet included
All products shipped are tested
