Stator Arctic Cat 150 OEM 3304-967 3304-968
€144.00
Tax included

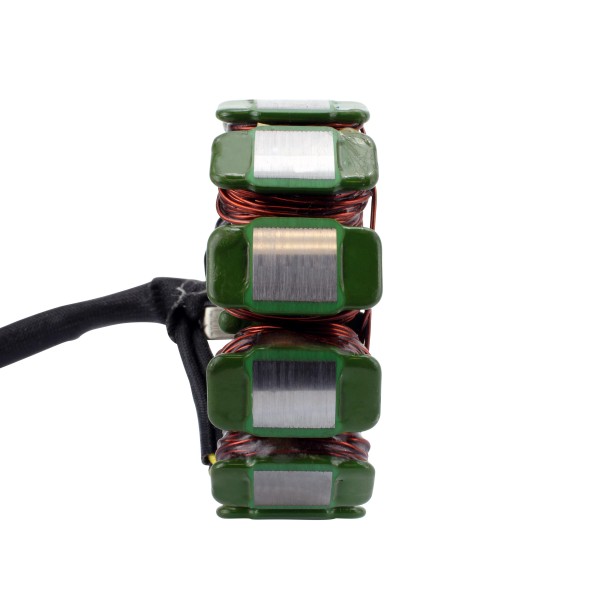

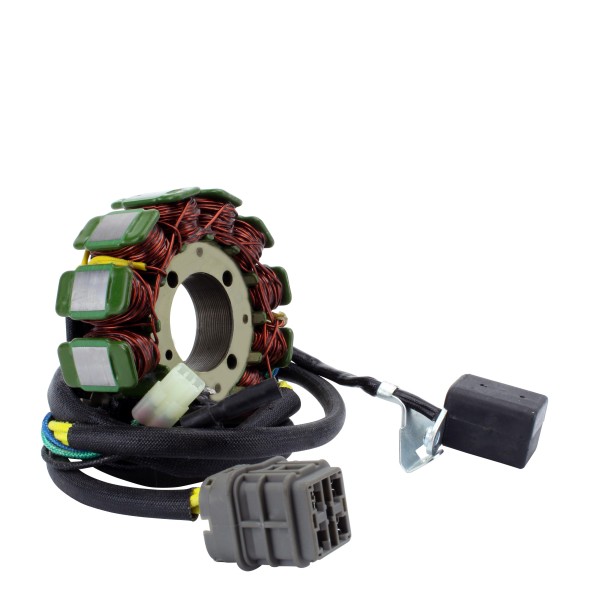

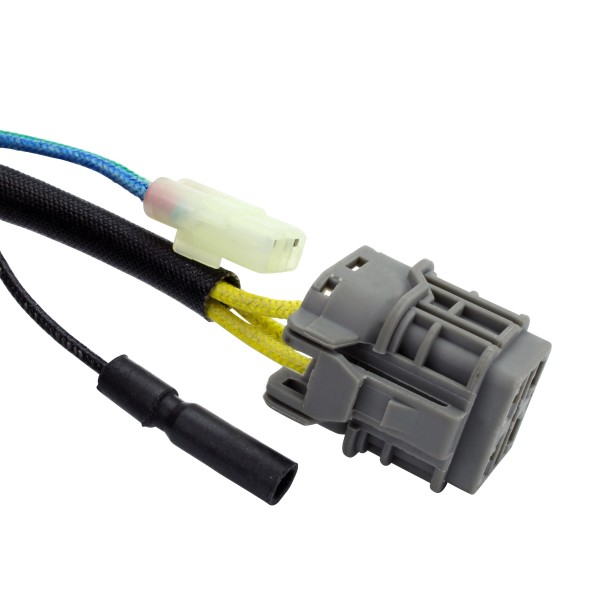

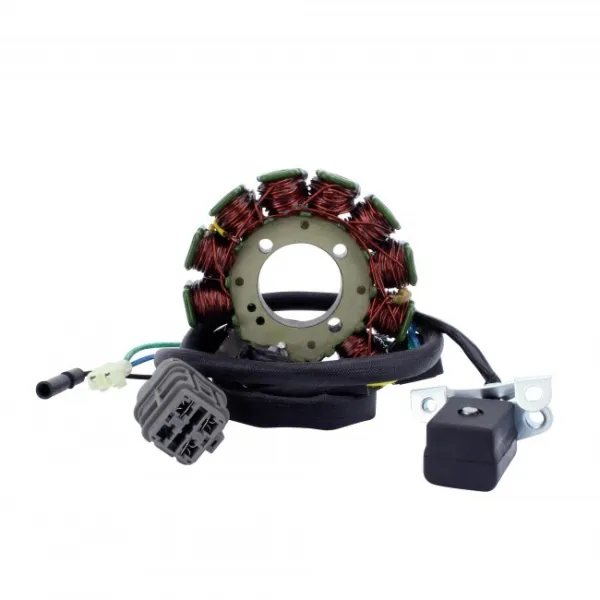

Stator Arctic Cat 150 OEM 3304-967 3304-968
Stator
Resistant to 200 degrees Celsius
2009-2019 Arctic Cat 150
OEM 3304-967 3304-968
Dimensions :
Interior diameter : 32 mm
Exterior diameter : 88.5 mm
Thickness : 17 mm
Length of wires stator to grommet : 110 mm
Length of wires grommet to plug : 740 mm
Length of pickup coil's wire to grommet : 80 mm
Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6
Number of poles : 10
Interior diameter : 32 mm
Exterior diameter : 88.5 mm
Thickness : 17 mm
Length of wires stator to grommet : 110 mm
Length of wires grommet to plug : 740 mm
Length of pickup coil's wire to grommet : 80 mm
Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6
Number of poles : 10
Wire to wire resistance :
Alternator : Between each Yellow = 0.4 ohms +-20%
Pickup : Blue to Green = 100 ohms +-20%
Source : Black/Red to Ground = 450 ohms +-20%
Alternator : Between each Yellow = 0.4 ohms +-20%
Pickup : Blue to Green = 100 ohms +-20%
Source : Black/Red to Ground = 450 ohms +-20%
