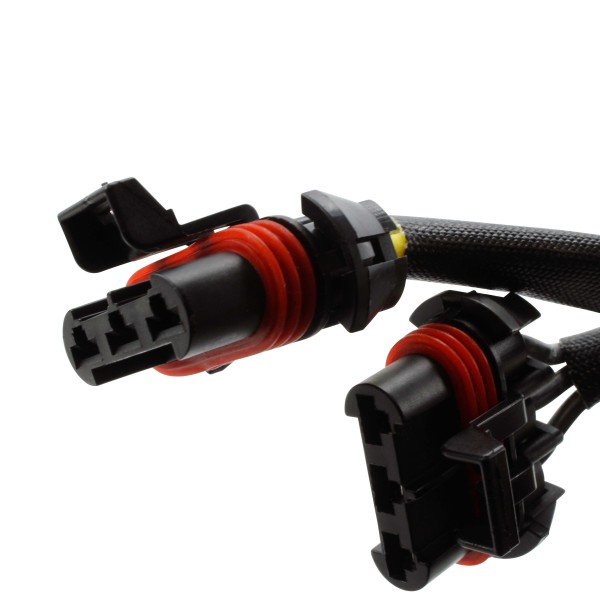

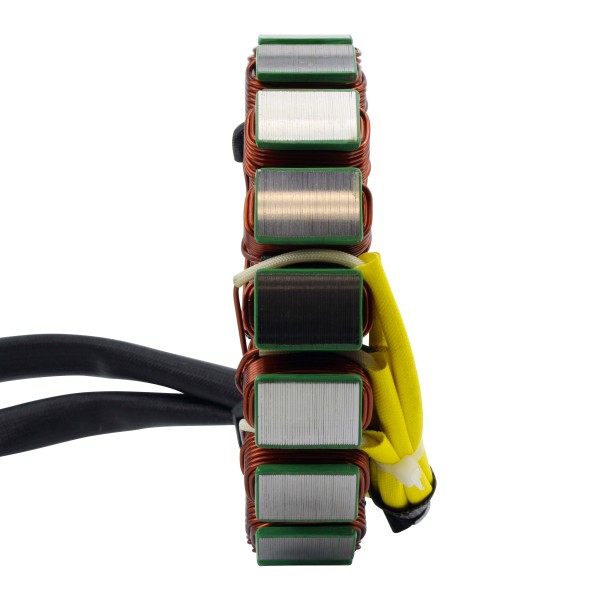

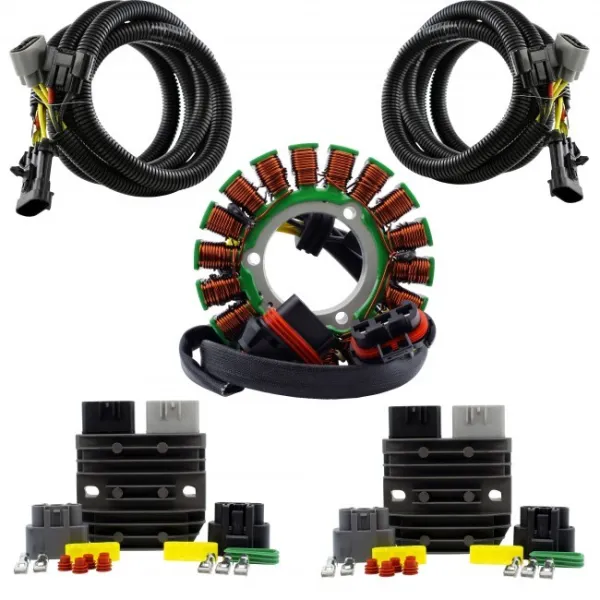

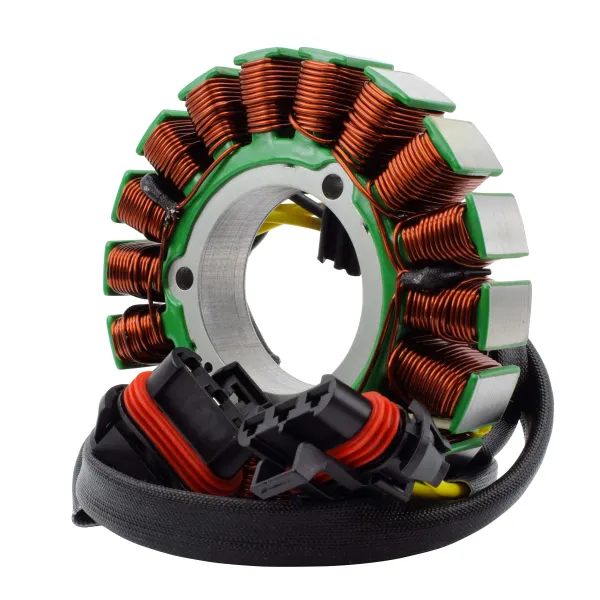

Dual Stator Dimensions : Interior diameter : 53 mm Exterior diameter : 125 mm Thickness : 26 mm Length of wires stator to grommet : 125 mm Length of wires grommet to plug : 290 mm and 550 mm Other specifications : Number of wires : 6 Number of plugs : 2 Number of pins : 6 Number of poles : 18
Wire to wire resistance : Alternator Yellow / Black to Yellow / Black : = 0.5 ohms +-20% Alternator to ground = O.L

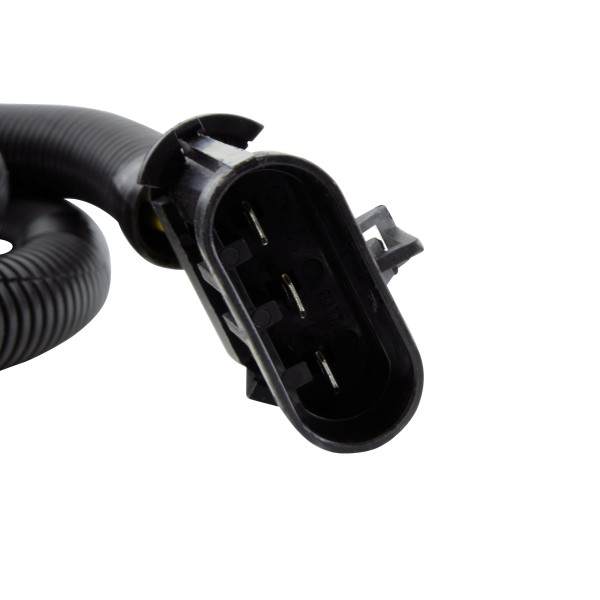

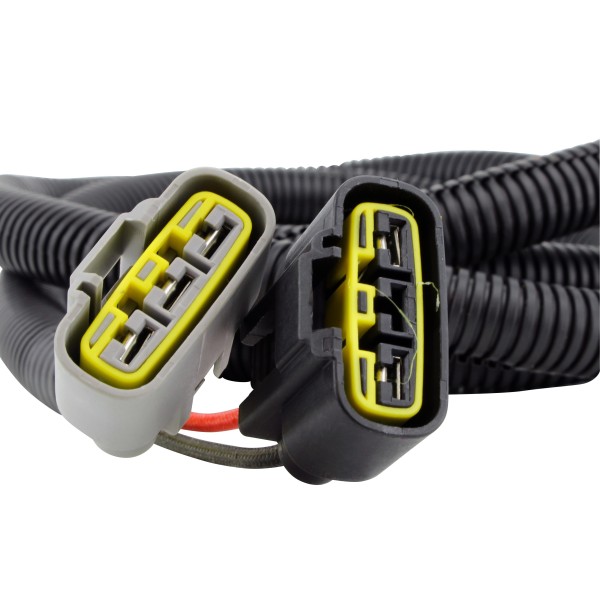

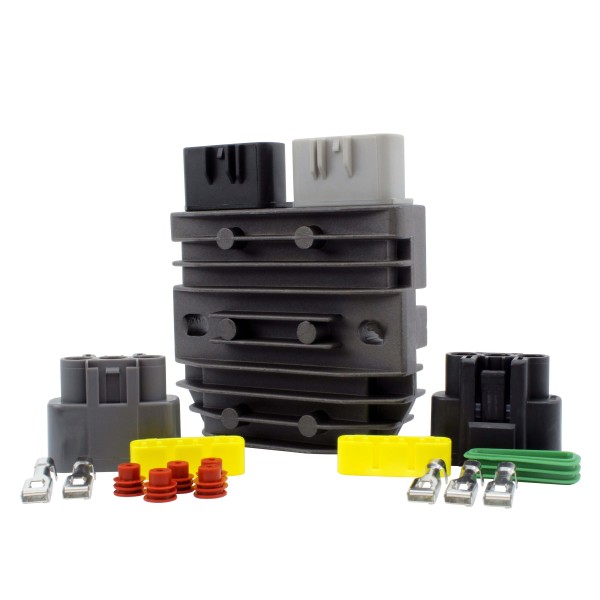

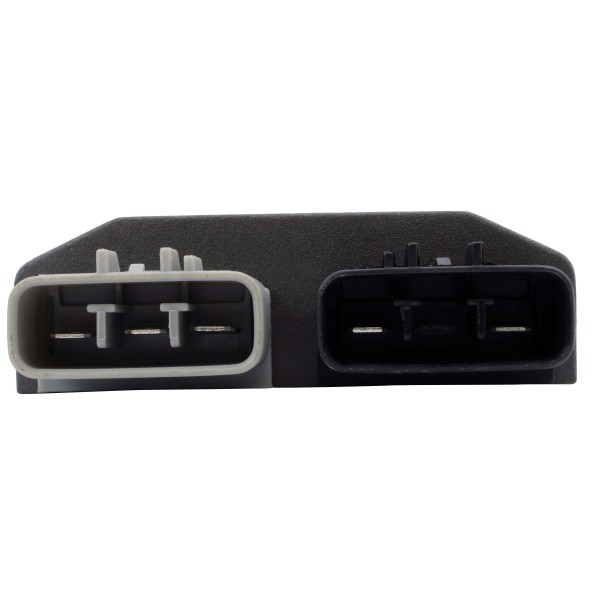

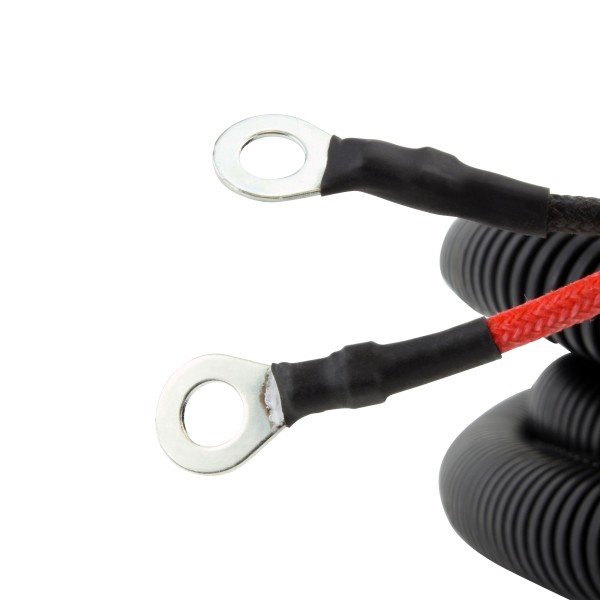

Regulator Dimensions: Width: 84 mm Length: 90 mm Height: 32 mm Fixation holes center to center: 69 mm Other specifications: Number of plugs: 2 Number of pins: 5 Minimum Charging Voltage: 14.5 V +- 0.5 V Maximum Charging Current: 50 A / 500 W Open Circuit Voltage: < 15 V Operation Temperature: -20º to 85º Relocation Harness Wires length : 3400 mm Number of yellow wires : 3 Number of red wires : 1 Number of black wires : 1 Number of plugs : 2
