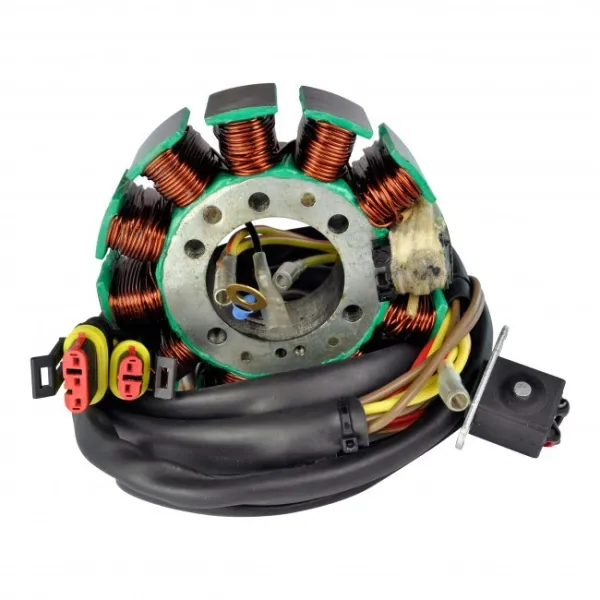

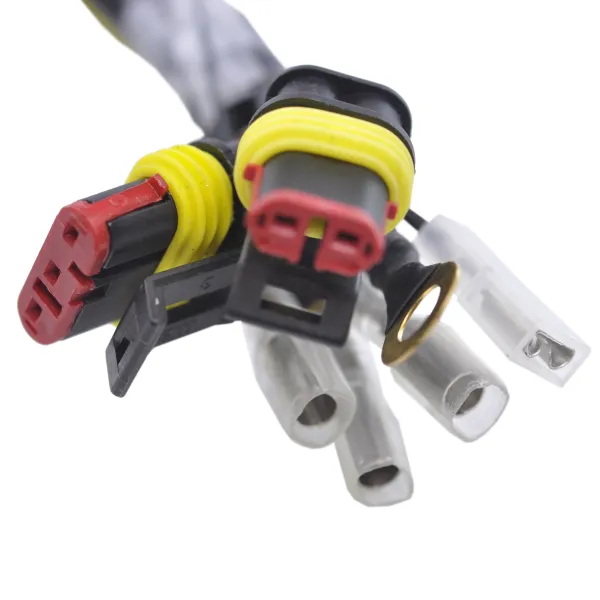

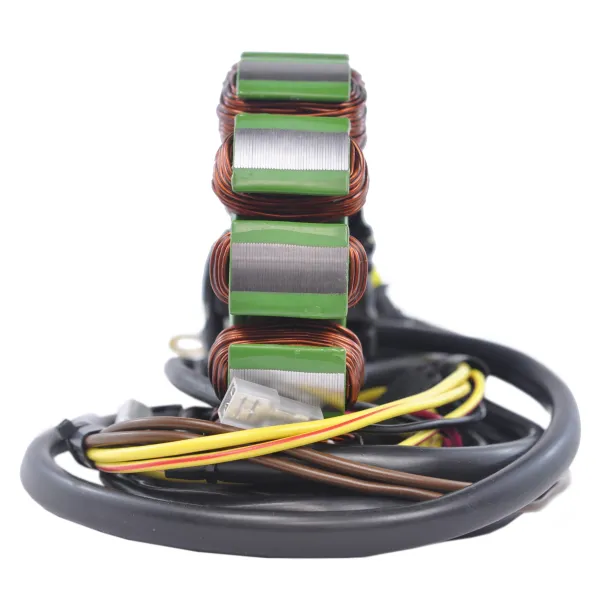

Stator-Polaris-600 Sportsman

• Stator
• Resistant to 200 degrees Celsius
• 2006 Polaris Sportsman 700
  2005 Polaris Sportsman 600
  2005 Polaris Sportsman 700
  2004 Polaris Sportsman 600
  2004 Polaris Sportsman 700
  2003 Polaris Sportsman 600 4x4 Carb
  2003 Polaris Sportsman 700 4x4
  2003 Polaris Sportsman 700 Carb
  2002 Polaris Sportsman 700
  2002 Polaris Sportsman 700 Carb

  OEM
• 2202602
• 2202603
• 4010709
• 4011103
• 4060150

Dimensions :

Interior diameter : 40 mm

Exterior diameter : 108 mm

Thickness : 25 mm

Length of wires stator to grommet : 85 mm

Length of wires grommet to plug : 930 mm & 960 mm & 1000 mm

Length of pickup coil's wire to grommet : 160 mm

Other specifications :

Number of wires : 10

Number of plugs : 7

Number of pins : 10

Wire to wire resistance :

Alternator : Yellow to Yellow/Red = 0.4 ohms +/-20%

Alternator : Yellow to Ground = 0.L on display

Pickup : Red to Black = 360 ohms +/-20%

Source : Brown to Yellow = 5.8 ohms +/-20%
