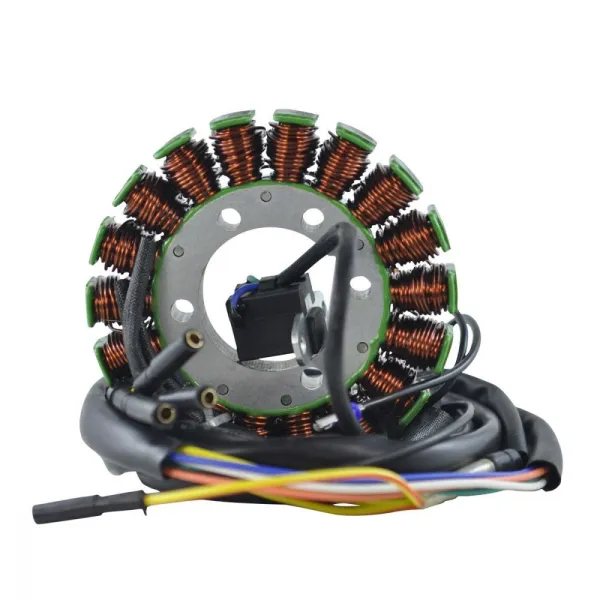

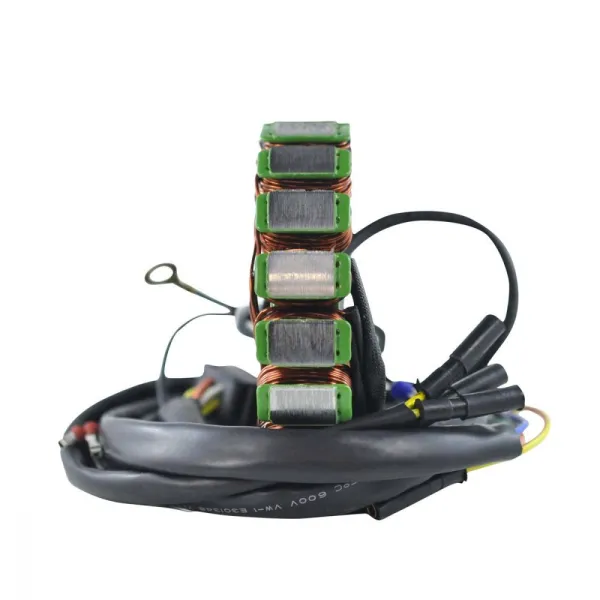

Stator-Polaris-Sportsman 700

Stator

Resistant to 200 degrees Celsius

2006 Polaris Sportsman 700 Carb
2005 Polaris Sportsman MV7
2005 Polaris Sportsman 700 Carb
2005 Polaris Sportsman 600
2004 Polaris Sportsman 700 Carb
2004 Polaris Sportsman 600

OEM 4010901

Dimensions :
Interior diameter : 40 mm
Exterior diameter : 107 mm
Thickness : 18 mm
Length of wires stator to grommet : 75 mm
Length of wires grommet to plug : 900 mm & 950 mm & 1200 mm
Length of pickup coil's wire to grommet : 200 mm

Other specifications :
Number of wires : 8
Number of plugs : 11
Number of pins : 11

Wire to wire resistance :
Alternator : Yellow/Red to Yellow = 0.4 ohms +/-20%
Alternator : Yellow to Ground = 0.L on display
Pickup : Blue to Green = 200 ohms +/-20%
Source : Red to White = 0.3 ohms +/-20%

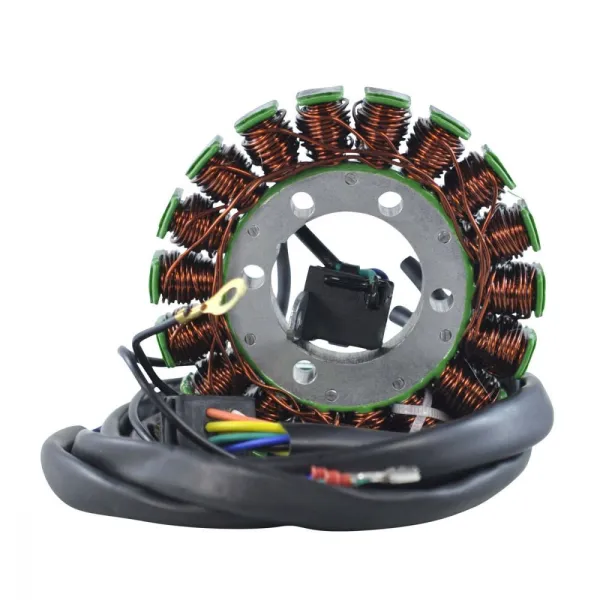

There are two possible stators for the 2004-2005 Polaris Sportsman 600 & 700
