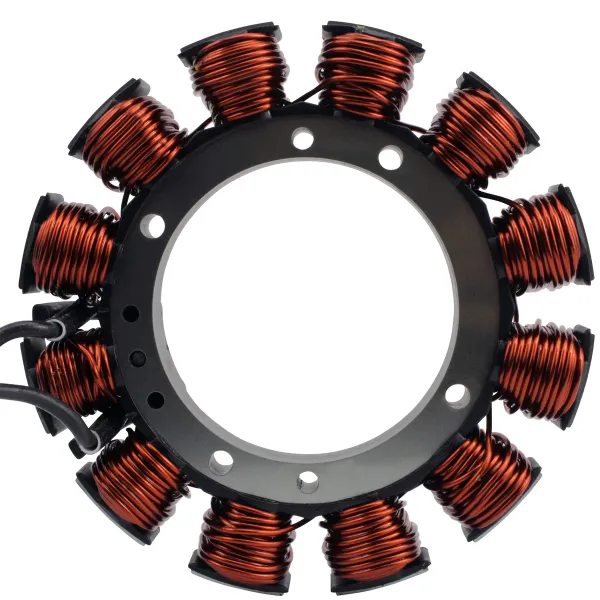

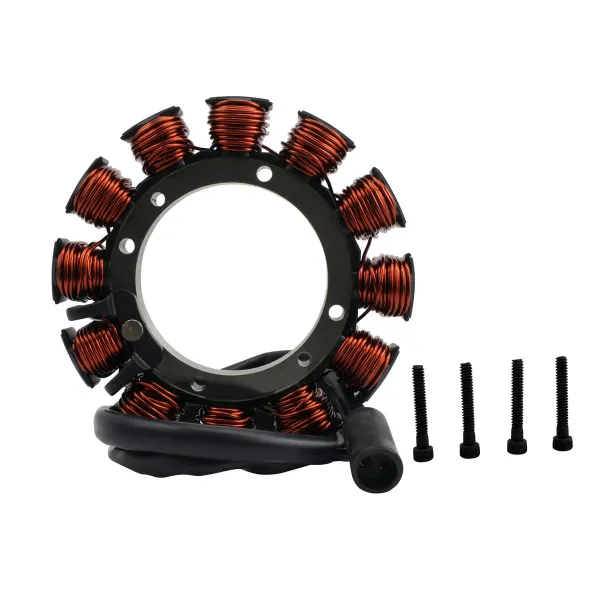

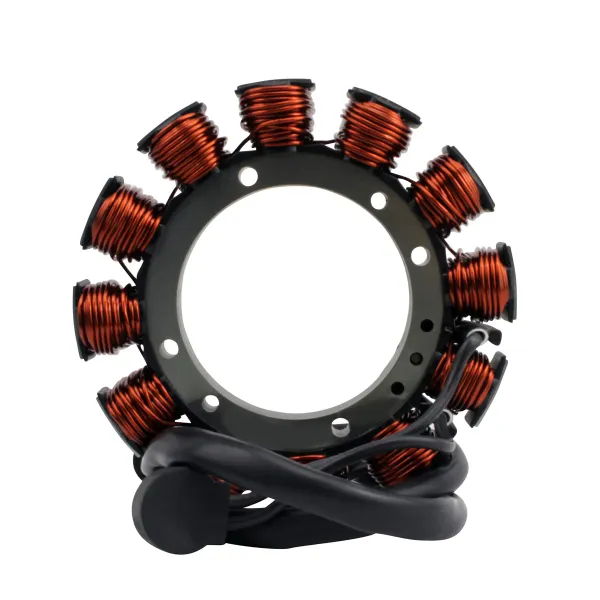

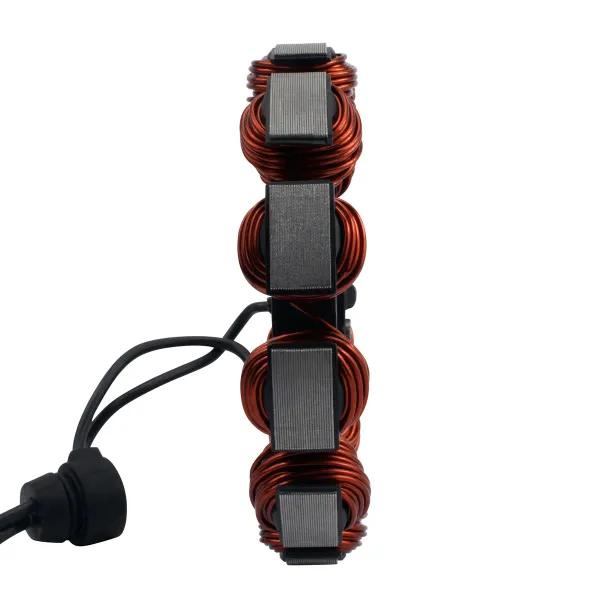

Stator Harley Davidson Sportster 883 1200 Buell Cyclone M2 OEM 29967-89A 29967-89C

Direct replacement to your original unit

Plug-and-play, direct fit, easy installation

Highest grade of lamination materials

Highest grade of copper winding, resistant to 200 degrees Celsius

Connectors included

Rubber grommet included

Mounting Bolts included

2006 Harley Davidson Sportster 883

2006 Harley Davidson Sportster 1200

2005 Harley Davidson Sportster 883

2005 Harley Davidson Sportster 1200

2004 Harley Davidson Sportster 883

2004 Harley Davidson Sportster 1200

2003 Harley Davidson Sportster 883

2003 Harley Davidson Sportster 1200

2002 Harley Davidson Sportster 883

2002 Harley Davidson Sportster 1200

2002 Buell Cyclone M2 1200

2001 Harley Davidson Sportster 883

2001 Harley Davidson Sportster 1200

2001 Buell Cyclone M2 1200

2000 Harley Davidson Sportster 883

2000 Harley Davidson Sportster 1200

2000 Buell Cyclone M2 1200

1999 Harley Davidson Sportster 883

1999 Harley Davidson Sportster 1200

1999 Buell Cyclone M2 1200

1998 Harley Davidson Sportster 883

1998 Harley Davidson Sportster 1200

1998 Buell Cyclone M2 1200

1997 Harley Davidson Sportster 883

1997 Harley Davidson Sportster 1200

1997 Buell Cyclone M2 1200

1996 Harley Davidson Sportster 883

1996 Harley Davidson Sportster 1200

1995 Harley Davidson Sportster 883

1995 Harley Davidson Sportster 1200

1994 Harley Davidson Sportster 883

1994 Harley Davidson Sportster 1200

1993 Harley Davidson Sportster 883

1993 Harley Davidson Sportster 1200

1992 Harley Davidson Sportster 883

1992 Harley Davidson Sportster 1200

1991 Harley Davidson Sportster 883

1991 Harley Davidson Sportster 1200

OEM 29967-89

29967-89A

29967-89B

29967-89C

Dimensions:

Interior diameter: 71 mm

Exterior diameter: 135 mm

Thickness: 13 mm

Length of wires stator to grommet: 100 mm

Length of wires grommet to plug: 640 mm

Other specifications:

Number of wires: 2

Number of plugs: 1

Number of pins: 2

Number of poles: 12

Wire to wire resistance:

Alternator: Black to Black = 0.6 ohms +/-20%

Alternator: Black to ground = O.L
