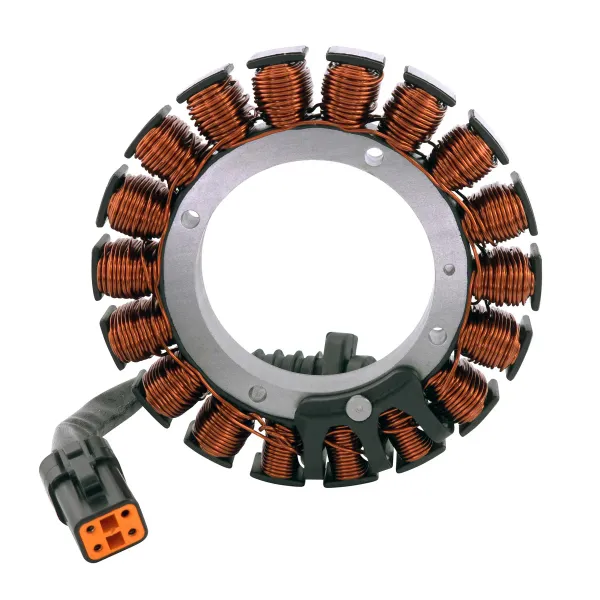

Stator Harley Davidson Dyna Super Glide Fat Boy Heritage Softail OEM 30017-01B 30017-01A-138

Direct replacement to your original unit

Plug-and-play, direct fit, easy installation

Highest grade of lamination materials

Highest grade of copper winding, resistant to 200 degrees Celsius

Connectors included

Rubber grommet included

2006 Harley Davidson Dyna Super Glide 1450

2006 Harley Davidson Dyna Wide Glide 1450

2006 Harley Davidson Fat Boy 1450

2006 Harley Davidson Heritage Softail 1450

2006 Harley Davidson Softail Standard FXST 1450

2006 Harley Davidson Softail Springer Classic FLSTSC 1450

2006 Harley Davidson Softail Standard EFI FXSTI 1450

2006 Harley Davidson Softail Springer FXSTS 1450

2006 Harley Davidson Softail Night Train EFI FXSTBI 1450

2006 Harley Davidson Softail Deuce FXSTD 1450

2006 Harley Davidson Softail Deuce EFI FXSTDI 1450

2006 Harley Davidson Heritage Softail Classic FLSTC 1450

2006 Harley Davidson Heritage Softail Classic EFI FLSTCI 1450

2006 Harley Davidson Softail Springer EFI FXSTSI 1450

2006 Harley Davidson Softail Deluxe EFI FLSTNI 1450

2006 Harley Davidson Softail Deluxe FLSTN 1450

2006 Harley Davidson Softail Springer Classic EFI FLSTSCI 1450

2006 Harley Davidson Dyna Street Bob 1450

2006 Harley Davidson Screamin Eagle Fat Boy 1690

2006 Harley Davidson Night Train FXSTB 1450

2006 Harley Davidson Dyna Low Rider EFI FXDLI 1450

2005 Harley Davidson Dyna Super Glide 1450

2005 Harley Davidson Dyna Wide Glide 1450

2005 Harley Davidson Fat Boy 1450

2005 Harley Davidson Softail Standard FXST 1450

2005 Harley Davidson Softail Springer Classic FLSTSC 1450

2005 Harley Davidson Softail Standard EFI FXSTI 1450

2005 Harley Davidson Softail Springer FXSTS 1450

2005 Harley Davidson Softail Night Train EFI FXSTBI 1450

2005 Harley Davidson Dyna Low Rider FXDL 1450

2005 Harley Davidson Softail Deuce FXSTD 1450

2005 Harley Davidson Softail Deuce EFI FXSTDI 1450

2005 Harley Davidson Heritage Softail Classic FLSTC 1450

2005 Harley Davidson Heritage Softail Classic EFI FLSTCI 1450

2005 Harley Davidson Softail Springer EFI FXSTSI 1450

2005 Harley Davidson Softail Deluxe EFI FLSTNI 1450

2005 Harley Davidson Softail Deluxe FLSTN 1450

2005 Harley Davidson Softail Springer Classic EFI FLSTSCI 1450

2005 Harley Davidson Dyna Super Glide Sport EFI FXDXI 1450

2005 Harley Davidson Dyna Super Glide Sport FXDX 1450

2005 Harley Davidson Screamin Eagle Fat Boy 1690

2005 Harley Davidson Night Train FXSTB 1450

2005 Harley Davidson Dyna Low Rider EFI FXDLI 1450

2004 Harley Davidson Dyna Super Glide 1450

2004 Harley Davidson Dyna Wide Glide 1450

2004 Harley Davidson Fat Boy 1450

2004 Harley Davidson Softail Standard FXST 1450

2004 Harley Davidson Softail Standard EFI FXSTI 1450

2004 Harley Davidson Softail Springer FXSTS 1450

2004 Harley Davidson Softail Night Train EFI FXSTBI 1450

2004 Harley Davidson Dyna Low Rider FXDL 1450

2004 Harley Davidson Softail Deuce FXSTD 1450

2004 Harley Davidson Softail Deuce EFI FXSTDI 1450

2004 Harley Davidson Heritage Softail Classic FLSTC 1450

2004 Harley Davidson Heritage Softail Classic EFI FLSTCI 1450

2004 Harley Davidson Softail Springer EFI FXSTSI 1450

2004 Harley Davidson Dyna Super Glide Sport EFI FXDXI 1450

2004 Harley Davidson Dyna Super Glide Sport FXDX 1450

2004 Harley Davidson Night Train FXSTB 1450

2004 Harley Davidson Screamin Eagle Softail Deuce 1584

2004 Harley Davidson Dyna Low Rider EFI FXDLI 1450

2003 Harley Davidson Fat Boy 1450

2003 Harley Davidson Softail Standard FXST 1450

2003 Harley Davidson Softail Standard EFI FXSTI 1450

2003 Harley Davidson Softail Springer FXSTS 1450

2003 Harley Davidson Softail Night Train EFI FXSTBI 1450

2003 Harley Davidson Softail Deuce FXSTD 1450

2003 Harley Davidson Softail Deuce EFI FXSTDI 1450

2003 Harley Davidson Heritage Softail Classic FLSTC 1450

2003 Harley Davidson Heritage Softail Classic EFI FLSTCI 1450

2003 Harley Davidson Softail Springer EFI FXSTSI 1450

2003 Harley Davidson Heritage Springer FLSTS 1450

2003 Harley Davidson Heritage Springer EFI FLSTSI 1450

2003 Harley Davidson Night Train FXSTB 1450

2003 Harley Davidson Screamin Eagle Softail Deuce 1584

2002 Harley Davidson Fat Boy 1450

2002 Harley Davidson Softail Standard FXST 1450

2002 Harley Davidson Softail Standard EFI FXSTI 1450

2002 Harley Davidson Softail Springer FXSTS 1450

2002 Harley Davidson Softail Night Train EFI FXSTBI 1450

2002 Harley Davidson Softail Deuce FXSTD 1450

2002 Harley Davidson Softail Deuce EFI FXSTDI 1450

2002 Harley Davidson Heritage Softail Classic FLSTC 1450

2002 Harley Davidson Heritage Softail Classic EFI FLSTCI 1450

2002 Harley Davidson Softail Springer EFI FXSTSI 1450

2002 Harley Davidson Heritage Springer FLSTS 1450

2002 Harley Davidson Heritage Springer EFI FLSTSI 1450

2002 Harley Davidson Night Train FXSTB 1450

2001 Harley Davidson Fat Boy 1450

2001 Harley Davidson Softail Standard FXST 1450

2001 Harley Davidson Softail Standard EFI FXSTI 1450

2001 Harley Davidson Softail Springer FXSTS 1450

2001 Harley Davidson Softail Night Train EFI FXSTBI 1450

2001 Harley Davidson Softail Deuce FXSTD 1450

2001 Harley Davidson Softail Deuce EFI FXSTDI 1450

2001 Harley Davidson Heritage Softail Classic FLSTC 1450

2001 Harley Davidson Heritage Softail Classic EFI FLSTCI 1450

2001 Harley Davidson Softail Springer EFI FXSTSI 1450

2001 Harley Davidson Heritage Springer FLSTS 1450

2001 Harley Davidson Heritage Springer EFI FLSTSI 1450

2001 Harley Davidson Night Train FXSTB 1450

OEM 30017-01A

30017-01

30017-01B

Dimensions:

Interior diameter: 71 mm

Exterior diameter: 134 mm

Thickness: 16 mm

Length of wires stator to grommet: 40 mm

Length of wires grommet to plug: 140 mm

Other specifications:

Number of wires: 3

Number of plugs: 1

Number of pins: 3

Number of poles: 18

Wire to wire resistance:

Alternator: Black to Black = 0.6 ohms +/-20%

Alternator: Black to ground = O.L
