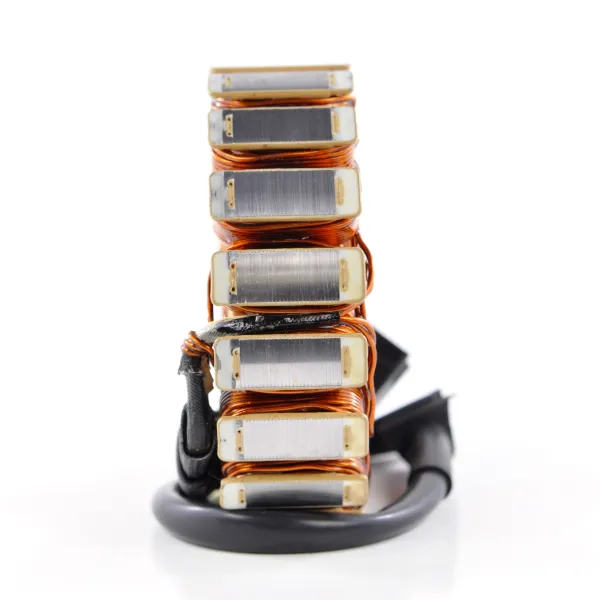

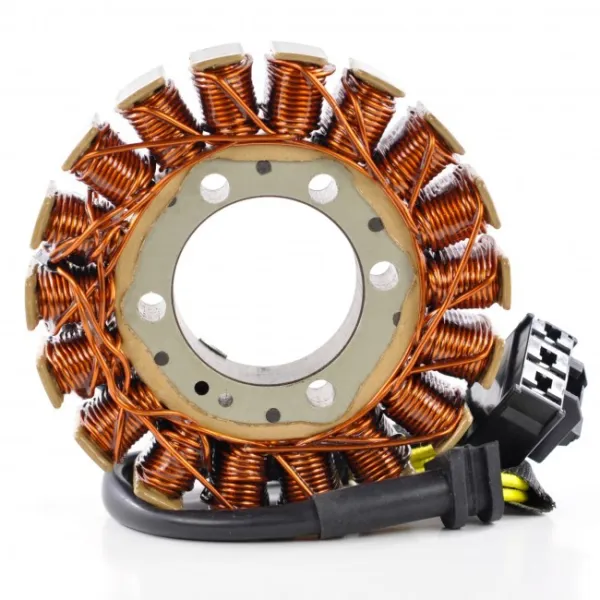

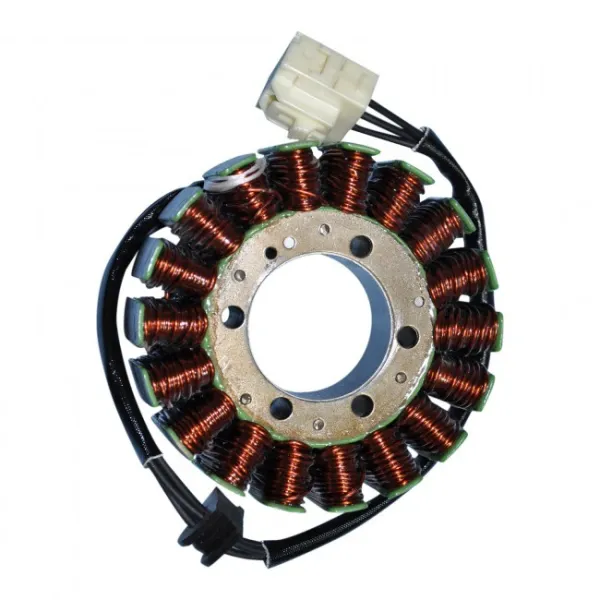

Stator-Honda-CBR600 F4i

Stator Honda CBR600 F4i

OEM 31120-MBW-J21

2001 Honda CBR 600 F4i
2002 Honda CBR 600 F4i
2003 Honda CBR 600 F4i
2004 Honda CBR 600 F4i
2005 Honda CBR 600 F4i
2006 Honda CBR 600 F4i

Resistant to 200 degrees Celsius

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 108 mm
Thickness : 24 mm
Length of wires stator to grommet : 120 mm
Length of wires grommet to plug : 135 mm

Other specifications :
Number of wires : 3

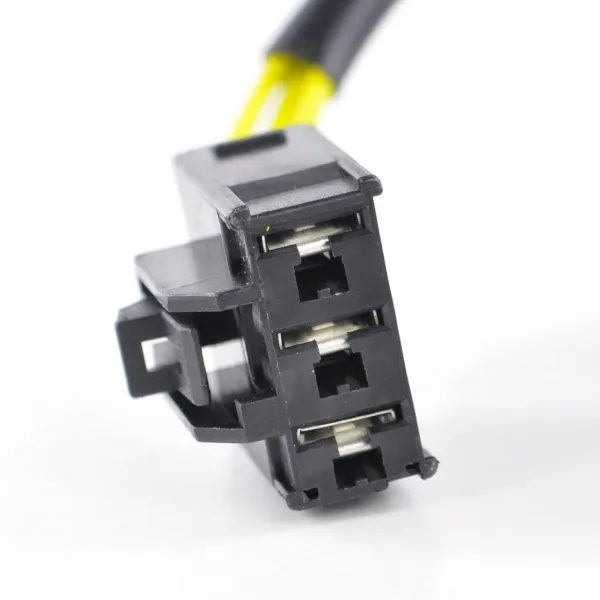

Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Yellow to Yellow = 0.5 ohms +-20%
