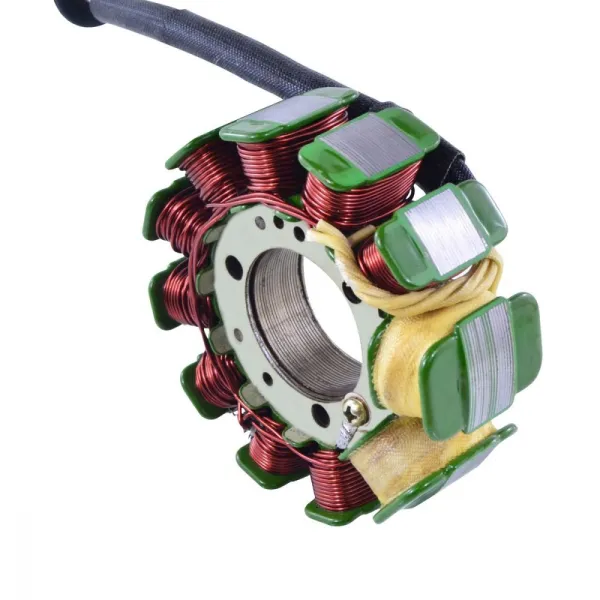

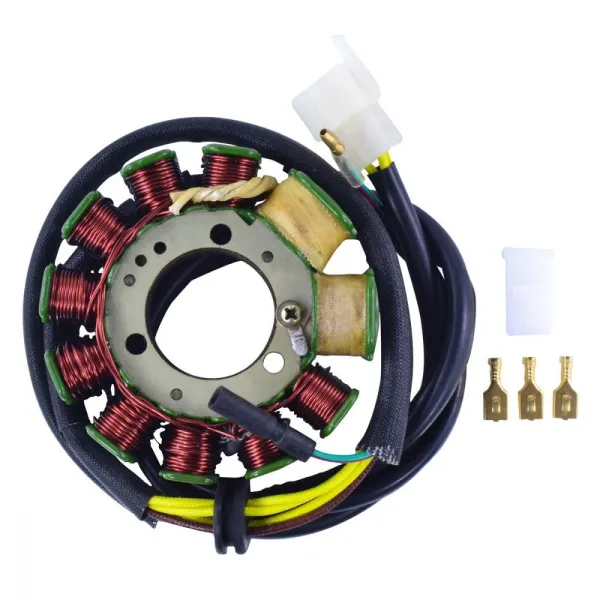

Stator Honda CMX250 Rebel CB250 Nighthawk OEM 31120-KBG-004

Stator

2008 Honda CB 250 Nighthawk
2007 Honda CB 250 Nighthawk
2006 Honda CB 250 Nighthawk
2005 Honda CB 250 Nighthawk
2004 Honda CB 250 Nighthawk
2003 Honda CB 250 Nighthawk
2002 Honda CB 250 Nighthawk
2001 Honda CB 250 Nighthawk
2000 Honda CB 250 Nighthawk
1999 Honda CB 250 Nighthawk
1997 Honda CB 250 Nighthawk
1996 Honda CB 250 Nighthawk
1995 Honda CB 250 Nighthawk
1994 Honda CB 250 Nighthawk
1993 Honda CB 250 Nighthawk
1992 Honda CB 250 Nighthawk
1991 Honda CB 250 Nighthawk

OEM 31120-KBG-004

Dimensions :
Interior diameter : 35 mm
Exterior diameter : 93 mm
Thickness : 18 mm
Length of wires stator to grommet : 120 mm
Length of wires grommet to plug : 760 mm

Other specifications :
Number of wires : 6
Number of plugs : 4
Number of pins : 6

Wire to wire resistance :
Alternator : Between Each Yellow = 0.4 ohms +-20%
Source : Black/Red to Ground = 200 ohms +-20%
