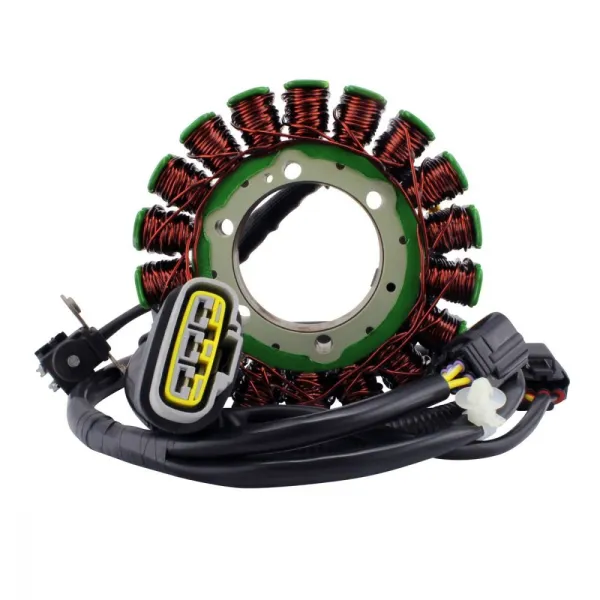

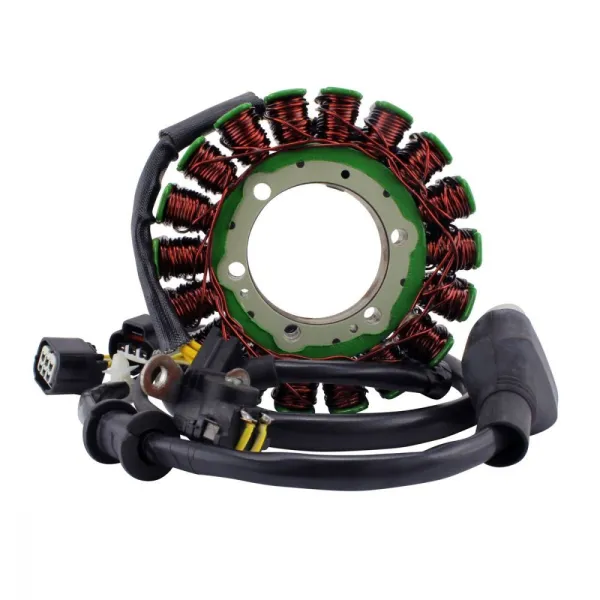

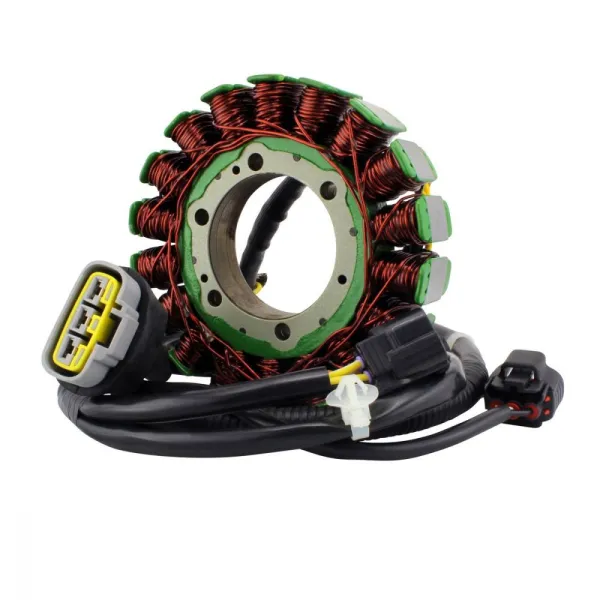

Stator Honda CRF1000 Africa Twin OEM 31120-MJP-G81

2019 Honda CRF 1000 Africa Twin (Automatic)

2018 Honda CRF 1000 Africa Twin (Automatic)

2017 Honda CRF 1000 Africa Twin (Automatic)

2016 Honda CRF 1000 Africa Twin (Automatic)

OEM 31120-MJP-G81

Dimensions:
Interior diameter: 54 mm
Exterior diameter: 126 mm

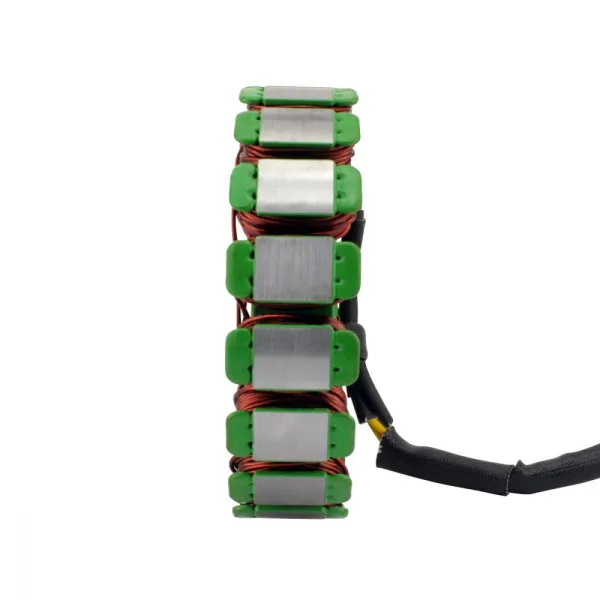

Thickness: 20 mm
Length of wires stator to grommet: 170 mm
Length of wires grommet to plug: 245, 625, 985 mm

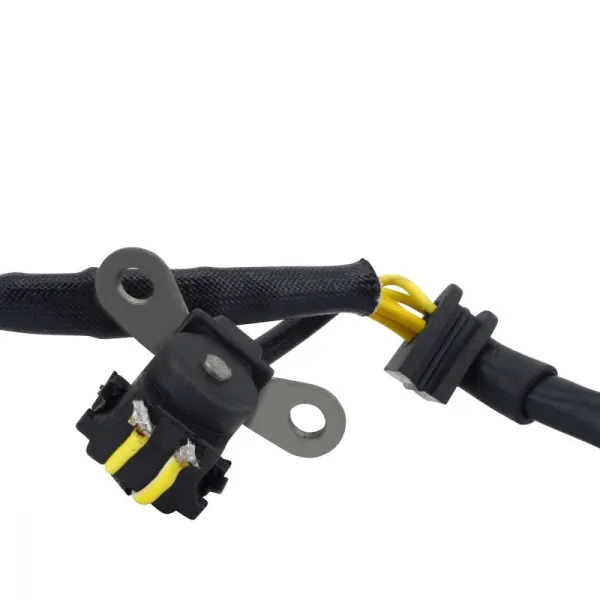

Length of pickup coil's wire to grommet: 80 mm

Other specifications:
Number of wires: 12

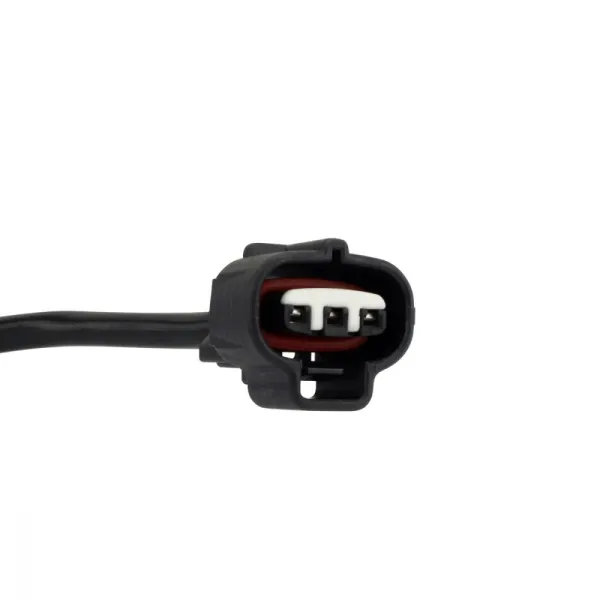

Number of plugs: 3
Number of pins: 12
Number of poles: 18
Wire to wire resistance:
Alternator: =0.4 ohms +-20%

Resistant to 200 degrees Celsius
