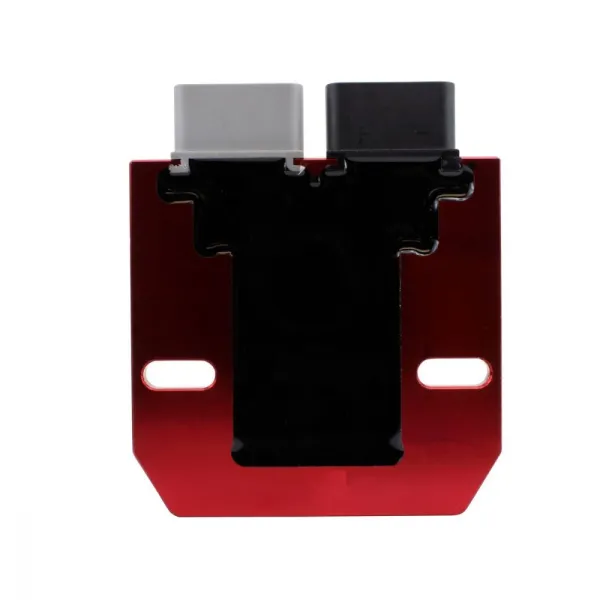

Regulator Rectifier Mosfet Lithium-Ion Batteries Honda

2022 Honda TRX 680 Rincon
2021 Honda TRX 680 Rincon
2021 Honda CBR 600 RR
2021 Honda CBR 600 RA
2020 Honda TRX 680 Rincon
2020 Honda SXS 700 Pioneer
2020 Honda SXS 500 Pioneer
2020 Honda CBR 600 RR
2020 Honda CBR 600 RA
2019 Honda TRX 680 Rincon
2019 Honda TRX 500 Fourtrax Foreman Rubicon FA
2019 Honda TRX 500 Fourtrax Foreman FM
2019 Honda TRX 500 Fourtrax Foreman FE
2019 Honda TRX 420 Rancher TM
2019 Honda TRX 420 Rancher FM
2019 Honda TRX 420 Rancher FE
2019 Honda TRX 420 Rancher FA6
2019 Honda TRX 420 Rancher FA5
2019 Honda TRX 420 Rancher FA2
2019 Honda SXS 700 Pioneer
2019 Honda SXS 500 Pioneer
2019 Honda CRF 1000 Africa Twin
2019 Honda CMX 500 Rebel
2019 Honda CBR 600 RR
2018 Honda TRX 680 Rincon
2018 Honda TRX 500 Fourtrax Foreman Rubicon FA
2018 Honda TRX 500 Fourtrax Foreman FM
2018 Honda TRX 500 Fourtrax Foreman FE
2018 Honda TRX 420 Rancher TM
2018 Honda TRX 420 Rancher FM
2018 Honda TRX 420 Rancher FE
2018 Honda TRX 420 Rancher FA6
2018 Honda TRX 420 Rancher FA5
2018 Honda TRX 420 Rancher FA2
2018 Honda SXS 700 Pioneer
2018 Honda SXS 500 Pioneer
2018 Honda CTX 700
2018 Honda CRF 1000 Africa Twin
2018 Honda CMX 500 Rebel
2018 Honda CBR 650 F
2018 Honda CBR 600 RR
2018 Honda CBR 500 R
2017 Honda TRX 680 Rincon
2017 Honda TRX 500 Fourtrax Foreman Rubicon FA
2017 Honda TRX 500 Fourtrax Foreman FM
2017 Honda TRX 500 Fourtrax Foreman FE
2017 Honda TRX 420 Rancher TM
2017 Honda TRX 420 Rancher FM
2017 Honda TRX 420 Rancher FE
2017 Honda TRX 420 Rancher FA6
2017 Honda TRX 420 Rancher FA5
2017 Honda TRX 420 Rancher FA2
2017 Honda SXS 700 Pioneer
2017 Honda SXS 500 Pioneer
2017 Honda NC 700 NM4 ABS EFI F/C
2017 Honda CTX 700
2017 Honda CRF 1000 Africa Twin
2017 Honda CMX 500 Rebel
2017 Honda CBR 600 RR
2017 Honda CBR 500 R
2017 Honda CB 500 X
2017 Honda CB 500 F
2017 Honda CB 1100
2016 Honda TRX 680 Rincon
2016 Honda TRX 500 Fourtrax Foreman Rubicon FA
2016 Honda TRX 500 Fourtrax Foreman FM
2016 Honda TRX 500 Fourtrax Foreman FE
2016 Honda TRX 420 Rancher TM
2016 Honda TRX 420 Rancher TE
2016 Honda TRX 420 Rancher FM
2016 Honda TRX 420 Rancher FE
2016 Honda TRX 420 Rancher FA6
2016 Honda TRX 420 Rancher FA5
2016 Honda TRX 420 Rancher FA2
2016 Honda TRX 420 Rancher FA1
2016 Honda SXS 700 Pioneer
2016 Honda SXS 500 Pioneer
2016 Honda NC 700 NM4 ABS EFI F/C
2016 Honda CTX 700
2016 Honda CRF 1000 Africa Twin
2016 Honda CBR 650 F
2016 Honda CBR 600 RR
2016 Honda CBR 500 R
2016 Honda CB 500 X
2016 Honda CB 500 F
2016 Honda CB 1100
2015 Honda TRX 680 Rincon
2015 Honda TRX 500 Fourtrax Foreman Rubicon FA
2015 Honda TRX 500 Fourtrax Foreman FM
2015 Honda TRX 500 Fourtrax Foreman FE
2015 Honda TRX 420 Rancher TM
2015 Honda TRX 420 Rancher TE
2015 Honda TRX 420 Rancher FM
2015 Honda TRX 420 Rancher FE
2015 Honda TRX 420 Rancher FA6
2015 Honda TRX 420 Rancher FA5
2015 Honda TRX 420 Rancher FA2
2015 Honda TRX 420 Rancher FA1
2015 Honda SXS 700 Pioneer
2015 Honda SXS 500 Pioneer
2015 Honda NC 700 NM4 ABS EFI F/C
2015 Honda CTX 700
2015 Honda CBR 650 F
2015 Honda CBR 600 RR
2015 Honda CBR 500 R
2015 Honda CB 500 X
2015 Honda CB 500 F
2015 Honda CB 1100
2014 Honda TRX 680 Rincon
2014 Honda TRX 500 Fourtrax Foreman Rubicon FPA
2014 Honda TRX 500 Fourtrax Foreman Rubicon FA
2014 Honda TRX 500 Fourtrax Foreman FM
2014 Honda TRX 500 Fourtrax Foreman FE
2014 Honda TRX 420 Rancher TM
2014 Honda TRX 420 Rancher TE
2014 Honda TRX 420 Rancher FM
2014 Honda TRX 420 Rancher FE
2014 Honda TRX 420 Rancher FA2
2014 Honda TRX 420 Rancher FA1
2014 Honda SXS 700 Pioneer
2014 Honda CTX 700
2014 Honda CBR 650 F
2014 Honda CBR 600 RR
2014 Honda CBR 500 R
2014 Honda CB 500 X
2014 Honda CB 500 F
2014 Honda CB 1100
2013 Honda TRX 680 Rincon
2013 Honda TRX 500 Fourtrax Foreman Rubicon FPA
2013 Honda TRX 500 Fourtrax Foreman Rubicon FA
2013 Honda TRX 500 Fourtrax Foreman FPM EPS
2013 Honda TRX 500 Fourtrax Foreman FPE EPS
2013 Honda TRX 500 Fourtrax Foreman FM
2013 Honda TRX 500 Fourtrax Foreman FE
2013 Honda CBR 600 RR
2013 Honda CBR 500 R
2013 Honda CB 500 X
2013 Honda CB 500 F
2013 Honda CB 1100
2012 Honda TRX 680 Rincon
2012 Honda TRX 500 Fourtrax Foreman Rubicon FPA
2012 Honda TRX 500 Fourtrax Foreman Rubicon FA
2012 Honda TRX 500 Fourtrax Foreman FPM EPS
2012 Honda TRX 500 Fourtrax Foreman FPE EPS
2012 Honda TRX 500 Fourtrax Foreman FM
2012 Honda TRX 500 Fourtrax Foreman FE
2011 Honda TRX 680 Rincon
2011 Honda TRX 500 Fourtrax Foreman Rubicon FPA
2011 Honda TRX 500 Fourtrax Foreman Rubicon FA
2011 Honda TRX 500 Fourtrax Foreman FPM EPS
2011 Honda TRX 500 Fourtrax Foreman FPE EPS
2011 Honda TRX 500 Fourtrax Foreman FM
2011 Honda TRX 500 Fourtrax Foreman FE
2009 Honda TRX 680 Rincon
2009 Honda TRX 500 Fourtrax Foreman Rubicon FPA
2009 Honda TRX 500 Fourtrax Foreman Rubicon FA
2009 Honda TRX 500 Fourtrax Foreman FPM EPS
2009 Honda TRX 500 Fourtrax Foreman FPE EPS
2009 Honda TRX 500 Fourtrax Foreman FM
2009 Honda TRX 500 Fourtrax Foreman FE
2008 Honda TRX 680 Rincon
2008 Honda TRX 500 Fourtrax Foreman Rubicon FGA
2008 Honda TRX 500 Fourtrax Foreman Rubicon FA
2008 Honda TRX 500 Fourtrax Foreman FPM EPS
2008 Honda TRX 500 Fourtrax Foreman FPE EPS
2008 Honda TRX 500 Fourtrax Foreman FM
2008 Honda TRX 500 Fourtrax Foreman FE
2007 Honda TRX 680 Rincon
2007 Honda TRX 500 Fourtrax Foreman Rubicon FGA
2007 Honda TRX 500 Fourtrax Foreman Rubicon FA
2007 Honda TRX 500 Fourtrax Foreman FPE EPS
2007 Honda TRX 500 Fourtrax Foreman FM
2007 Honda TRX 500 Fourtrax Foreman FE
2006 Honda TRX 680 Rincon
2006 Honda TRX 500 Fourtrax Foreman TM
2006 Honda TRX 500 Fourtrax Foreman Rubicon FGA
2006 Honda TRX 500 Fourtrax Foreman Rubicon FA
2006 Honda TRX 500 Fourtrax Foreman FM
2006 Honda TRX 500 Fourtrax Foreman FE
2005 Honda TRX 650 Rincon
2005 Honda TRX 500 Fourtrax Foreman TM
2005 Honda TRX 500 Fourtrax Foreman Rubicon FGA
2005 Honda TRX 500 Fourtrax Foreman Rubicon FA
2005 Honda TRX 500 Fourtrax Foreman FM
2005 Honda TRX 500 Fourtrax Foreman FE
2004 Honda TRX 650 Rincon
2003 Honda TRX 650 Rincon
2000 Honda TRX 300 FW Fourtrax
1999 Honda TRX 300 FW Fourtrax
1998 Honda TRX 300 FW Fourtrax
1994 Honda TRX 300 FW Fourtrax
1993 Honda TRX 300 FW Fourtrax
1997 Honda TRX 300 FW Fourtrax
1996 Honda TRX 300 FW Fourtrax
1995 Honda TRX 300 FW Fourtrax

Dimensions:
Width: 103 mm
Length: 103 mm
Height: 28 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.0 V ± 0.2 V DC
Maximum Charging Current: 50 A / 500 W
Operation Temperature: -20⁰ to 85⁰

It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

Improved heat sink and charging capabilities

Before installing your new voltage regulator rectifier:
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
Brand new Mosfet voltage regulator rectifier
WORKS WITH LITHIUM BATTERIES ONLY
STOP BURNING YOUR REGULATOR RECTIFIER!
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
The quality exceeds the OEM equipment
Higher grade of electric components.
All shipped products are tested. All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
*All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.
Why do you need a different voltage regulator for lithium batteries?
Lithium batteries have different charging requirements than Lead Acid or AGM batteries that can severely affect their lifespan and performance. The key factors in safe and reliable lithium battery charging are the output DC voltage ripple and average output voltage. The regulator is designed around the optimal parameters for these factors.
The ripple effect is all that matters
Charging voltage ripple in a powersports application is the difference between the highest and lowest voltages from the voltage regulator output. By nature, a common shunt style voltage regulator will have a fairly high voltage ripple due to the regulation shunt switches opening and closing frequently. Each on/off transition will cause some variation in the output voltage, this is unavoidable. Keeping this to minimum is critical for Lithium batteries, and the RMSTATOR Lithium regulator is designed around this feature.
In a perfect world, a ripple of less than 10% of the output voltage (~1.5V for a typical regulator), would be ideal, however is not practical for this type of regulator. The Lithium regulator is able to maintain a less than 4 Volts output ripple, compared to verified test results of our competitors 8 volts. Keep in mind this ripple voltage is only seen via an Oscilloscope sampling the voltage 1000’s of times a second, and is not the same as your average charging voltage as measured by a multimeter.
PLEASE NOTE : This universal voltage regulator is ONLY for lithium batteries THIS IS NOT FOR LEAD ACID BATTERIES. Output Voltage is the key factor in a voltage regulator designed specifically for Lithium batteries. The ideal charging voltage for Lithium batteries is 13.9-14.2VDC. The RMSTATOR regulator has a carefully set output voltage of 14.1VDC (+/- 0.1VDC). This stable and ideal output voltage carefully keeps a lithium battery in it’s ideal charging range.
Please contact the manufacturer of your Lithium Ion Battery to ensure our product has the correct set point for their product
Protect your investment in an expensive lithium battery with our lithium battery voltage regulator!
