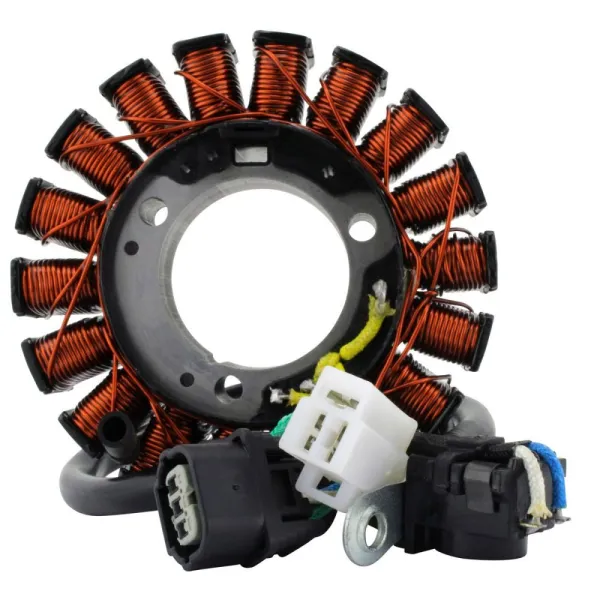

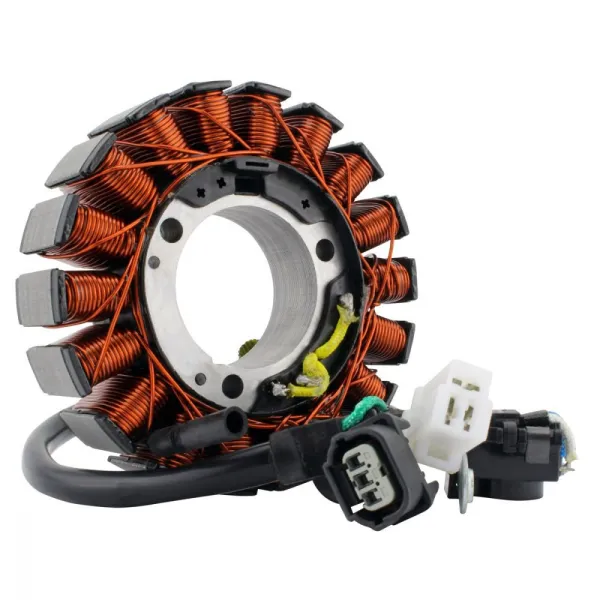

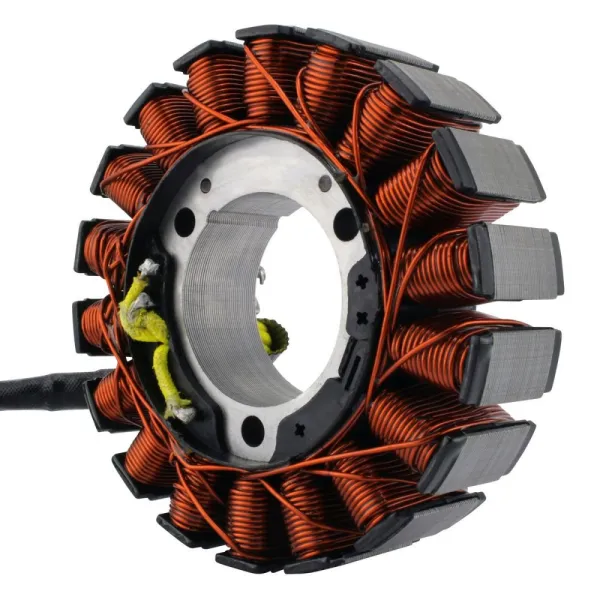

Stator Honda CRF250R CRF250L OEM 31120-KZZ-901

2020 Honda CRF 250 R
2020 Honda CRF 250 L
2019 Honda CRF 250 R
2019 Honda CRF 250 L
2018 Honda CRF 250 R
2018 Honda CRF 250 L
2017 Honda CRF 250 R
2017 Honda CRF 250 L
2016 Honda CRF 250 L
2015 Honda CRF 250 L
2014 Honda CRF 250 L
2013 Honda CRF 250 L

OEM 31120-KZZ-901

Dimensions:
Interior diameter: 42 mm
Exterior diameter: 107 mm

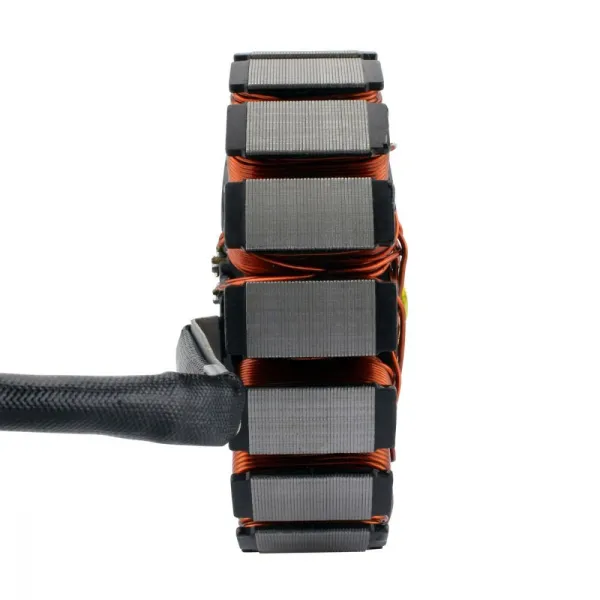

Thickness: 22 mm
Length of wires stator to grommet: 70 mm
Length of wires grommet to plug # 1: 310 mm
Length of wires grommet to plug # 2: 190 mm

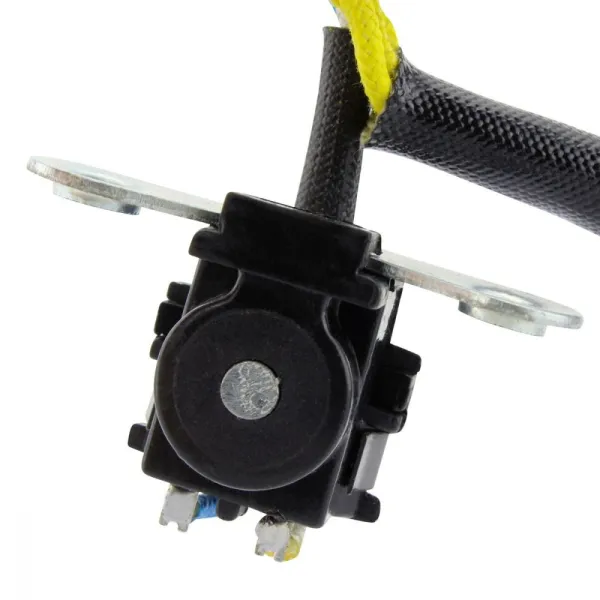

Length of pickup coil's wire to grommet: 40 mm

Other specifications:
Number of wires: 6

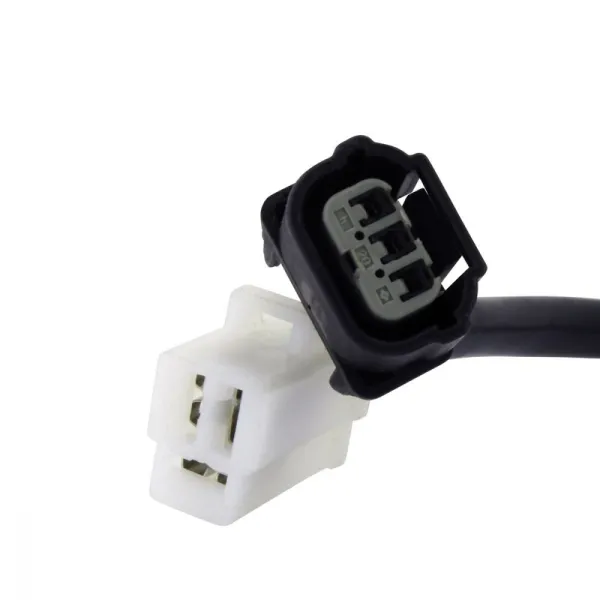

Number of plugs: 3
Number of pins: 6

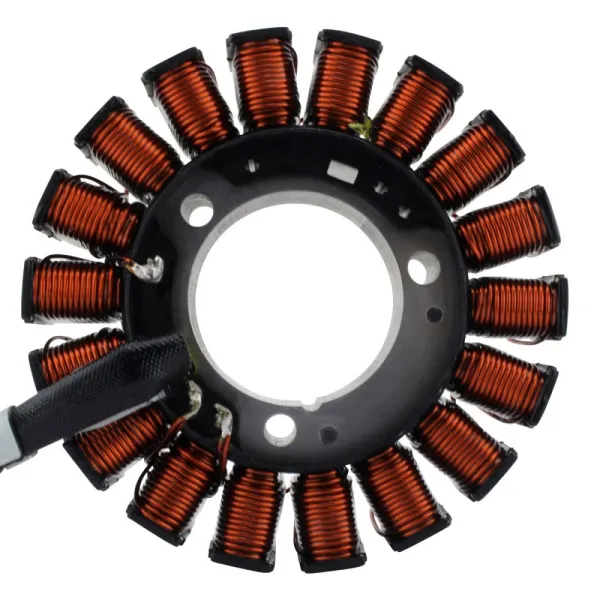

Number of poles: 18
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.7 ohms +-20%
Pickup: Bleu/Yellow to White/Yellow = 231 ohms +-20%
