40W AC to DC Lighting Stator Voltage Regulator Charging System Conversion Upgrade Honda CRF250X 2004-2009 2012-2017

2017 Honda CRF 250 X
2016 Honda CRF 250 X
2015 Honda CRF 250 X
2014 Honda CRF 250 X
2013 Honda CRF 250 X
2012 Honda CRF 250 X
2009 Honda CRF 250 X
2008 Honda CRF 250 X
2007 Honda CRF 250 X
2006 Honda CRF 250 X
2005 Honda CRF 250 X
2004 Honda CRF 250 X

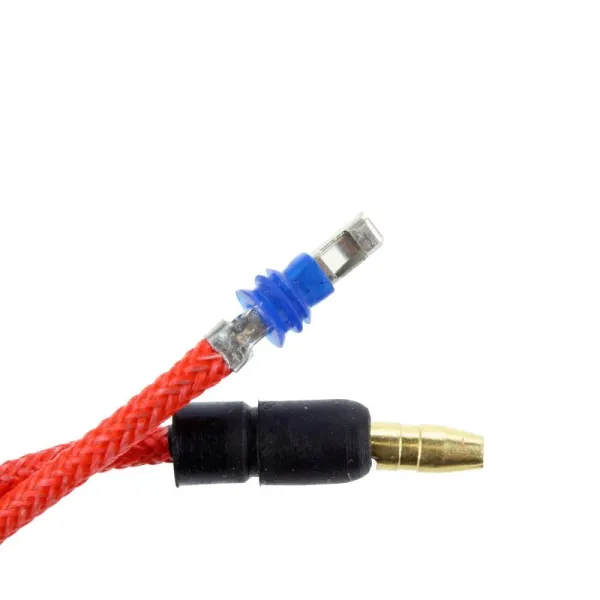

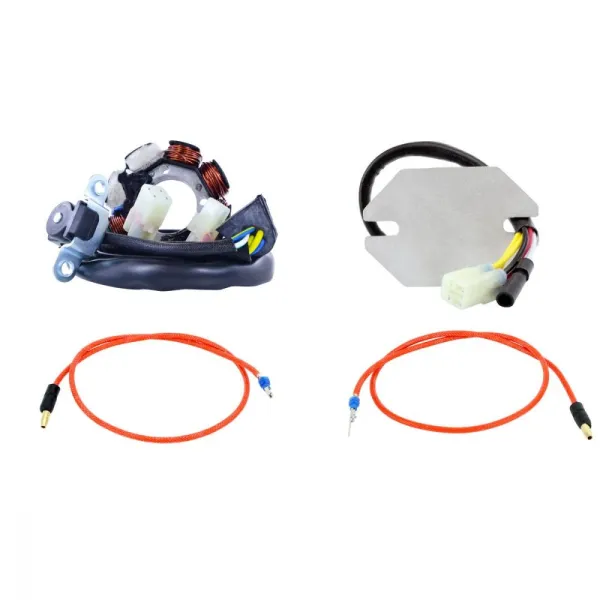

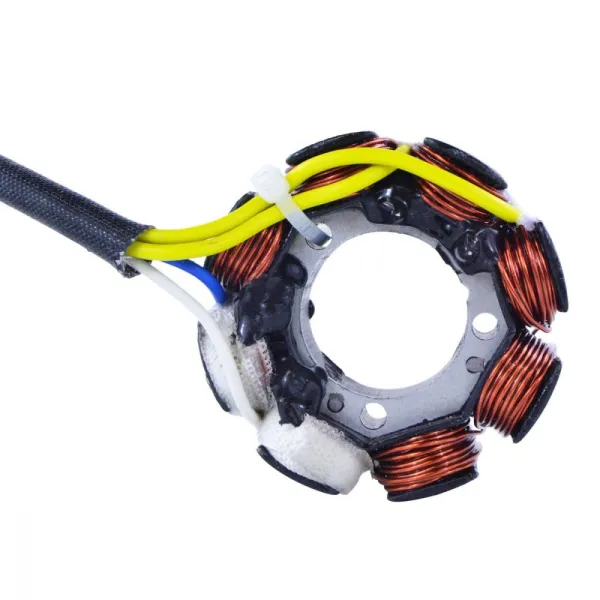

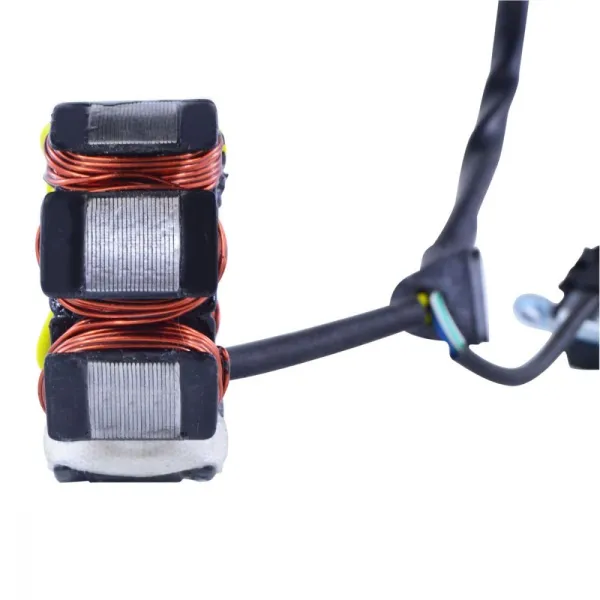

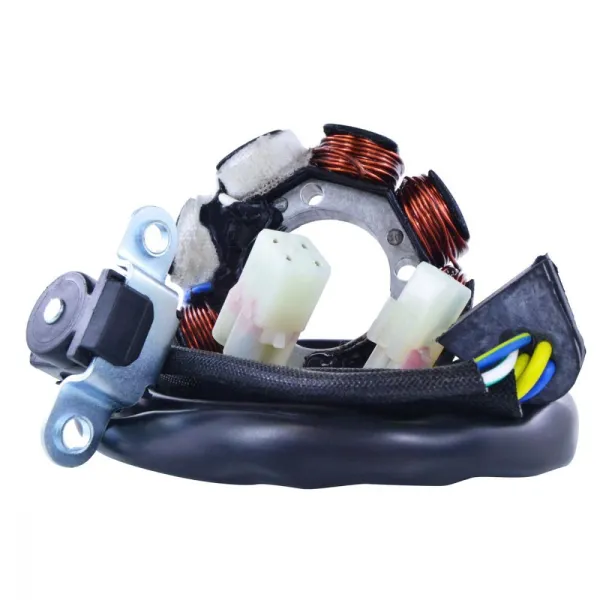

Stator

Dimensions :
Interior diameter : 28 mm
Exterior diameter : 61 mm
Thickness : 14 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 660 mm

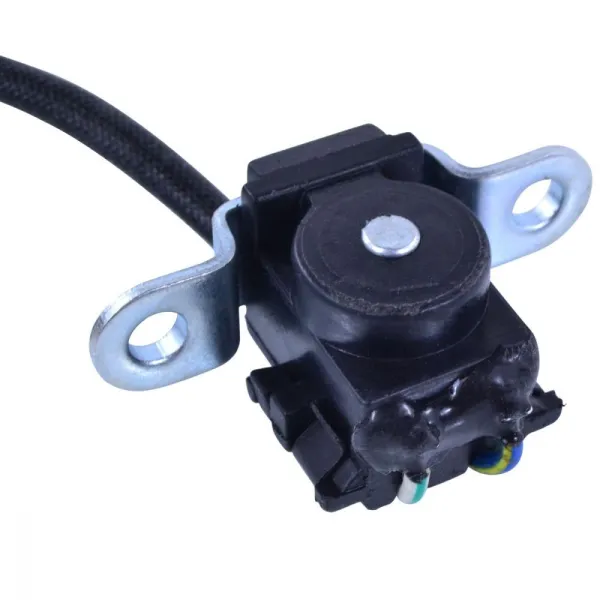

Length of pickup coil's wire to grommet : 65 mm

Other specifications :
Number of wires : 6
Number of plugs : 4
Number of pins : 6

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.5 ohms +-20%
Pickup : Blue/yellow to Green/White = 267 ohms +-20%
Source : Blue to White = 24 ohms +-20%

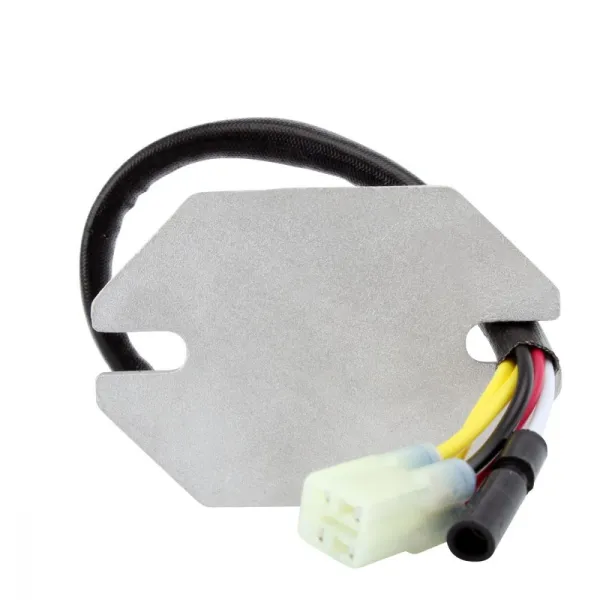

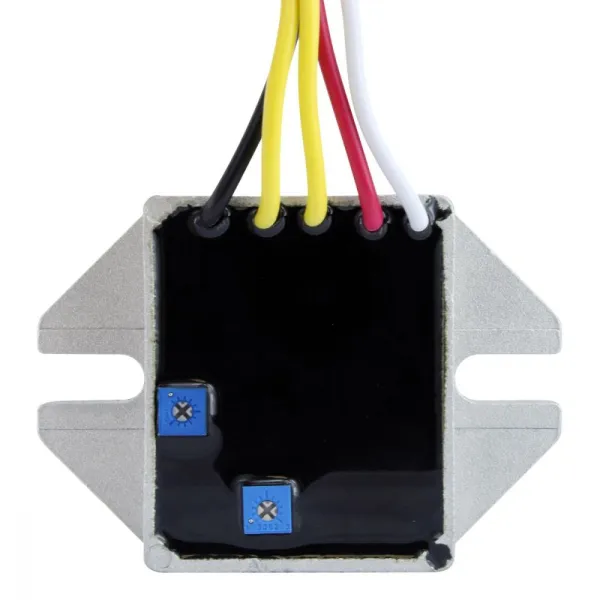

Voltage Regulator Rectifier

Dimensions:
Width: 44 mm
Length: 79 mm
Height: 22 mm
Wires length: 250 mm
Fixation holes center to center: 62 mm

Other specifications:
Number of wires: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: 15 V
Operation Temperature: -20⁰ to 85⁰
