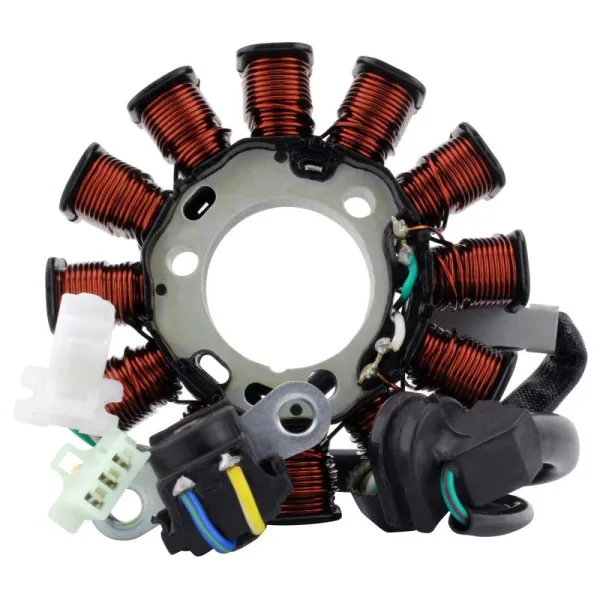

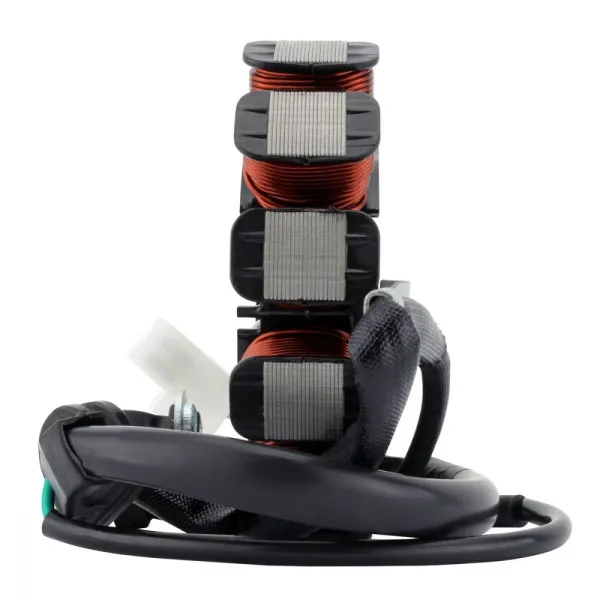

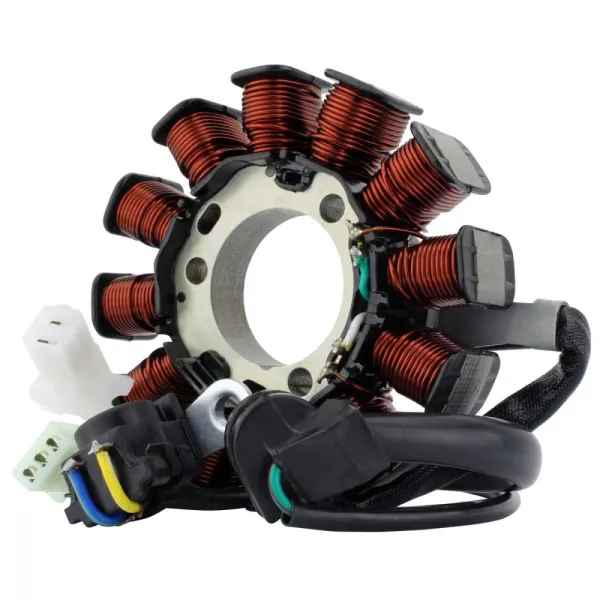

Stator Honda CRF250 F OEM 31120-K99-A01

Stator Resistant to 200°C

2019-2024 Honda CRF 250 F

OEM 31120-K99-A01

Dimensions:
Interior diameter: 35 mm
Exterior diameter: 98 mm
Thickness: 13 mm
Length of wires stator to grommet: 120 mm
Length of wires grommet to plug # 1: 185 mm
Length of wires grommet to plug # 2: 165 mm

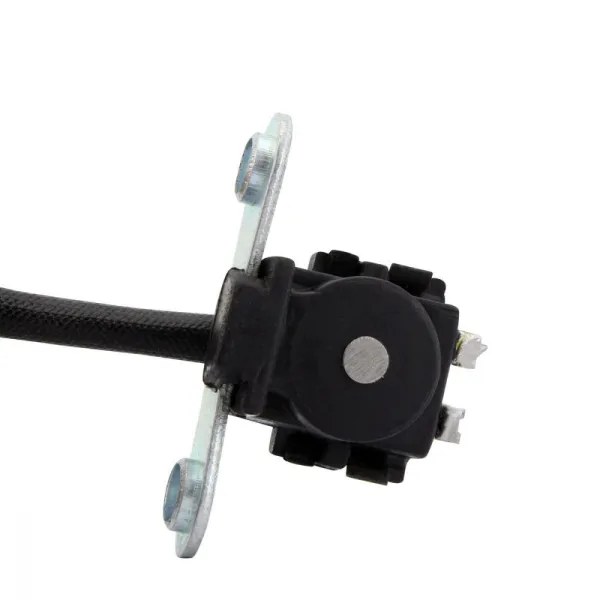

Length of pickup coil's wire to grommet: 130 mm

Other specifications:
Number of wires: 5

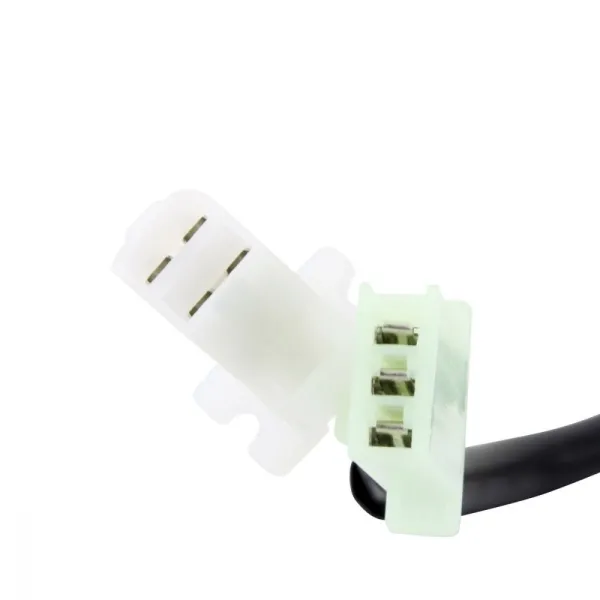

Number of plugs: 3
Number of pins: 5
Number of poles: 12
Wire to wire resistance:
Alternator: Yellow to Yellow = 1.1 ohms +-20%
Pickup: Bleu/Yellow to White/Yellow = 233 ohms +-20%
