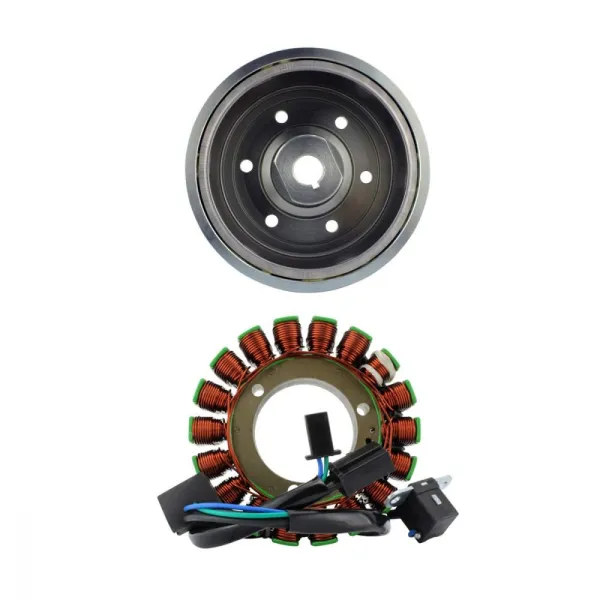

Rotor Stator Suzuki VStrom 1000 OEM 32102-06G10 32101-06G11

2012 Suzuki VStrom 1000
2009 Suzuki VStrom 1000
2008 Suzuki VStrom 1000
2007 Suzuki VStrom 1000
2006 Suzuki VStrom 1000
2005 Suzuki VStrom 1000
2004 Suzuki VStrom 1000
2003 Suzuki VStrom 1000
2002 Suzuki VStrom 1000

OEM 32102-06G10 32101-06G11

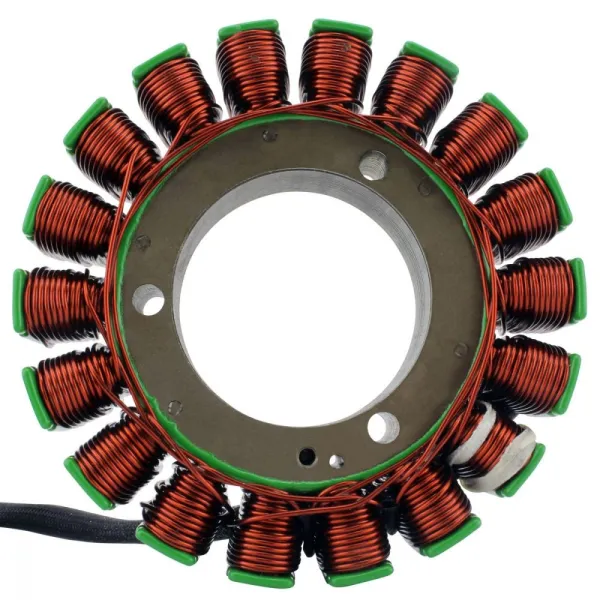

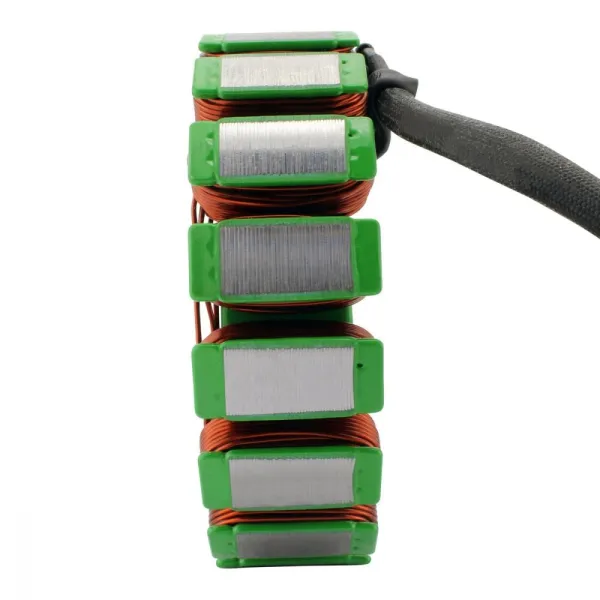

Stator

Dimensions :
Interior diameter : 54 mm
Exterior diameter : 119 mm
Thickness : 25 mm
Length of wires stator to grommet: 160 mm

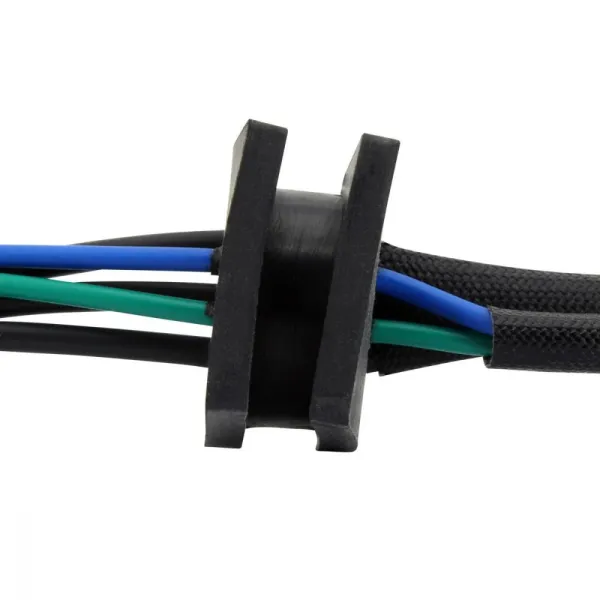

Length of wires grommet to plug: 430 mm

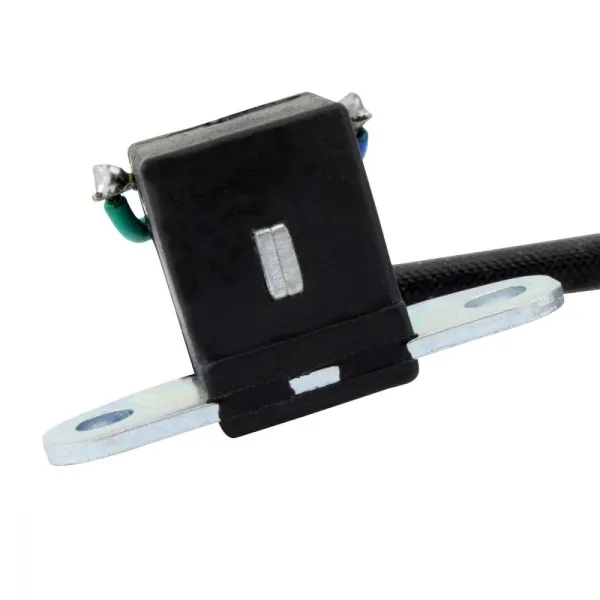

Length of pickup coil's wire to grommet: 150 mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: Black to Black = 0.6 ohms +-20%
Pickup: Blue to Green = 193 ohms +-20%

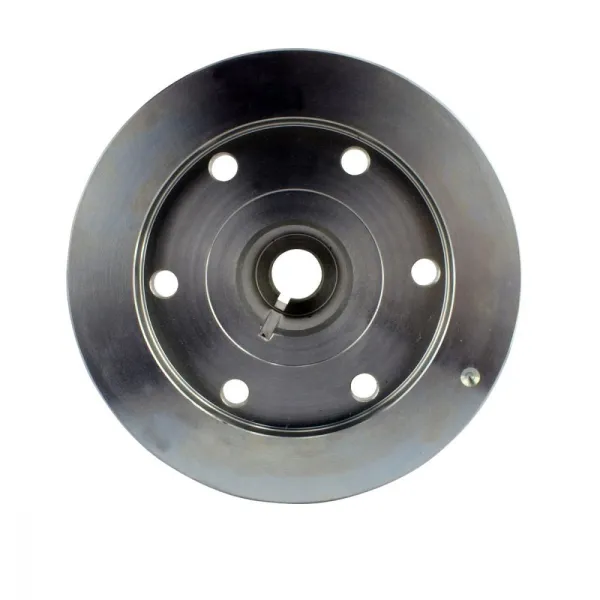

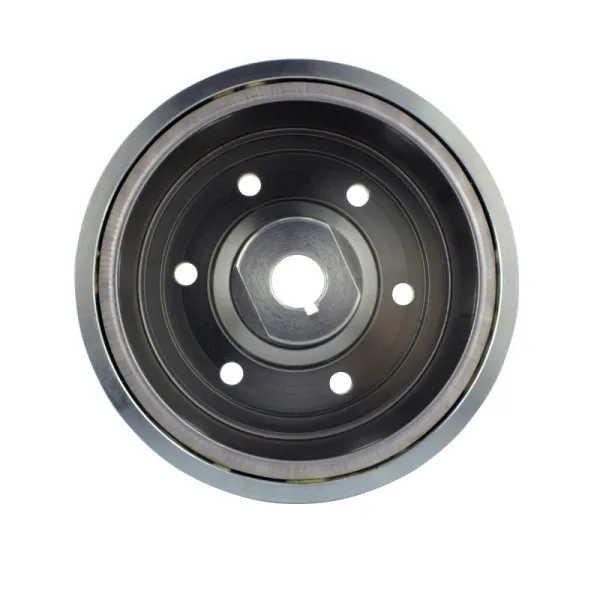

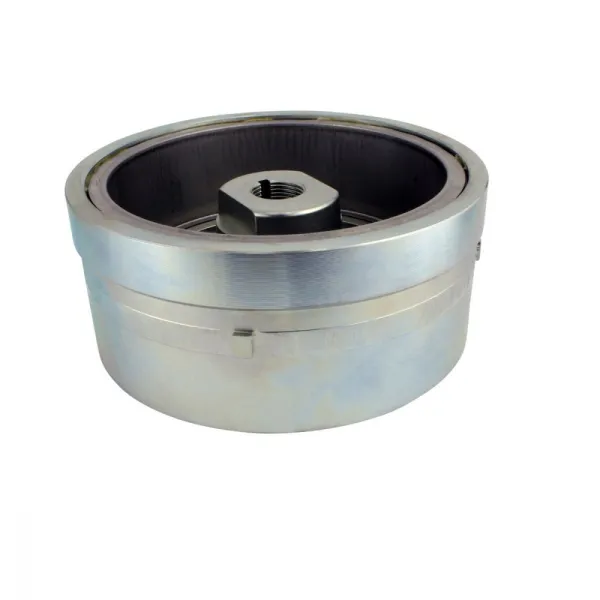

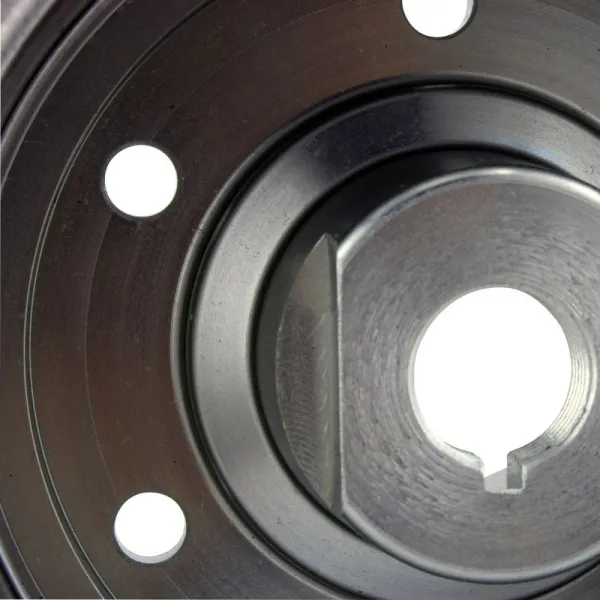

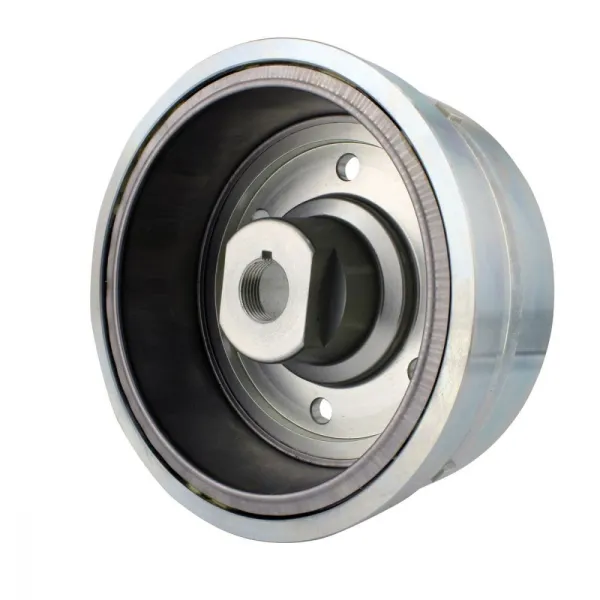

Flywheel

Dimensions:
Inner Diameter: 120 mm
Outer Diameter: 149 mm
Total Height: 65 mm
Inside Height: 46 mm
Center Housing Depth: 35 mm
Center Housing Widest: 35 mm
Center Housing Thickness: 26 mm
