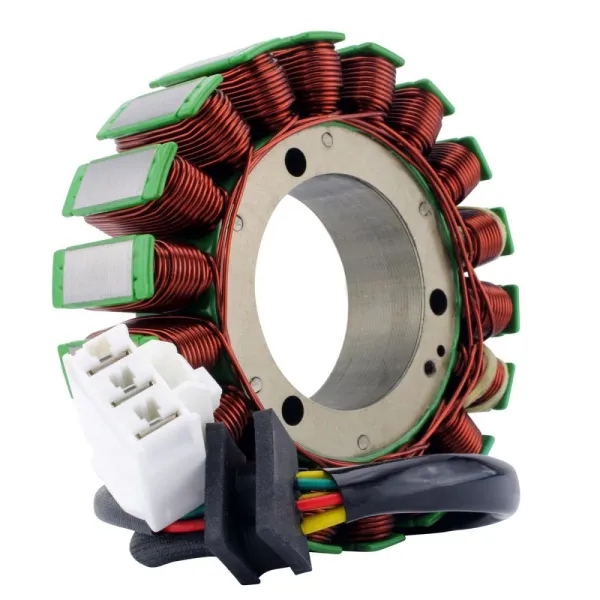

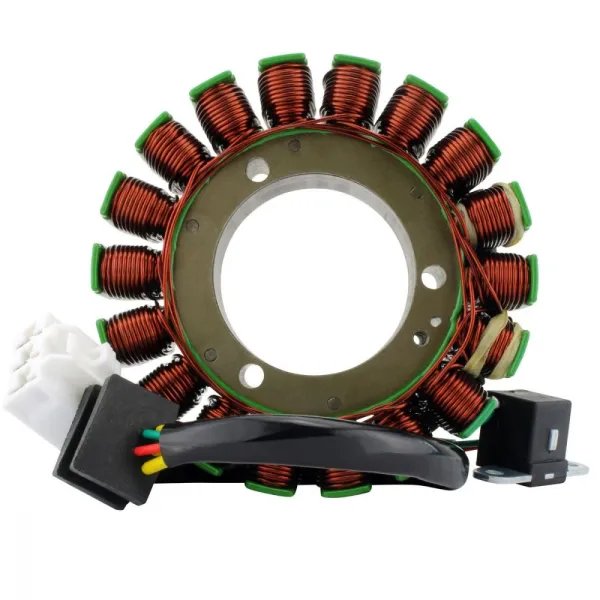

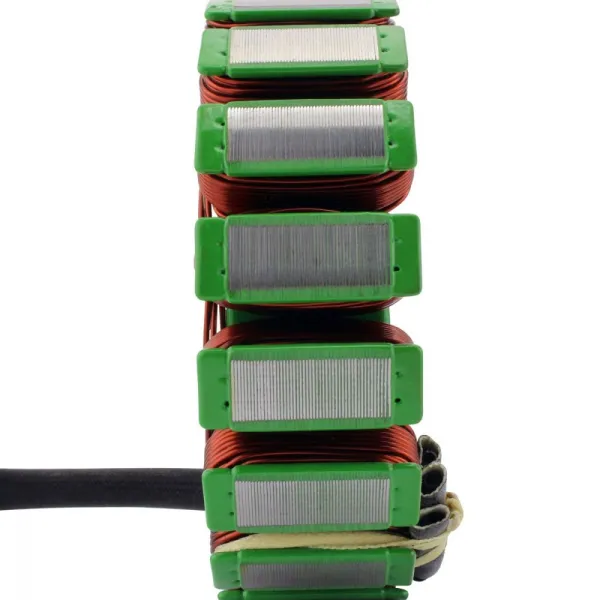

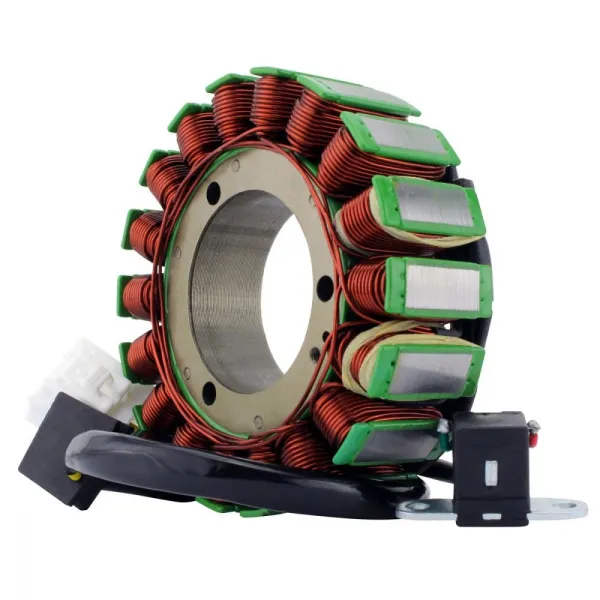

Stator Suzuki VStrom OEM 1050 32101-31J00 32101-06L00

Stator

2024 Suzuki V-Strom 1050

2023 Suzuki V-Strom 1050

2022 Suzuki V-Strom 1050

2020 Suzuki V-Strom 1050 XT

2020 Suzuki V-Strom 1050

OEM 32101-31J00 32101-06L00

Dimensions:
Interior diameter: 54 mm
Exterior diameter: 119 mm
Thickness: 26 mm
Length of wires stator to grommet: 170 mm
Length of wires grommet to plug: 270 mm

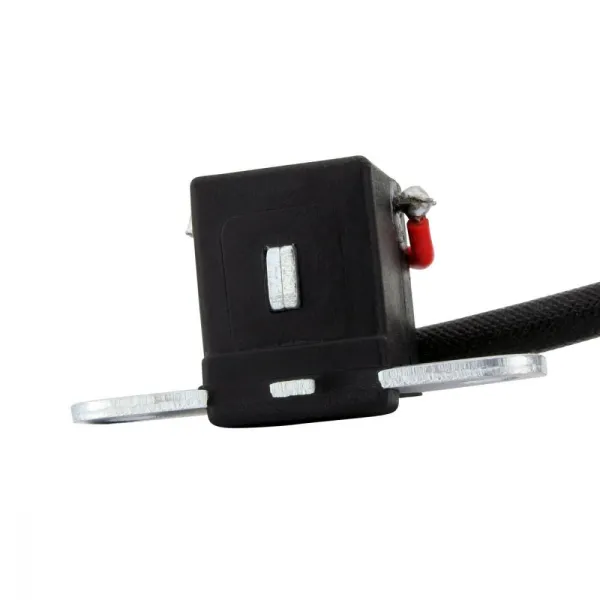

Length of pickup coil's wire to grommet: 150 mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.6 ohms +-20%
Alternator: Yellow to ground = O.L
Pickup: Green to Red = 192 ohms +-20%
