€197.00 Tax included

Stator Suzuki VStrom 650 OEM 32101-17G10 32101-17G11 32101-17G12

Reference
CARMS010-105036
7-8 Days (3 Items)

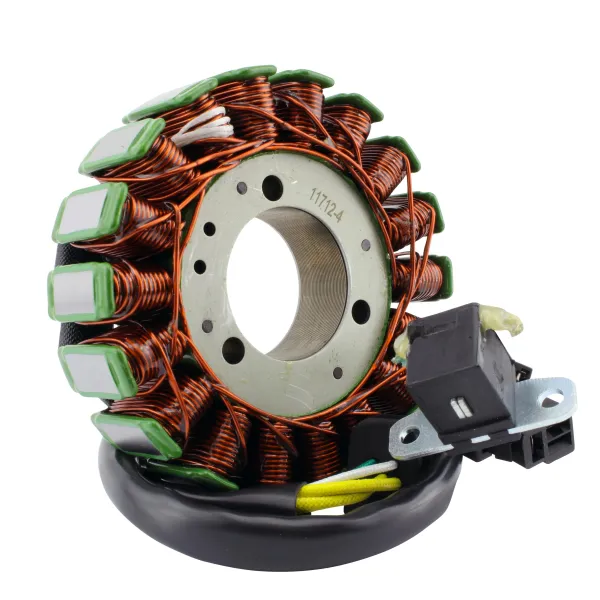

Stator

Stator Résistant à 200°C

2016 Suzuki VStrom 650
2015 Suzuki VStrom 650
2014 Suzuki VStrom 650
2013 Suzuki VStrom 650
2012 Suzuki VStrom 650
2011 Suzuki VStrom 650
2010 Suzuki VStrom 650
2009 Suzuki VStrom 650
2008 Suzuki VStrom 650
2007 Suzuki VStrom 650
OEM 32101-17G10
32101-17G11
32101-17G12

Dimensions :
Interior diameter : 38 mm
Exterior diameter : 108 mm
Thickness : 22 mm
Length of wires stator to grommet : 120 mm
Length of wires grommet to plug : 570 mm
Length of pickup coil's wire to grommet : 70 mm
Other specifications :
Number of wires : 5

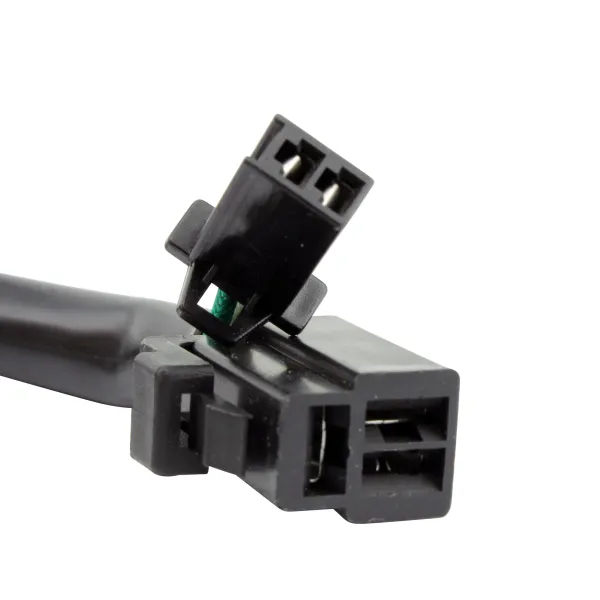

Number of plugs : 2
Number of pins : 5
Number of poles : 18
Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4 ohms +-20%
Pickup : Green to White = 200 ohms +-20%
Alternator to ground = O.L
