REVOLT Regulator Rectifier Suzuki VStrom 650 SV1000 SV650 OEM 32800-16G00 32800-16G01 32800-16G02

2010 Suzuki SV 650 S
2010 Suzuki SV 650
2009 Suzuki VStrom 650
2009 Suzuki SV 650 S
2009 Suzuki SV 650
2008 Suzuki VStrom 650
2008 Suzuki SV 650 S
2008 Suzuki SV 650
2007 Suzuki VStrom 650
2007 Suzuki SV1000S
2007 Suzuki SV1000
2007 Suzuki SV 650 S
2007 Suzuki SV 650
2006 Suzuki VStrom 650
2006 Suzuki SV1000S
2006 Suzuki SV1000
2006 Suzuki SV 650 S
2006 Suzuki SV 650
2005 Suzuki VStrom 650
2005 Suzuki SV1000S
2005 Suzuki SV1000
2005 Suzuki SV 650 S
2005 Suzuki SV 650
2004 Suzuki VStrom 650
2004 Suzuki SV1000S
2004 Suzuki SV1000
2004 Suzuki SV 650 S
2004 Suzuki SV 650
2004 Arctic Cat TRV 500
2004 Arctic Cat TBX 500
2004 Arctic Cat TBX 400
2004 Arctic Cat 500 Manual
2004 Arctic Cat 500 Automatic
2004 Arctic Cat 400 Manual
2004 Arctic Cat 400 Automatic
2003 Suzuki SV1000S
2003 Suzuki SV1000
2003 Suzuki SV 650 S
2003 Suzuki SV 650

OEM 32800-16G00 32800-16G01 32800-16G02

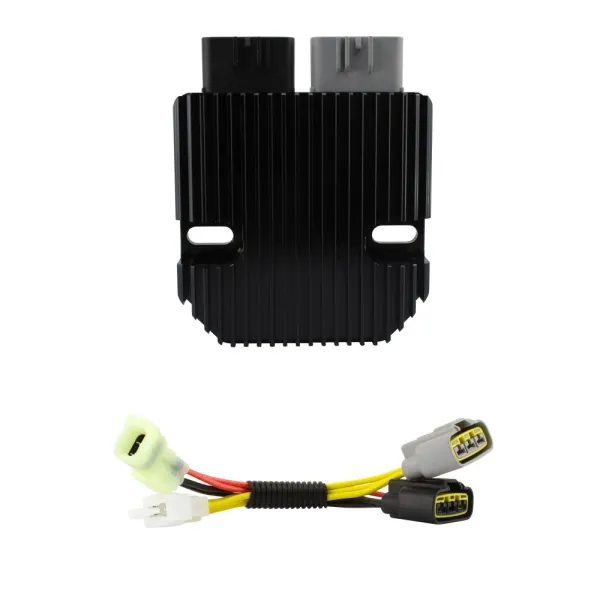

REVOLT Voltage Regulator Rectifier:
Width: 103mm
Length: 102 mm
Height: 26mm
Fixing holes center to center: 78 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 50A / 500W
Open Circuit Voltage: <15V
Operating Temperature: -20°C to 85°C

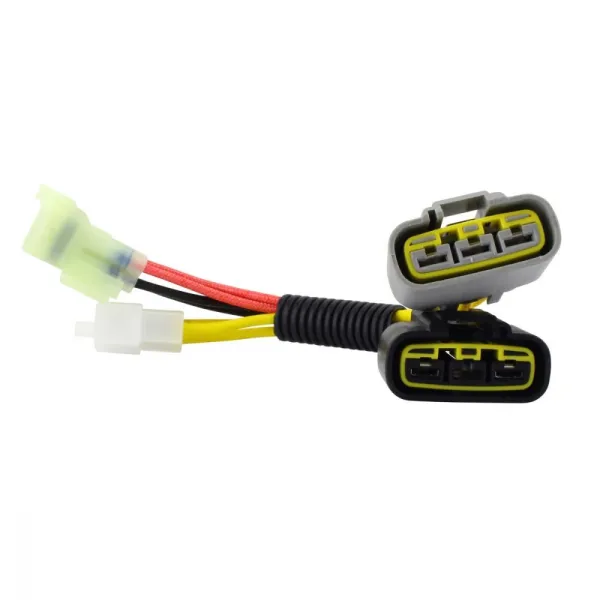

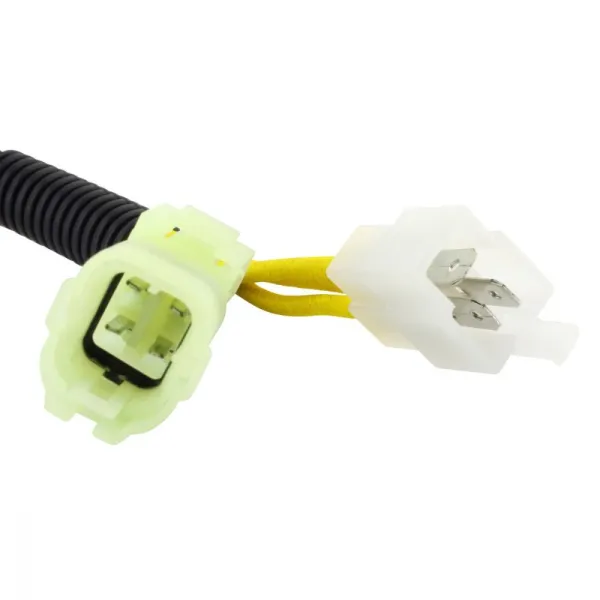

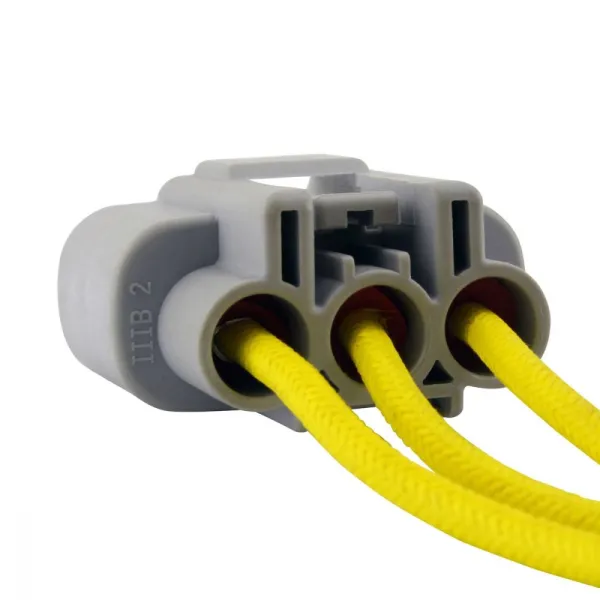

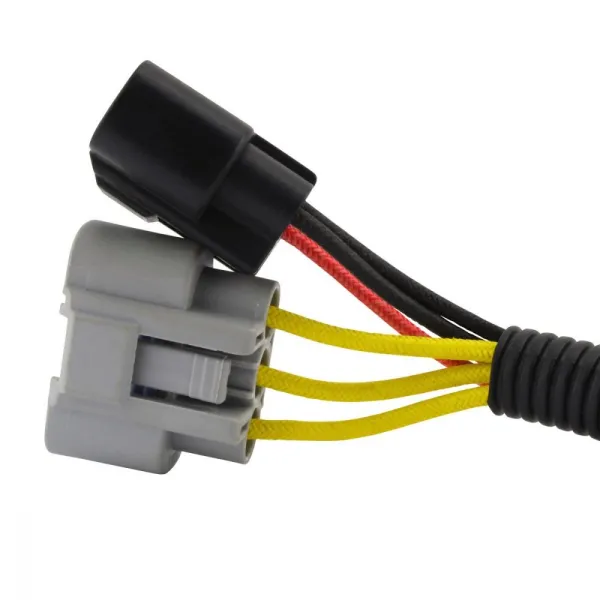

REVOLT Harness
Wire length: 150mm
Number of yellow wires: 3
Number of red wires: 1
Number of green wires: 1
Number of plugs: 3

RUNS 50% COOLER THAN OEM
2 years of R&D and careful choice of top graded performance components dramatically reduce failure rate by running substantially cooler than the best OEM and competitors’ products.

SOLVES THE MAJOR CAUSE OF FAILURE
REVOLT is the only voltage regulator rectifier on the market with a redesigned rectifier circuit to considerably improve reliability.

DISSIPATE HEAT 45% BETTER THAN OEM
Our improved proprietary Arctic Frostbite housing has increased and deeper fins and is CNC-machined from a high-quality aluminum billet for optimal heat transfer from internal components to external fresh air.

REVOLT is engineered, designed, and manufactured in USA under strict USA-based quality control standards.
