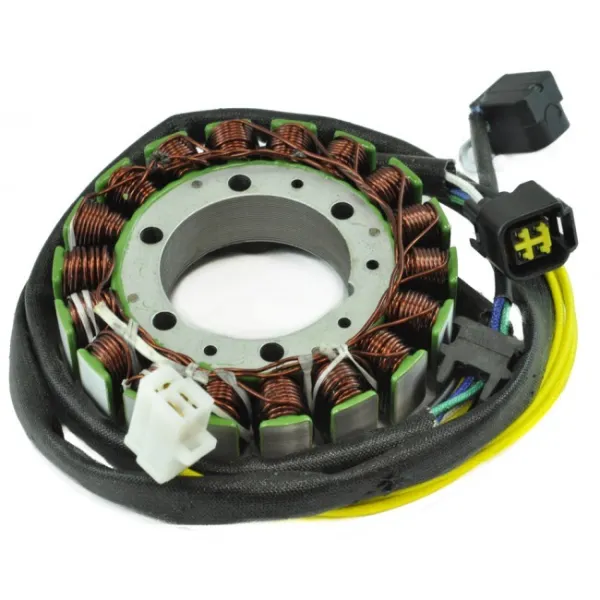

Stator-Suzuki-DR650

2024 Suzuki DR 650 SE
2023 Suzuki DR 650 SE
2022 Suzuki DR 650 SE
2021 Suzuki DR 650 SE
2020 Suzuki DR 650 SE
2019 Suzuki DR 650 SE
2018 Suzuki DR 650 SE
2017 Suzuki DR 650 SE
2016 Suzuki DR 650 SE
2015 Suzuki DR 650 SE
2014 Suzuki DR 650 SE
2013 Suzuki DR 650 SE
2012 Suzuki DR 650 SE
2011 Suzuki DR 650 SE
2010 Suzuki DR 650 SE
2009 Suzuki DR 650 SE
2008 Suzuki DR 650 SE
2007 Suzuki DR 650 SE
2006 Suzuki DR 650 SE
2005 Suzuki DR 650 SE
2004 Suzuki DR 650 SE
2003 Suzuki DR 650 SE
2002 Suzuki DR 650 SE
2001 Suzuki DR 650 SE
2000 Suzuki DR 650 SE
1999 Suzuki DR 650 SE
1998 Suzuki DR 650 SE
1997 Suzuki DR 650 SE
1996 Suzuki DR 650 SE


OEM 32101-32E00

Dimensions :
Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 18 mm
Length of wires stator to grommet : 140 mm
Length of wires grommet to plug : 825 mm
Length of pickup coil's wire to grommet : 80 mm

Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7

Wire to wire resistance :
Alternator : White To White = 0.4 ohms +/-20%
Pickup : Green To Blue = 230 ohms +/-20%
Position Sensor : Black To white = 0.4 ohms +/-20%

Resistant to 200 degrees Celsius
Pick up pulsar coil included - Connector included
