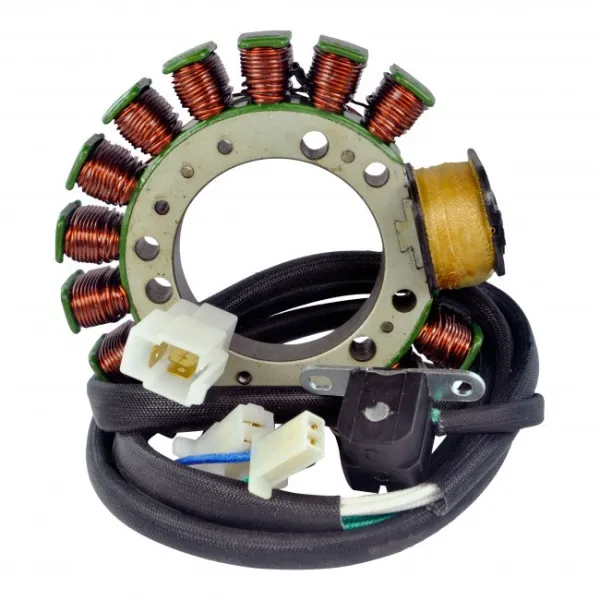

Stator-Suzuki-DR650

Stator-Suzuki-DR650

€219.00 Tax included

Resistant to 200 degrees Celsius

DR650S (90-93)

Reference
CARM01354
5-7 Days

Stator

Resistant to 200 degrees Celsius

    1993
        Suzuki
            DR 650 S
                Motorcycle 1993 Suzuki DR 650 S
    1992
        Suzuki
            DR 650 S
                Motorcycle 1992 Suzuki DR 650 S
    1991
        Suzuki
            DR 650 S
                Motorcycle 1991 Suzuki DR 650 S
    1990
        Suzuki
            DR 650 S
                Motorcycle 1990 Suzuki DR 650 S



OEM : 32101-12D00

Dimensions :
Interior diameter : 58 mm
Exterior diameter : 150 mm
Thickness : 40 mm
Length of wires stator to grommet : 160 mm
Length of wires grommet to plug : 55 mm
Length of pickup coil's wire to grommet : 720 mm
Other specifications :
Number of wires : 7
Number of plugs : 1
Number of pins : 9
Wire to wire resistance :
Alternator : White Between Each White = 2.3 ohms +/-20%
Pickup : Blue to Green = 200 ohms +/-20%
Source : Brown to Green = 300 ohms +/-20%
