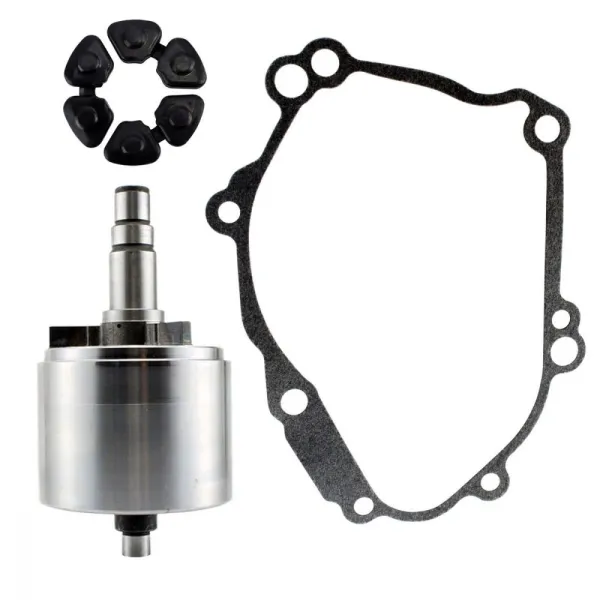

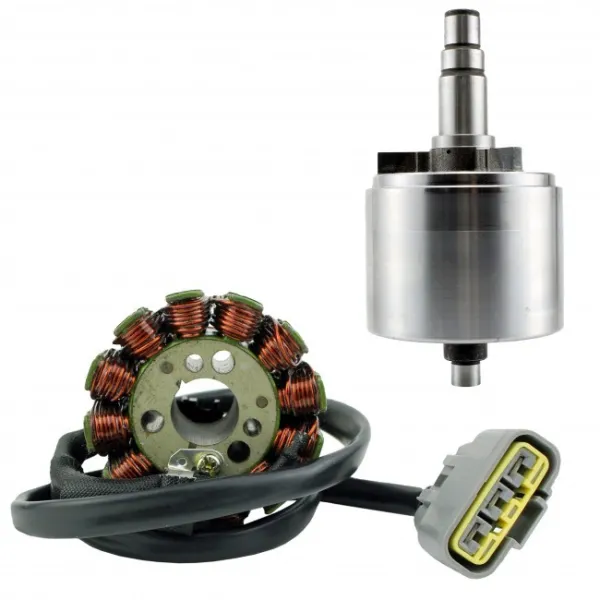

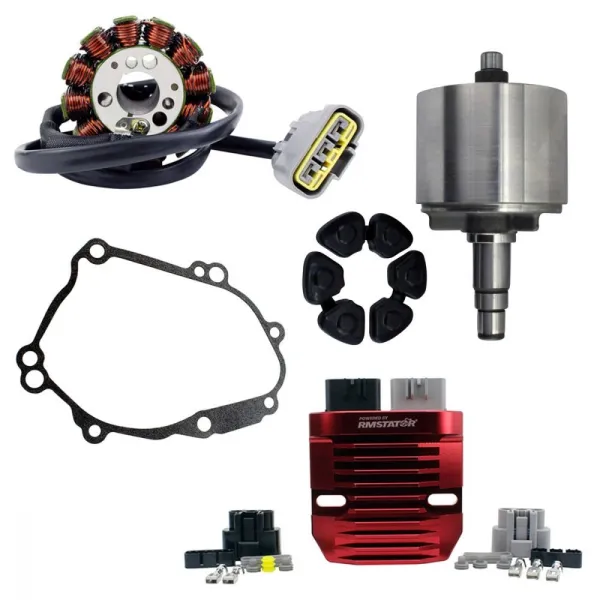

Kit Rotor Stator Aluminum Regulator Yamaha FZS1 FZ8 FZ1 YZF R1 OEM 5VY-81450-00-00 2D1-81410-00-00 2D1-81410-01-00

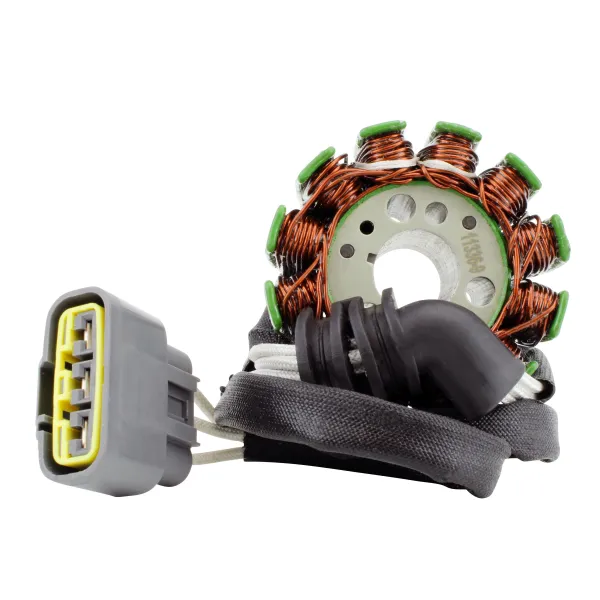

Stator Dimensions :

Interior diameter : 18 mm

Exterior diameter : 68 mm

Thickness : 42 mm

Length of wires stator to grommet : 125 mm

Length of wires grommet to plug : 500 mm

Other specifications :

Number of wires : 3

Number of plugs : 1

Number of pins : 3

Wire to wire resistance :

Alternator : Between each White = 0.4 ohms +/-20%

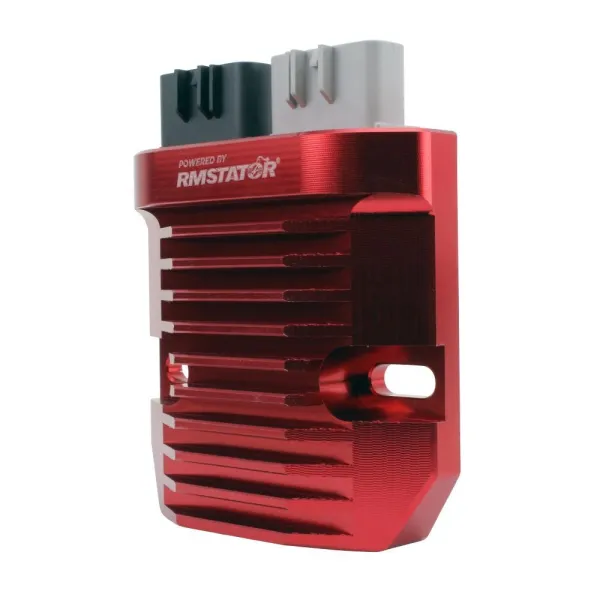

Mosfet Regulator Dimensions :

Width: 103 mm

Length: 103 mm

Height: 28 mm

Fixation holes center to center: 80 mm

Other specifications:

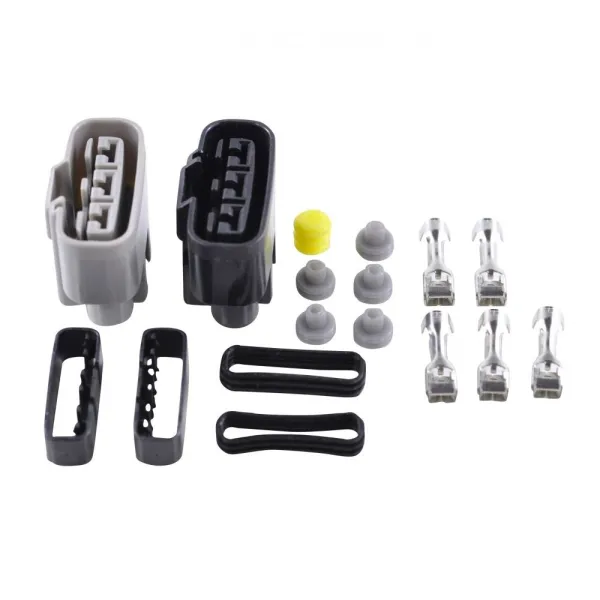

Number of plugs: 2

Number of pins: 5

Minimum Charging Voltage: 14.5 V +- 0.5 V

Maximum Charging Current: 50 A / 500 W

Open Circuit Voltage: 15 V

Operation Temperature: -20⁰ to 85⁰

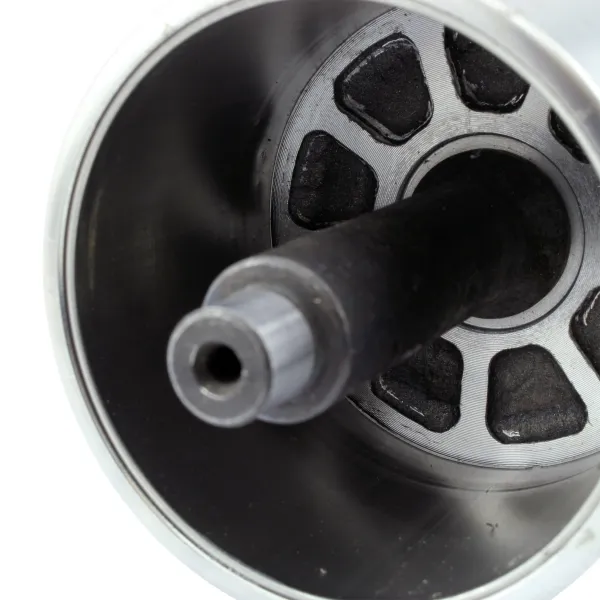

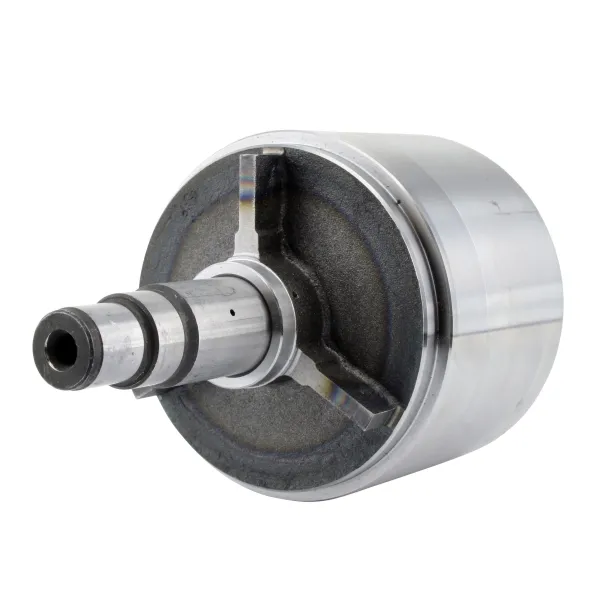

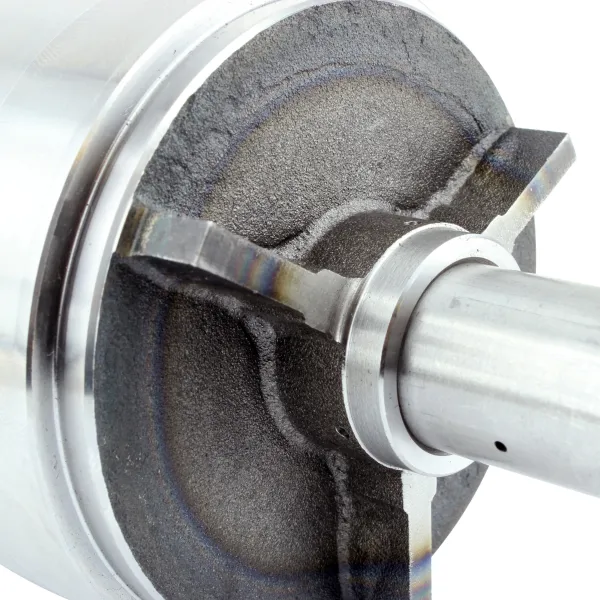

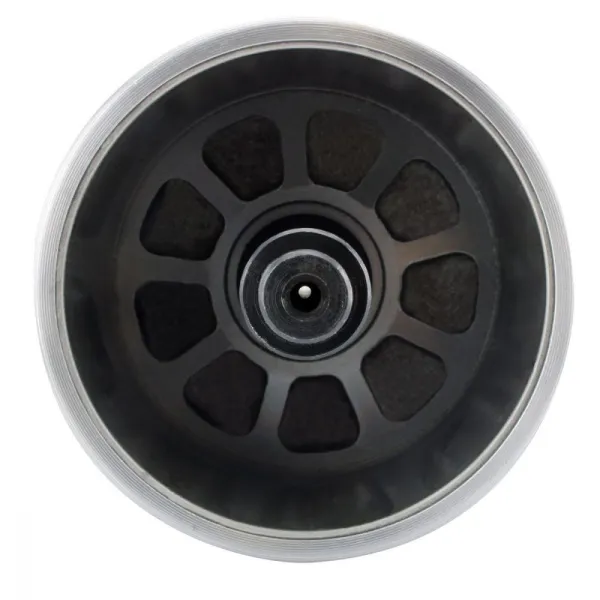

Flywheel Dimensions :

Exterior Diameter: 80 mm

Interior Diameter: 69 mm

Interior Diameter Center Housing: 12 mm

Exterior Diameter Center Housing: 18 mm

Thickness (exterior): 11 mm

Thickness (interior): 6 mm

Diameter of the Shaft largest to the narrowest:

26 mm

20 mm

18 mm

15 mm
