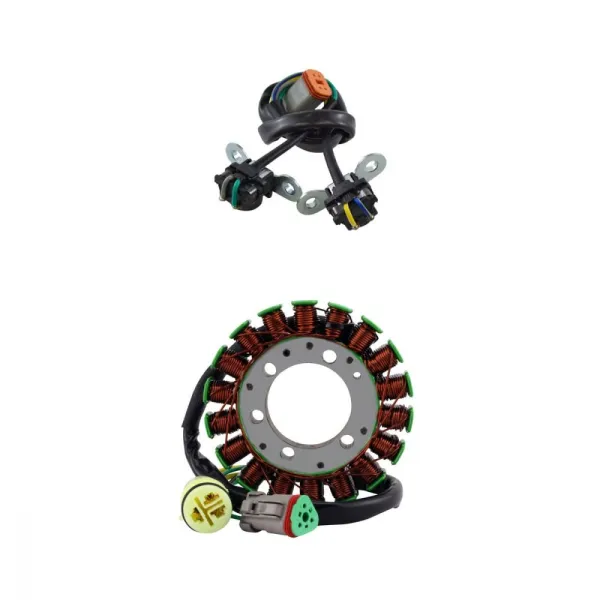

Kit Stator Pickup Coil 300 Ohms SkiDoo Grand Touring 600 700 800 Legend OEM 410922907 410922940

Stator

Resistant to 200 degrees Celsius

Ski-doo
Grand Touring 600 Carb L/C
2002 Ski-doo Grand Touring 600 Carb L/C
SE
2002 Ski-doo Grand Touring 600 Carb L/C SE
Grand Touring 700 Carb L/C
SE
1997 Ski-doo Grand Touring 700 Carb L/C SE
1999 Ski-doo Grand Touring 700 Carb L/C SE
2000 Ski-doo Grand Touring 700 Carb L/C SE
2001 Ski-doo Grand Touring 700 Carb L/C SE
1999 Ski-doo Grand Touring 700 Carb L/C
2000 Ski-doo Grand Touring 700 Carb L/C
2002 Ski-doo Grand Touring 700 Carb L/C
Grand Touring 800 Carb L/C
SE
1999 Ski-doo Grand Touring 800 Carb L/C SE
2000 Ski-doo Grand Touring 800 Carb L/C SE
2001 Ski-doo Grand Touring 800 Carb L/C SE
2002 Ski-doo Grand Touring 800 Carb L/C SE
Grand Touring Sport 500 Carb L/C
2002 Ski-doo Grand Touring Sport 500 Carb L/C
Grand Touring Sport 600 Carb L/C
2002 Ski-doo Grand Touring Sport 600 Carb L/C
Grand Touring Sport 700 Carb L/C
2002 Ski-doo Grand Touring Sport 700 Carb L/C

Stator :

Dimensions :

Interior diameter: 42 mm

Exterior diameter: 103 mm

Thickness: 13 mm

Length of wires stator to plug: 425 mm

Other specifications :

Number of wires: 5

Number of plugs: 2

Number of pins: 5

Wire to wire resistance :

Alternator: Yellow Between each Yellow = 0.5 ohms+/-20%

Alternator: Yellow to Ground = O.L. ON DISPLAY

Alternator: Green to each Yellow = 0.5 ohms+/-20%

Alternator: Black to Ground = 0.1 ohms+/-20%

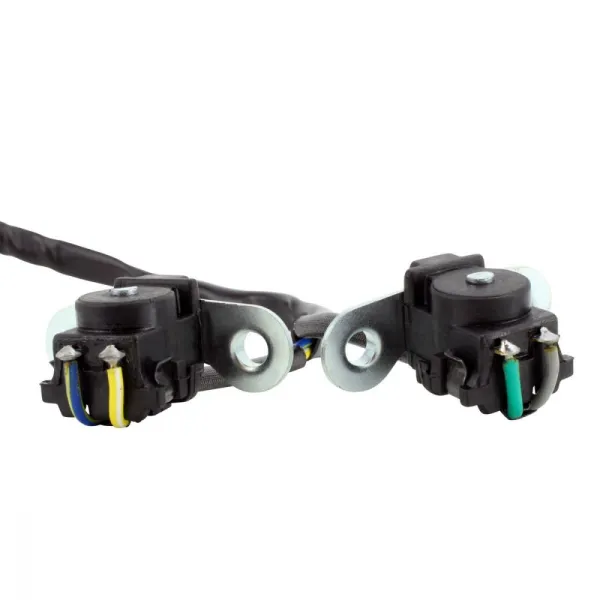

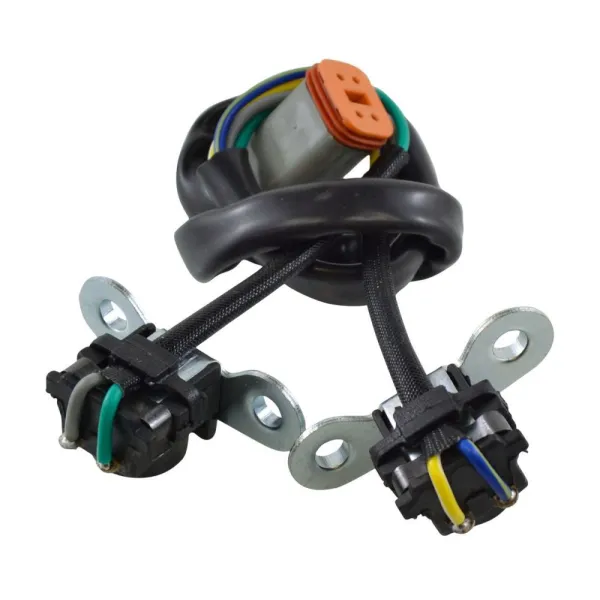

Pickup coil :

Dimensions :

Height : 21 mm

Length : 27 mm

Width : 27 mm

Bracket center to center : 35 mm

Wires length : 400 mm

Other specifications :

Number of wires : 4

Number of pins : 4

Number of plugs : 1

Wire to wire resistance :

Blue/Yellow to Yellow/White = 300 ohms +/-20%

Green to Grey = 300 ohms +/-20%

OEM 410922907 410922940
