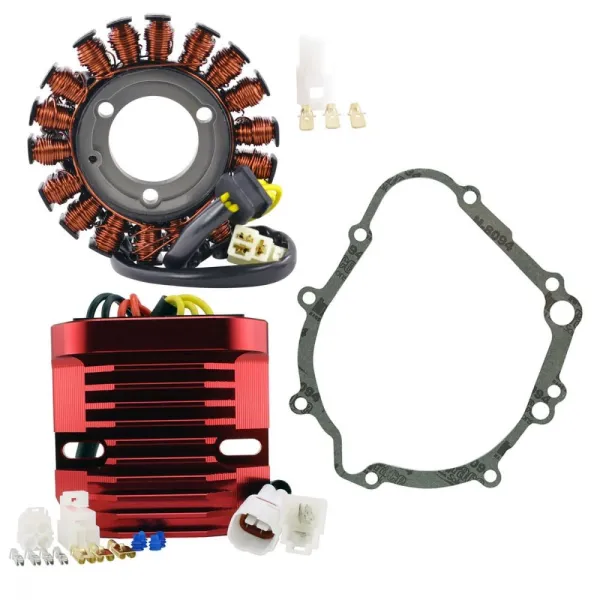

Stator Alu Regulator Mosfet Gasket Suzuki GSXR750 GSXR600 OEM 31401-01H00 31401-01H10 31401-01H20

2019 Suzuki GSXR 750
2019 Suzuki GSXR 600
2018 Suzuki GSXR 750
2018 Suzuki GSXR 600
2017 Suzuki GSXR 750
2017 Suzuki GSXR 600
2016 Suzuki GSXR 750
2016 Suzuki GSXR 600
2015 Suzuki GSXR 750
2015 Suzuki GSXR 600
2014 Suzuki GSXR 750
2014 Suzuki GSXR 600
2013 Suzuki GSXR 750
2013 Suzuki GSXR 600
2012 Suzuki GSXR 750
2012 Suzuki GSXR 600
2011 Suzuki GSXR 750
2011 Suzuki GSXR 600
2009 Suzuki GSXR 750
2009 Suzuki GSXR 600
2008 Suzuki GSXR 750
2008 Suzuki GSXR 600
2007 Suzuki GSXR 750
2007 Suzuki GSXR 600
2006 Suzuki GSXR 750
2006 Suzuki GSXR 600


OEM 31401-01H00 31401-01H10 31401-01H20

Resistant to 200 degrees Celsius

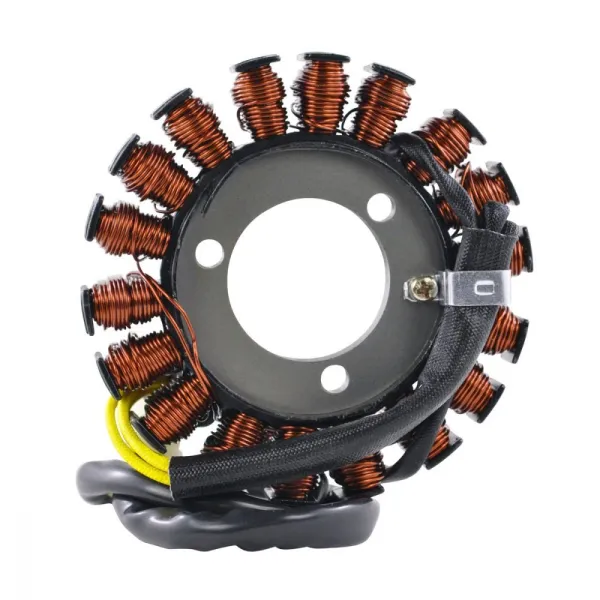

Stator

Interior diameter: 38 mm
Exterior diameter: 107 mm
Thickness: 12 mm
Length of wires stator to grommet : 160 mm
Length of wires grommet to plug : 330 mm

Other specifications:
Number of wires:3

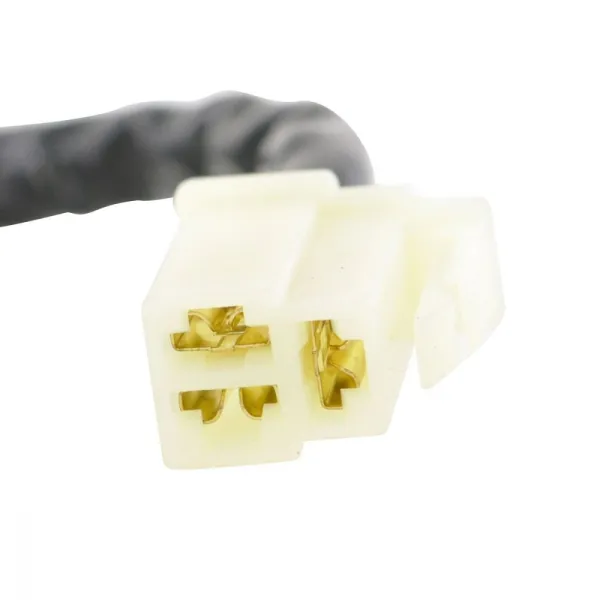

Number of plugs: 1
Number of pins: 3

Wire to wire resistance:
Alternator: Yellow to Yellow = 0.5 ohms +/-20%

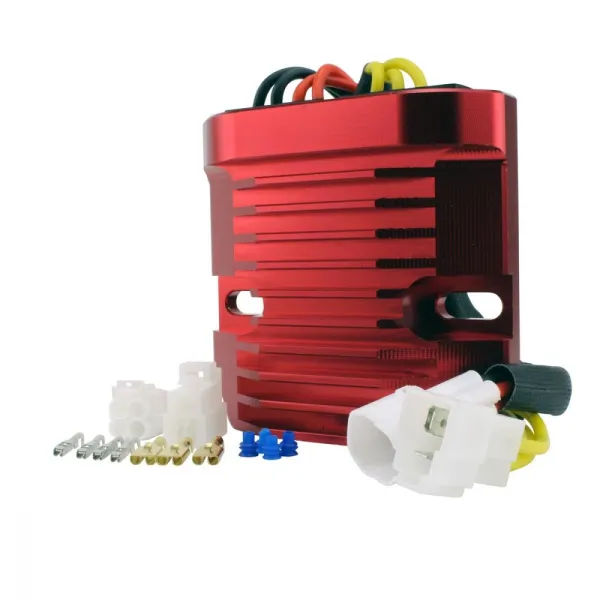

Regulator dimension Width : 92 mm
Length : 92 mm
Height : 30 mm
Fixation holes center to center : 75 mm
Wires length: 300 mm

Other specifications :
Number of plugs : 2
Number of pins : 7
Number of wires : 7
Minimum Charging Voltage : 14.5 V +/- 0.5 V
Maximum Charging Current : 50 A / 500 W
Open Circuit Voltage : < 15 V
Operation Temperature : -20⁰ C to 85⁰ C
