€334.80 Tax included

Kit Stator Regulator Rectifier Kawasaki KVF750 Brute Force EPS OEM 21003-0143 21003-0134 21003-0108 21003-0167

Reference
CARMS900-103927
5-7 Days (1 Item)

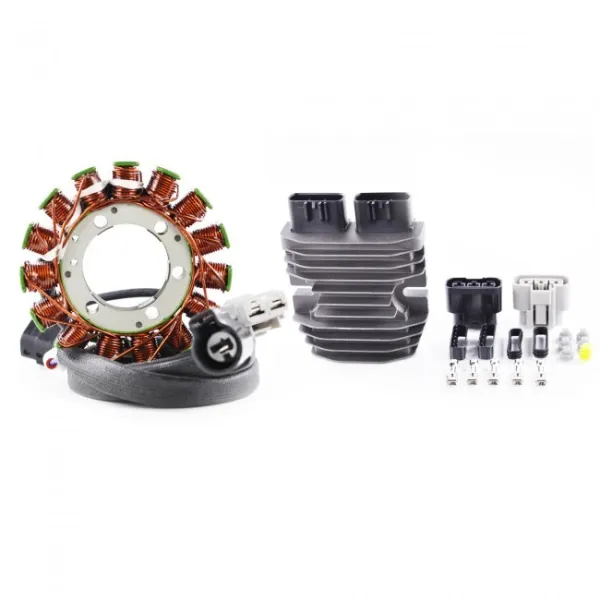

  • Kit Stator Regulator Rectifier Kawasaki KVF750 Brute Force EPS
  • 2018 Kawasaki KVF 750 Brute Force
    2018 Kawasaki KVF 750 Brute Force EPS
    2017 Kawasaki KVF 750 Brute Force
    2017 Kawasaki KVF 750 Brute Force EPS
    2016 Kawasaki KVF 750 Brute Force
    2016 Kawasaki KVF 750 Brute Force EPS
    2015 Kawasaki KVF 750 Brute Force
    2015 Kawasaki KVF 750 Brute Force EPS
    2014 Kawasaki KVF 750 Brute Force
    2014 Kawasaki KVF 750 Brute Force EPS
    2013 Kawasaki KVF 750 Brute Force
    2013 Kawasaki KVF 750 Brute Force EPS
    2012 Kawasaki KVF 750 Brute Force
    2012 Kawasaki KVF 750 Brute Force EPS



    OEM 21003-0143 21003-0134 21003-0108 21003-0167

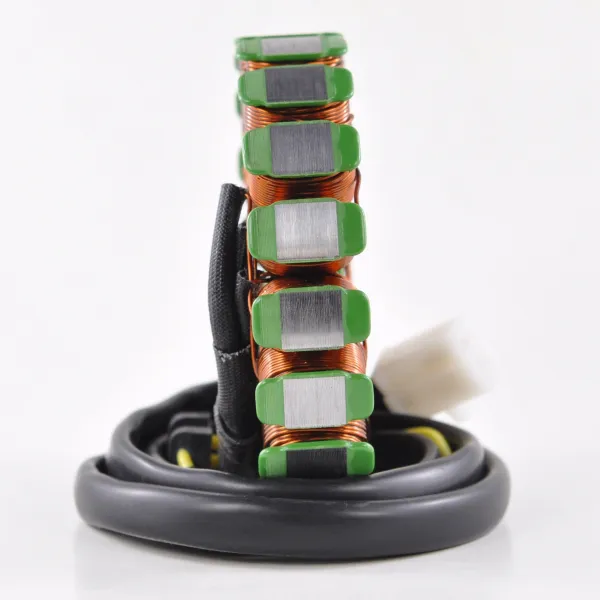

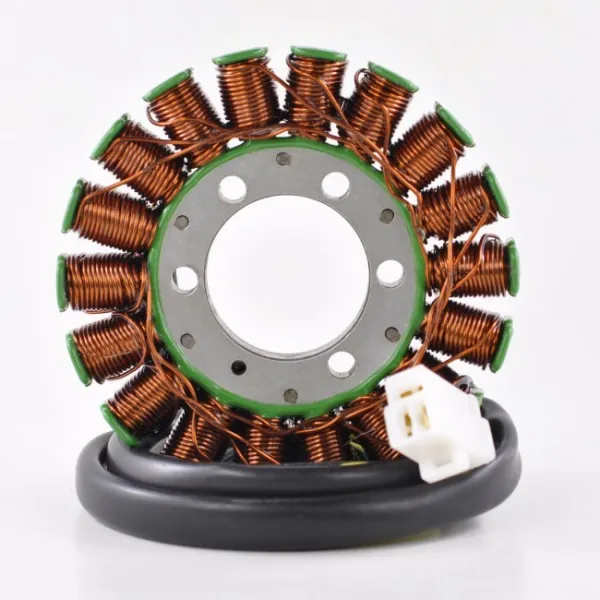

    Dimensions Stator:
    Interior diameter : 42 mm
    Exterior diameter : 105 mm
    Thickness : 20 mm
    Length of wires stator to grommet : 150 mm
    Length of wires grommet to plug : 950 mm
    Length of pickup coil's wire to grommet : 70 mm

    Other specifications :
    Number of wires : 5

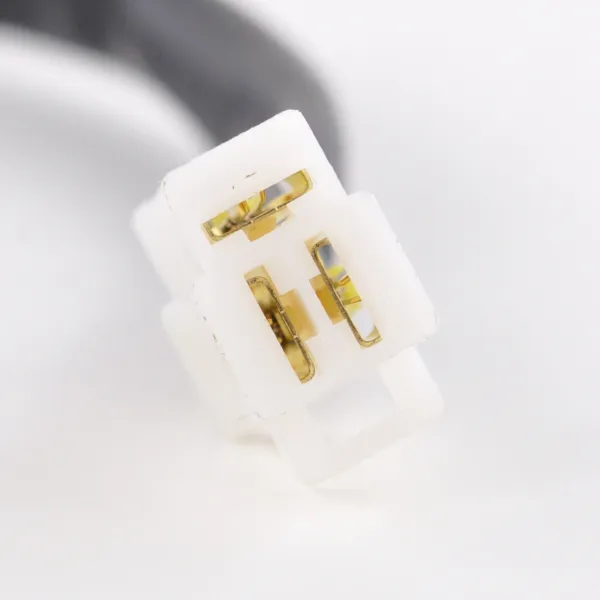

    Number of plugs : 3
    Number of pins : 5

    Wire to wire resistance :
    Alternator : White to White = 0.4 ohms +/-20%
    Pickup : Green to Blue = 500 ohms +/-20%

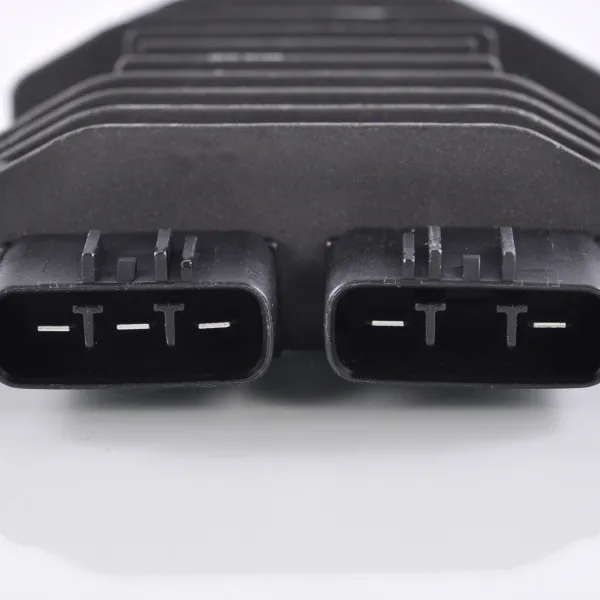

    Regulator
    Dimensions :
    Width : 95 mm
    Length : 110 mm
    Height: 30 mm
    Fixation holes center to center :78 mm

    Other specifications :
    Number of plugs : 2
    Number of pins : 5
