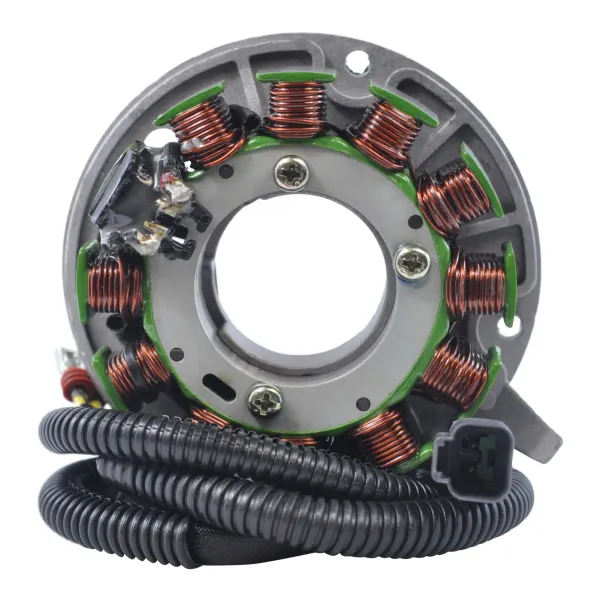

Stator LYNX 59 YETI 550 Rave 550 2014 OEM 420889367

Stator
Resistant to 200 degrees Celsius

2014 Lynx 59 YETI 550
2014 Lynx Rave 550


OEM
420889367

Dimensions :
Interior diameter : 44mm
Exterior diameter : 96mm
Thickness : 18mm
Length of wires stator to connector: 420mm & 550mm

Other specifications :
Number of wires : 4
Number of plugs : 2
Number of pins : 4

Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4ohms +/-20%
Source : Black to Red = 0.8ohms +/-20%
