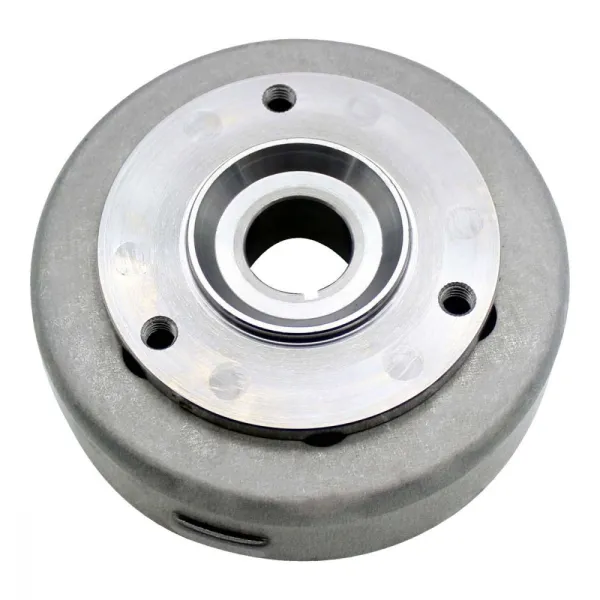

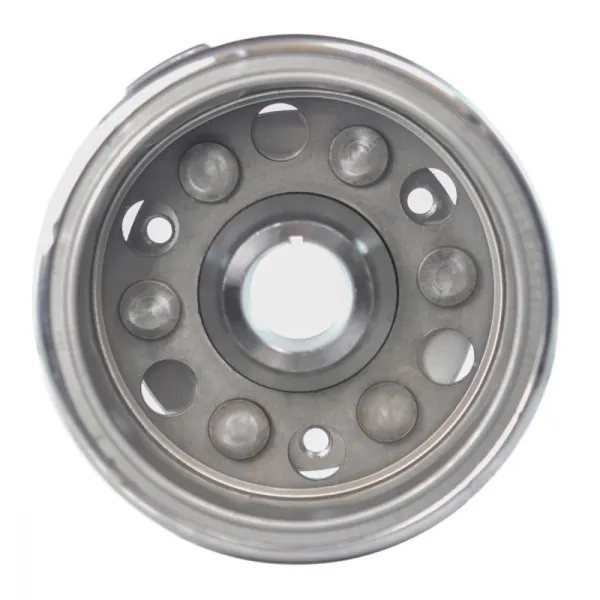

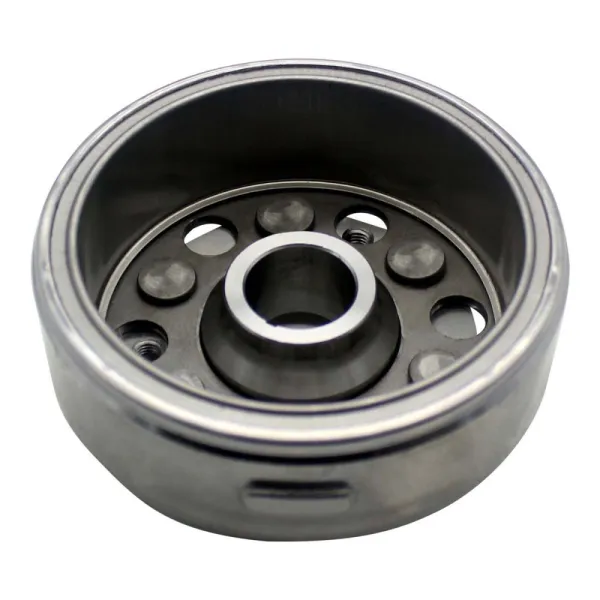

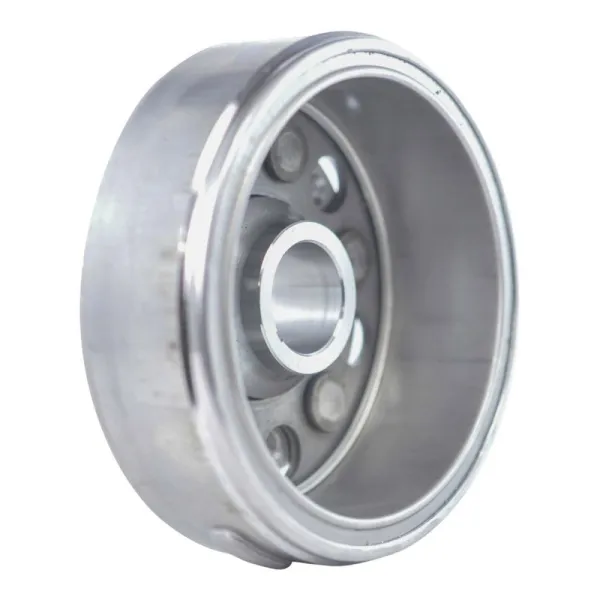

Rotor SkiDoo MXZ MXZX Summit 500 600 700 800 OEM 410922953

Rotor SkiDoo

2007 Ski-doo MX ZX 440 Racing Carb L/C

2004 Ski-doo Summit 800 HO Carb L/C

2004 Ski-doo MX ZX 600 HO Carb L/C

2004 Ski-doo MX Z 600 HO Trail Carb L/C

2004 Ski-doo MX Z 600 HO Adrenaline Carb L/C

2004 Ski-doo MX Z 500 SS Trail Carb L/C

2003 Ski-doo Summit 800 HO X Carb L/C

2003 Ski-doo Summit 800 HO Highmark X Carb L/C

2003 Ski-doo Summit 800 HO Highmark Carb L/C

2003 Ski-doo Summit 800 HO Adrenaline Carb L/C

2003 Ski-doo Summit 700 X Carb L/C

2003 Ski-doo Summit 700 Highmark Carb L/C

2003 Ski-doo Summit 700 Carb L/C

2003 Ski-doo Summit 700 Adrenaline Carb L/C

2003 Ski-doo Summit 600 HO Adrenaline Carb L/C

2003 Ski-doo MX ZX 800 Carb L/C

2003 Ski-doo MX ZX 600 HO Carb L/C

2003 Ski-doo MX Z 800 Sport Carb L/C

2003 Ski-doo MX Z 800 Renegade Carb L/C

2003 Ski-doo MX Z 800 Adrenaline Carb L/C

2003 Ski-doo MX Z 700 Adrenaline Carb L/C

2003 Ski-doo MX Z 600 Trail Carb L/C

2003 Ski-doo MX Z 600 HO Trail Carb L/C

2003 Ski-doo MX Z 600 HO Sport Carb L/C

2003 Ski-doo MX Z 600 HO Renegade Carb L/C

2003 Ski-doo MX Z 600 HO Adrenaline Carb L/C

2003 Ski-doo MX Z 600 Carb L/C

2003 Ski-doo MX Z 500 Trail Carb L/C

2003 Ski-doo MX Z 500 Adrenaline Carb L/C

OEM 410922953

Dimensions:

Exterior Diameter: 128 mm

Interior Diameter: 104 mm

Interior Diameter Center Housing: 27 mm

Exterior Diameter Center Housing: 24 mm

Thickness (exterior): 53 mm

Thickness (interior): 38 mm

Long Lump (timing trigger ridge): 25 mm

This flywheel fits the STD models ONLY.

The STD and RER / Trail models of the Ski-Doo 500/600/700/800cc do not use the same stator and flywheel.

For the RER / Trailmodels, please use flywheel CARM11510 or flywheel & puller kit CARMS900-103564.

You can determine the correct flywheel by measuring the length of the lump (timing trigger ridge) on outside edge of the flywheel.

This STD version has a 25 mm / 1" long trigger.

The RER / Trail version (CARM11510) has a 60 mm / 2.5 " long trigger.
