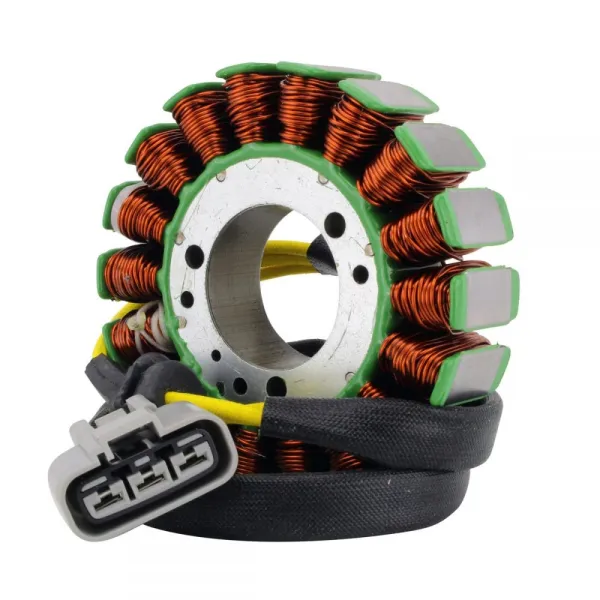

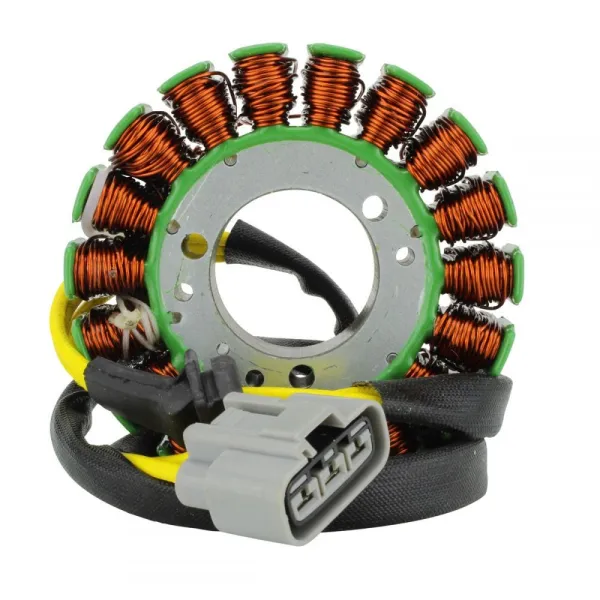

Stator CanAm Ryker 600 900 OEM 420296913

Stator CanAm

Ryker 600 Ryker 900 2019-2022

OEM 420296913

Dimension :
Interior diameter = 42 mm
Exterior diameter = 115 mm
Width = 21 mm

Other specifications :
Number of wires = 3
Number of plug = 1
Number of terminals = 3
Harness length Stator to grommet = 145 mm
Harness length grommet to plug = 580 mm

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.5 ohms +/- 20%
