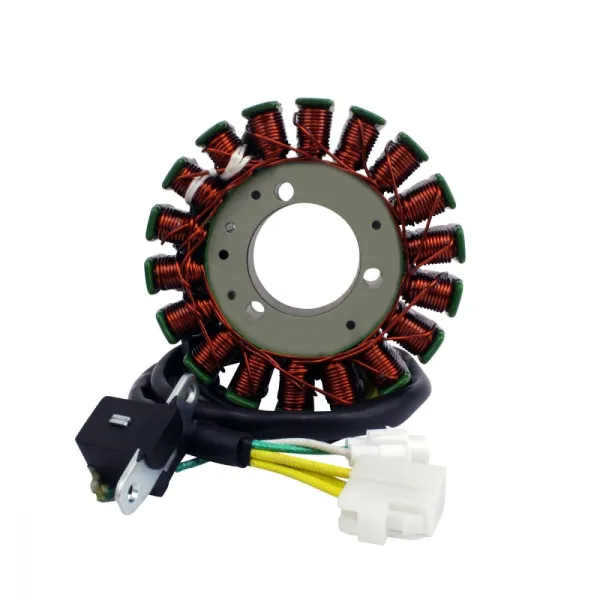

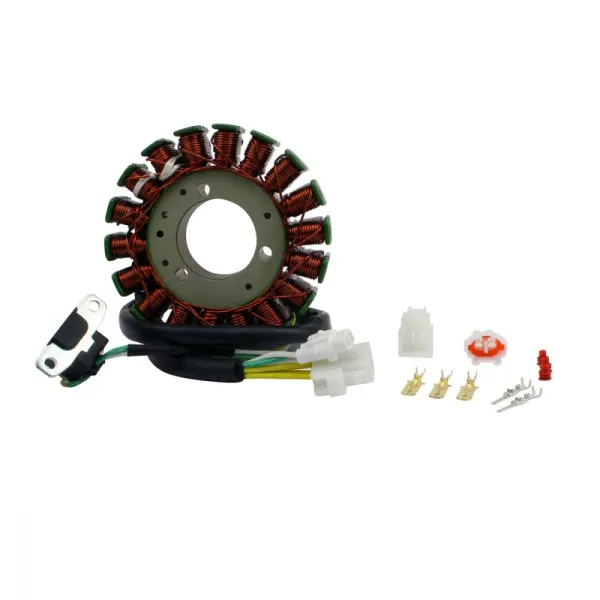

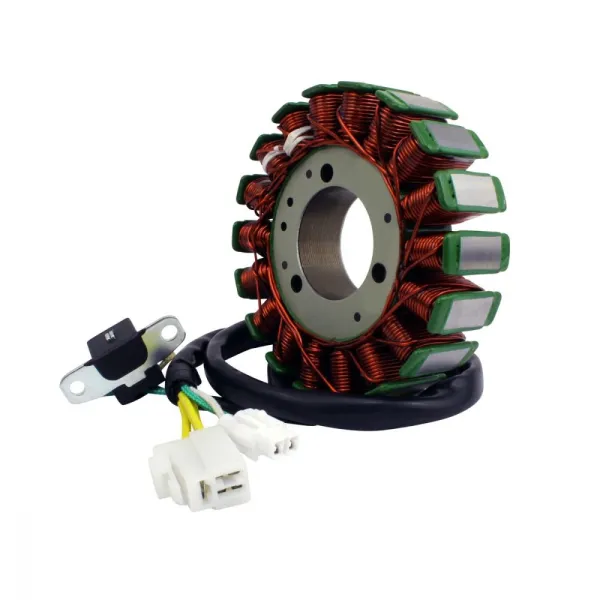

Stator Suzuki SV650 SFV650 Gladius OEM 32101-17G22 32101-17G21 32101-17G20

Stator Resistant to 200°C

2024 Suzuki SV 650
2023 Suzuki SV 650
2022 Suzuki SV 650
2021 Suzuki SV 650
2020 Suzuki SV 650
2019 Suzuki SV 650
2018 Suzuki SV 650
2017 Suzuki SV 650
2015 Suzuki SFV 650 Gladius
2014 Suzuki SFV 650 Gladius
2013 Suzuki SFV 650 Gladius
2012 Suzuki SFV 650 Gladius
2011 Suzuki SFV 650 Gladius
2010 Suzuki SFV 650 Gladius
2009 Suzuki SFV 650 Gladius

OEM 32101-17G20 32101-17G21 32101-17G22 32101-17G23

Dimensions:
Interior diameter: 38 mm
Exterior diameter: 108 mm

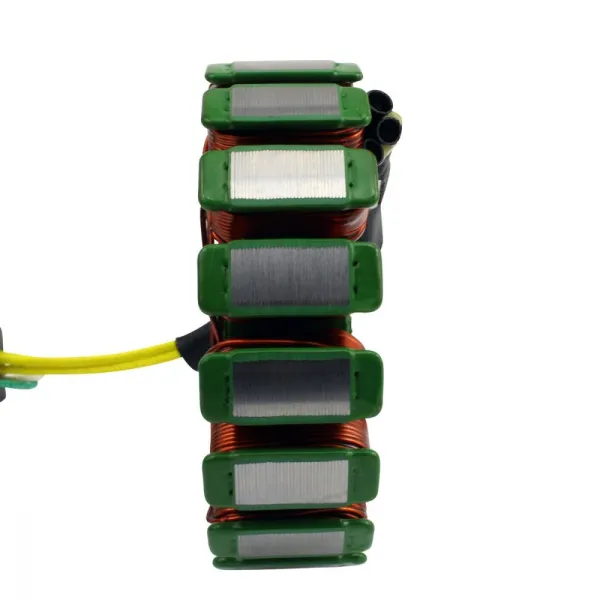

Thickness: 19 mm
Length of wires stator to grommet: 140 mm
Length of wires grommet to plug: 60 mm

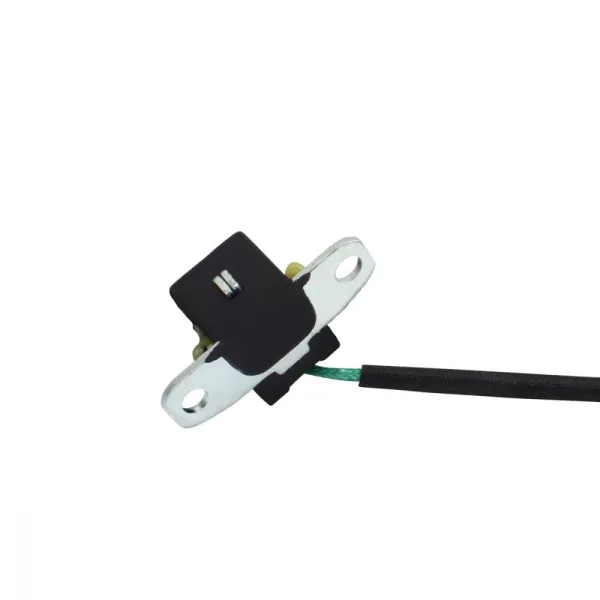

Length of pickup coil's wire to grommet: 450 mm

Other specifications:
Number of wires: 5

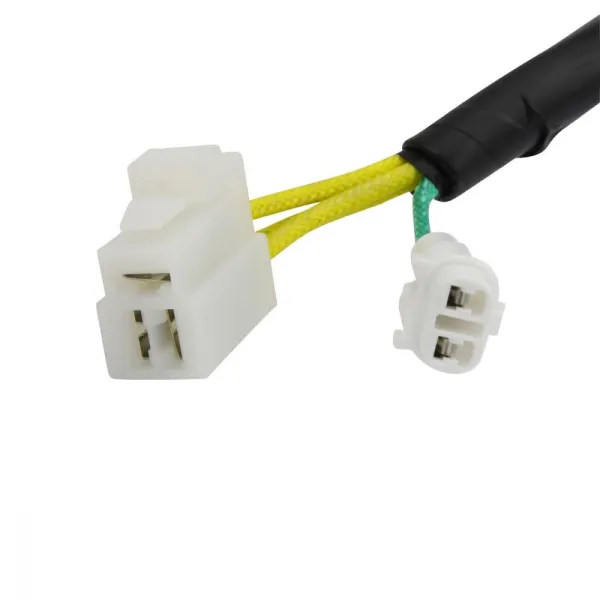

Number of plugs: 2
Number of pins: 5

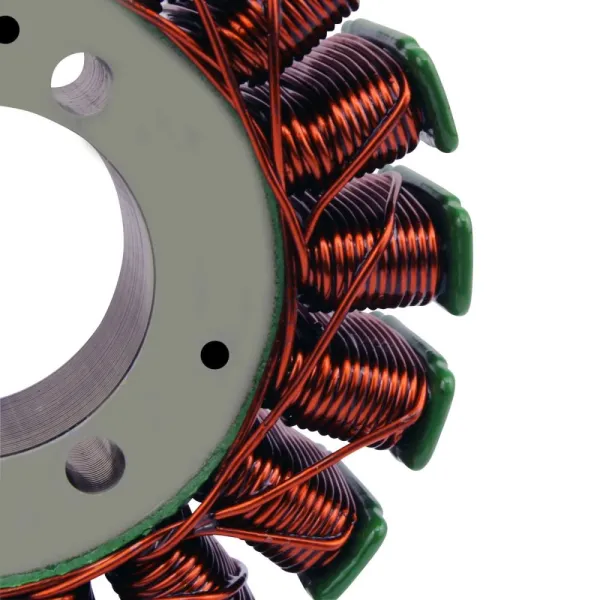

Number of poles: 18
Wire to wire resistance:
Alternator: Black to Black = 0.6 ohms +/-20%
Alternator: Black to ground = O.L
Pickup: Green to White = 197 ohms +/-20%
