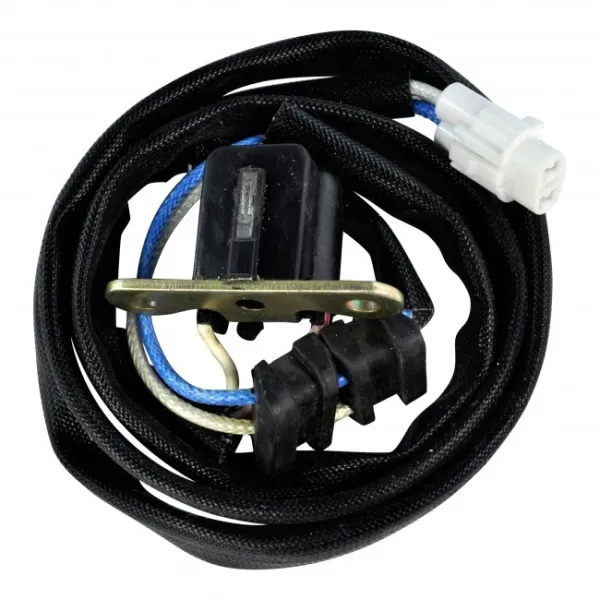

Technical Stator Pick-Up Pulsar Coil

Pulse/Pick-up

Measurement A

Measurement B

Measurement C

Resistance

OEM

ENP14

Yamaha

ENP30

Yamaha

ENP01-CARM00103

35mm

13mm

6mm

100ohm

3084974/3085360/3086860/3089254
31120-KA3-761/31120-KA4-761
RM22843-R00/32150-05D00
32160-27C00/31100-KA5-761
32101-32E00/3086238

 Polaris-KTM-Suzuki-Honda

ENP02-CARM00104

30mm

13mm

3mm

128ohm

2GU-85510-50-00/3GG-85510-00-00/3GG-85510-01-00 Yamaha

ENP03

33mm

6mm

9mm

250ohm

KTM-Yamaha

ENP04

36mm

14mm

10mm

220ohm

Honda

ENP05

35mm

8mm

7mm

280ohm

Yamaha

BEP06-CARM00102

35mm

14mm

5mm

510ohm

1S3-81410-00-00/21003-S006
32101-45G00/3409-026/3430-458/3HN-85510-10-00/4BD-85510-20-00/4BD-85580-00-00
4GB-85510-00-00/4KB-85510-00-00/4KB-85510-12-00/4WV-85510-00-00/4XE-81410-00-00
59026-1110/5FU-81410-00-00
5GH-81410-00-00/5GT-85510-00-00/5KM-81410-00-00
5KM-81410-01-00/5LP-81410-00-00/5LP-81410-01-00/5ND-81410-00-00/5NF-81410-00-00
5UH-81410-00-00/3210127H00
21003-1387/21003-3726
4KB-85510-11-00/4KB-85510-10-00/5LP-81410-02-00 Yamaha-Kawasaki-Suzuki-Arctic Cat

ENP07

30mm

14mm

3mm

228ohm

Honda-Kawasaki

ENP08

30mm

14mm

4.5mm

460ohm

GasGas

ENP11

34mm

14mm

4mm

230ohm

ENP13

38mm

7mm

9mm

280ohm

Honda

ENP20

34mm

15mm

4mm

150ohm

Honda

ENP21

36mm

15mm

6mm

120ohm

ENP22

33mm

6mm

12mm

440ohm

ENP71-21-504

30mm

13mm

4.5 - 5.5mm

115ohm

Yamaha-Husqvarna

CARM00122

200ohm

0802-037/3430-011/3430-053/
0802-041/3430-058 Arctic Cat

CARM00132

200ohm

31120-HN8-A62/31120-HN8-A60/31120-HN8-A61 Honda

CARM00121

35mm

200ohm

32101-07G00/32101-09F01 32101-09F30/32101-09F40
32101-10F01/32101-24B00
32101-24B01/32101-24B02
32101-33H00/32101-38B00
32101-38B01/32101-38B02
32101-38F00/32150-19A10
32101-09F00/32101-12D00
32101-45G10 Suzuki

CARM00101

35mm

200ohm

1UY-85510-20-00/1UY-85580-20-00/1YW-85510-21-00/21V-85580-20-00/2XK-85510-20-00
3HN-85510-00-00/4BD-85510-00-00/4EX-85510-00-00/4JY-85510-00-00/59V-85510-20-00
59V-85580-20-00 Yamaha

CARM00106

35mm

100ohm

3201-243 Arctic Cat

CARM00110

30mm

100ohm

3006-453/3004-141/3004-811
3005-730/3003-990/3004-073

Arctic Cat

CARM00108

36mm

350ohm

30300-HA0-013/30300-HA0-033/30300-HA0-003/30300-HA7-671 Honda

CARM00128

115ohm

31120-HA2-004/31120-HA2-671/31120-HB9-741 Honda

CARM00115

30mm

115ohm

3084763/3084511 Polaris

CARM00116

35mm

250ohm

420965642/410921100/410916700
410922900 SkiDoo

CARM00111

36mm

250ohm

410922948/410922909/410922940
420966804 SkiDoo

CARM00130

36mm

250ohm

410922948/410922909/410922940
420966804 SkiDoo

CARM00119

30mm

100ohm

32101-19B10/32150-22A01
32101-19B00 Suzuki

CARM00124

8ES-81410-00-00/8FA-81410-00-00
8FP-81410-01-00/8FP-81410-02-00
8GC-81410-00-00/8GC-81410-10-00/8FP-81410-00-00/8ES-81410-01-00 Yamaha Snowmobile

CARM00107

35mm

500ohm

28P-81410-00-00/3B4-81410-00-00
28P-81410-01-00/5B4-81410-00-00 Yamaha

CARM00127

2AL-85580-M0-00 Yamaha Blaster

CARM00109

35mm

290ohm

5TG-81410-00-00/5TG-81410-01-00/5TG-81410-02-00
5TG-81410-03-00 Yamaha

CARM00118

37mm

250ohm

410922963/420966835/420966838
410922969/410922951/410922955
410922925/41092300 SkiDoo

US21-518

 200ohm

Polaris-Kawasaki

US21-502

 200ohm

Triumph

US21-518

 200ohm

Arctic Cat

US21-520

 100ohm

Honda

US21-509

 100ohm

Polaris

FR246170010

Gilera

FR246170010

Piaggio
