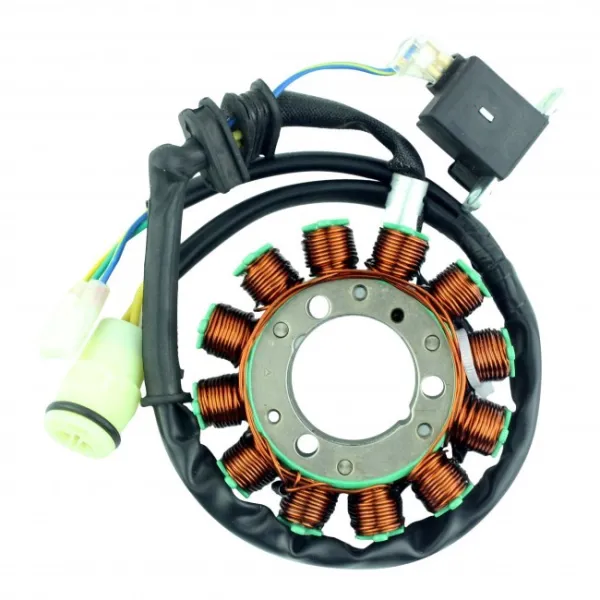

Stator Honda TRX300 Fourtrax

Stator Honda TRX300 Fourtrax

€174.00 Save 20%
€139.20 Tax included

Stator Honda TRX300 Fourtrax (88-00)

Reference
CARM01289
Contact Us

Stator

Honda TRX300 Fourtrax 1988-2000

OEM 31120-HC4-004 31120-HC4-014

Dimensions :
Interior diameter: 34mm
Exterior diameter: 88mm
Thickness: 15mm
Length of wires stator to grommet: 65mm
Length of wires grommet to plug: 290mm
Length of pickup coil's wire to grommet: 25mm
Other specifications :
Number of wires : 6
Number of plugs : 2
Number of pins : 6
Wire to wire resistance :
Alternator: Yellow between each Yellow = 0.4 ohms +/-20%
Pickup: Blue/Yellow to Green = 335ohms +/-20%
