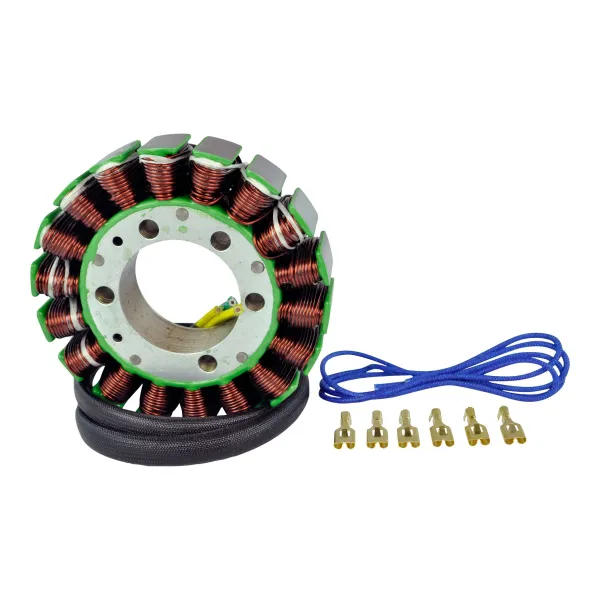

Stator-Honda-TRX500 Fourtrax-TRX500 Foreman-TRX500 Rubicon

Stator

2005 Honda TRX 500 Fourtrax Foreman Rubicon FGA - 4x4 Automatic GPScape
2006 Honda TRX 500 Fourtrax Foreman Rubicon FGA - 4x4 Automatic GPScape
2007 Honda TRX 500 Fourtrax Foreman Rubicon FGA - 4x4 Automatic GPScape
2008 Honda TRX 500 Fourtrax Foreman Rubicon FGA - 4x4 Automatic GPScape
2005 Honda TRX 500 Fourtrax Foreman Rubicon
2006 Honda TRX 500 Fourtrax Foreman Rubicon

2005 Honda TRX 500 Fourtrax Foreman Rubicon FA - 4x4 Automatic
2006 Honda TRX 500 Fourtrax Foreman Rubicon FA - 4x4 Automatic
2007 Honda TRX 500 Fourtrax Foreman Rubicon FA - 4x4 Automatic
2008 Honda TRX 500 Fourtrax Foreman Rubicon FA - 4x4 Automatic
2009 Honda TRX 500 Fourtrax Foreman Rubicon FA - 4x4 Automatic
2011 Honda TRX 500 Fourtrax Foreman Rubicon FA - 4x4 Automatic
2012 Honda TRX 500 Fourtrax Foreman Rubicon FA - 4x4 Automatic
2013 Honda TRX 500 Fourtrax Foreman Rubicon FA - 4x4 Automatic
2014 Honda TRX 500 Fourtrax Foreman Rubicon FA - 4x4 Automatic

2009 Honda TRX 500 Fourtrax Foreman Rubicon FPA - 4x4 Automatic Power Steering
2011 Honda TRX 500 Fourtrax Foreman Rubicon FPA - 4x4 Automatic Power Steering
2012 Honda TRX 500 Fourtrax Foreman Rubicon FPA - 4x4 Automatic Power Steering
2013 Honda TRX 500 Fourtrax Foreman Rubicon FPA - 4x4 Automatic Power Steering
2014 Honda TRX 500 Fourtrax Foreman Rubicon FPA - 4x4 Automatic Power Steering

2012 Honda TRX 500 Fourtrax Foreman Rubicon FPA - 4x4 Automatic EPS
2013 Honda TRX 500 Fourtrax Foreman Rubicon FPA - 4x4 Automatic EPS

2013 Honda TRX 500 Fourtrax Foreman Rubicon FA - EPS

Resistant to 200 degrees Celsius

OEM 31120-HN2-A21

Dimensions:
Interior diameter: 41mm
Exterior diameter: 106mm
Thickness: 21mm
Length of wires stator to grommet: 70mm
Length of wires grommet to plug: 500mm

Other specifications:
Number of wires: 5
Number of plugs: 1
Number of pins: 5

Wire to wire resistance:
Alternator: = 0.4ohms +/-20%
