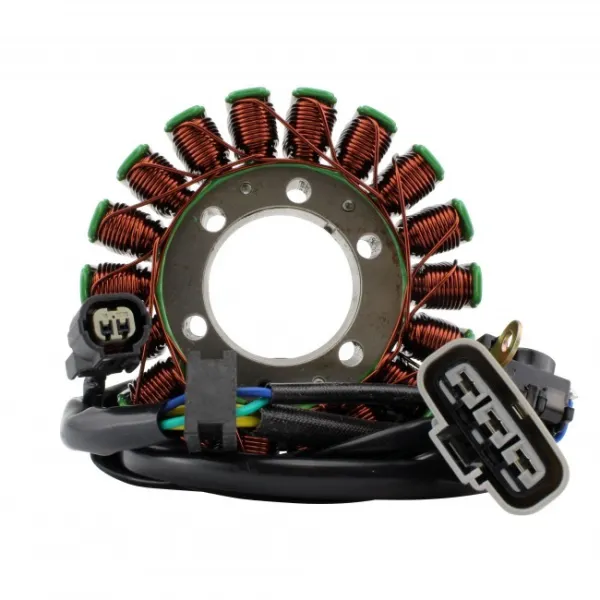

Stator-Honda-TRX500 Fourtrax-TRX500 Foreman-TRX500 Rubicon
Stator-Honda-TRX500 Fourtrax-TRX500 Foreman-TRX500 Rubicon
Stator-Honda-TRX500 Fourtrax-TRX500 Foreman-TRX500 Rubicon
Stator-Honda-TRX500 Fourtrax-TRX500 Foreman-TRX500 Rubicon

Stator Honda TRX520 Foreman Rubicon TRX500 FE FM Foreman Fourtrax OEM 31120-HR4-A42 31120-HR4-A41

€222.00 Tax included

Stator Honda TRX520 Foreman Rubicon TRX500 FE FM Foreman Fourtrax OEM 31120-HR4-A42 31120-HR4-A41

Reference
CARMS010-106262
Contact Us

Stator

Resistant to 200 degrees Celsius

2020 Honda TRX 520 Fourtrax Foreman FE
2020 Honda TRX 520 Fourtrax Foreman FM
2020 Honda TRX 520 Fourtrax Foreman Rubicon FM
2019 Honda TRX 500 Fourtrax Foreman FE
2019 Honda TRX 500 Fourtrax Foreman FM
2018 Honda TRX 500 Fourtrax Foreman FE
2018 Honda TRX 500 Fourtrax Foreman FM
2017 Honda TRX 500 Fourtrax Foreman FE
2017 Honda TRX 500 Fourtrax Foreman FM
2016 Honda TRX 500 Fourtrax Foreman FE
2016 Honda TRX 500 Fourtrax Foreman FM
2015 Honda TRX 500 Fourtrax Foreman FE
2015 Honda TRX 500 Fourtrax Foreman FM
2014 Honda TRX 500 Fourtrax Foreman FE
2014 Honda TRX 500 Fourtrax Foreman FM

OEM 31120-HR4-A42 31120-HR4-A41
Dimensions :
Interior diameter : 40 mm
Exterior diameter : 105 mm
Thickness : 35 mm
Length of wires stator to grommet : 110 mm
Length of wires grommet to plug : 940 mm
Length of pickup coil's wire to grommet : 60 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18
Wire to wire resistance :
Alternator 3p : Between each Yellow = 0.5 ohms +-20%
Source : Blue/Yellow to Green = 240 ohms +-20%
