Kit Stator Rotor Flywheel Mitsubishi Aprilia Tuono V4 1000 RSV4 1000 Factory RSV4R 1000 OEM 857201

Kit Stator Rotor Flywheel Mitsubishi Aprilia Tuono V4 1000 RSV4 1000 Factory RSV4R 1000

2012 Aprilia Tuono V4 1000
2012 Aprilia RSV4 R 1000
2012 Aprilia RSV4 1000 Factory
2011 Aprilia Tuono V4 1000
2011 Aprilia RSV4 R 1000
2011 Aprilia RSV4 1000 Factory
2010 Aprilia RSV4 R 1000

OEM 857201

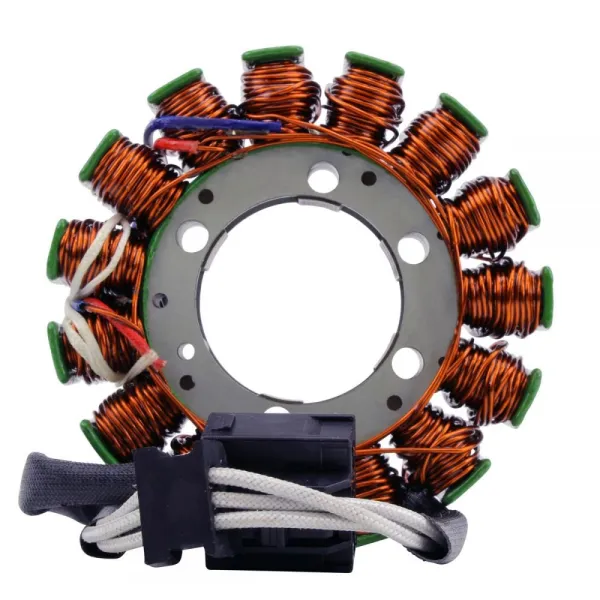

Generator Stator Dimensions :
Interior diameter : 42 mm
Exterior diameter : 105 mm
Thickness : 17 mm
Length of wires stator to grommet : 90 mm
Length of wires grommet to plug : 300 mm

Other specifications :
Number of wires : 3

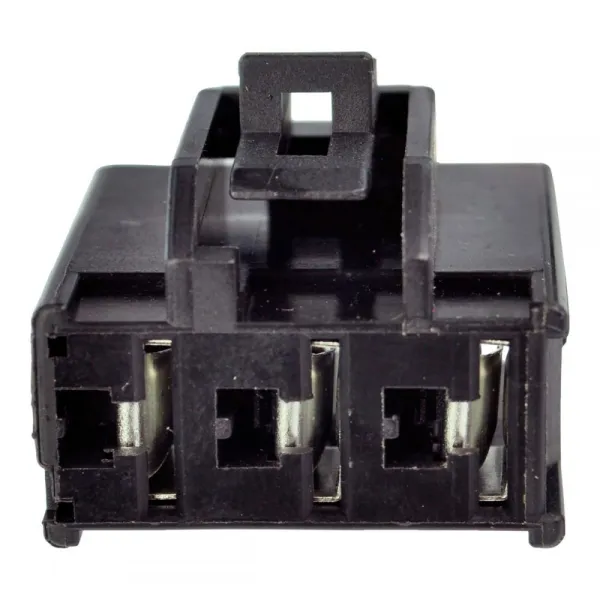

Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Between each White = 0.4 ohms +/-20%

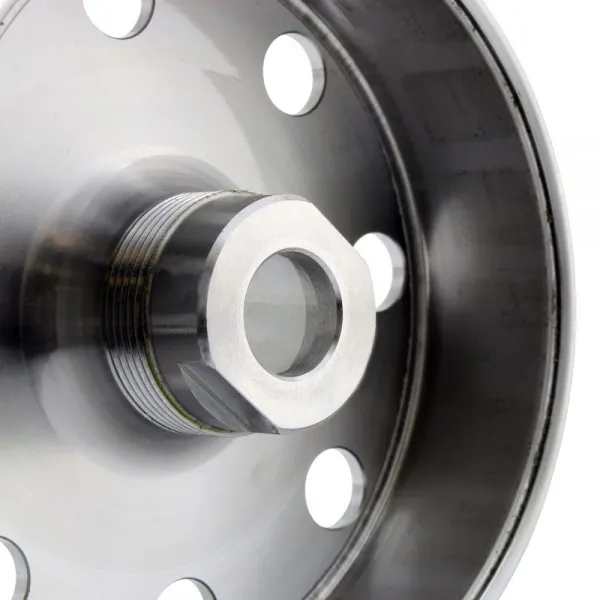

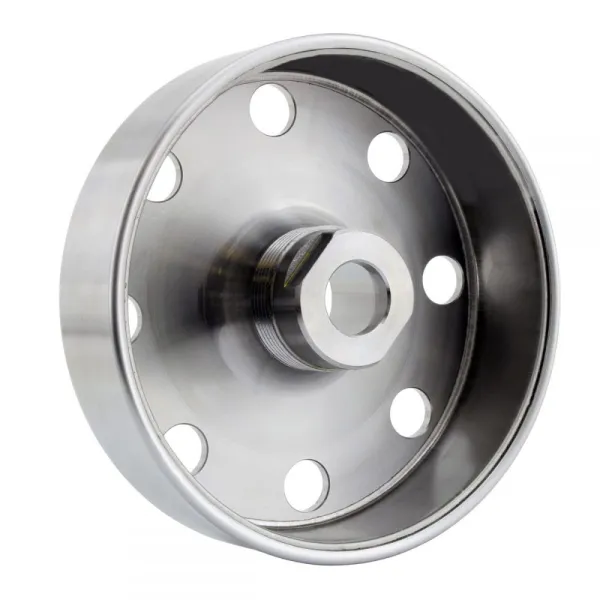

Flywheel Dimensions:
Exterior Diameter: 115 mm
Interior Diameter: 108 mm
Interior Diameter Center Housing: 16 mm
Exterior Diameter Center Housing: 24 mm
Thickness (exterior): 30 mm
Thickness (interior): 33 mm

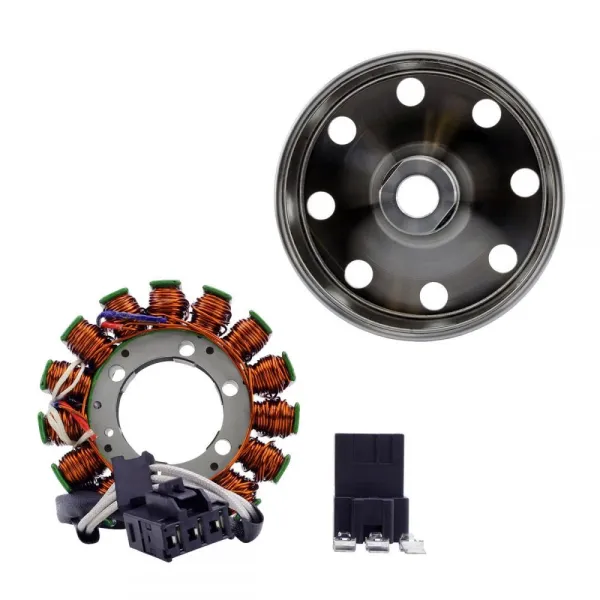

Included in this kit

Heavy-duty Mitsubishi brand recall-type OEM flywheel
Triple-tested heavy-duty stator

With this kit, you will be able to upgrade your current failure-prone charging system with a heavy-duty version using the latest technologies.

Features

Built to OEM size

Fits precisely in your ride: install it and forget it.

Improved epoxy

Uses high temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment.

High grade steel capping

Prevents harsh additives in motor oil from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.

Precise balancing

Eliminates crankshaft vibrations for longer engine longevity.


Please note: There is two possible kits for RSV4 engine. If your RSV4 engine number is lower than 3413, you will need CARMS900-103848. Please compare our flywheel to your original.
