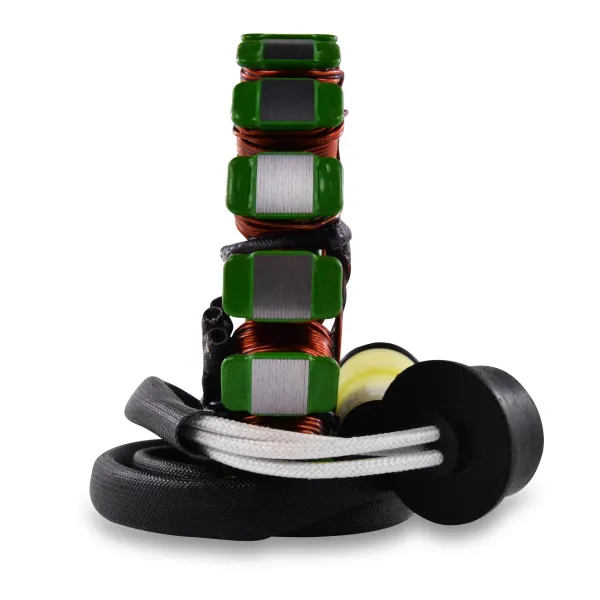

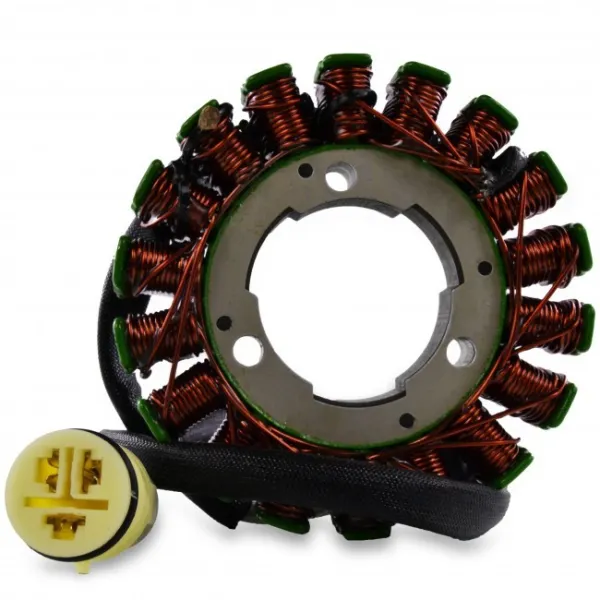

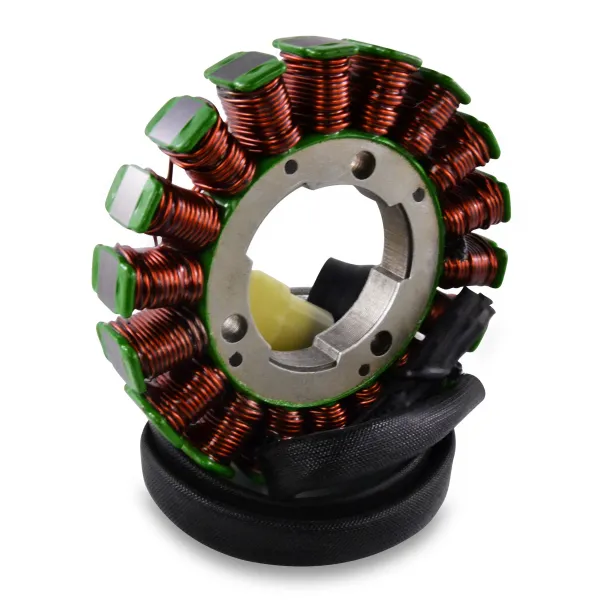

Stator Kawasaki SXR STX JT 1500 Ultra LX STX12F STX15F OEM 21003-3749

Stator Kawasaki

2018 Kawasaki Jet Ski STX-15F
2018 Kawasaki Jet Ski SXR
2018 Kawasaki Jet Ski Ultra LX
2017 Kawasaki Jet Ski STX-15F
2017 Kawasaki Jet Ski SXR
2017 Kawasaki Jet Ski Ultra LX
2016 Kawasaki Jet Ski STX-15F
2016 Kawasaki Jet Ski Ultra LX
2015 Kawasaki Jet Ski STX-15F
2015 Kawasaki Jet Ski Ultra LX
2014 Kawasaki Jet Ski STX-15F
2014 Kawasaki Jet Ski Ultra LX
2013 Kawasaki Jet Ski STX-15F
2013 Kawasaki Jet Ski Ultra LX
2012 Kawasaki Jet Ski STX-15F
2012 Kawasaki Jet Ski Ultra LX
2011 Kawasaki Jet Ski STX-15F
2011 Kawasaki Jet Ski Ultra LX
2010 Kawasaki Jet Ski STX JT 1500
2010 Kawasaki Jet Ski STX-15F
2010 Kawasaki Jet Ski Ultra LX
2009 Kawasaki Jet Ski STX JT 1500
2009 Kawasaki Jet Ski STX-15F
2009 Kawasaki Jet Ski Ultra LX
2008 Kawasaki Jet Ski STX-15F
2008 Kawasaki Jet Ski Ultra LX
2007 Kawasaki Jet Ski STX-12F
2007 Kawasaki Jet Ski STX-15F
2007 Kawasaki Jet Ski Ultra LX
2006 Kawasaki Jet Ski STX-12F
2006 Kawasaki Jet Ski STX-15F
2005 Kawasaki Jet Ski STX-12F
2005 Kawasaki Jet Ski STX-15F
2004 Kawasaki Jet Ski STX-12F
2004 Kawasaki Jet Ski STX-15F

OEM 21003-3749

Dimensions :
Interior diameter : 41 mm
Exterior diameter : 104 mm
Thickness : 12 mm
Length of wires stator to grommet : 90 mm
Length of wires grommet to plug : 480 mm

Other specifications :
Number of wires : 3

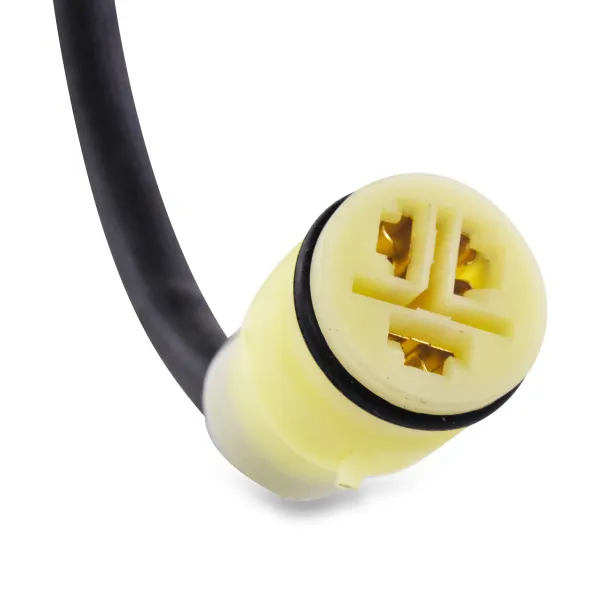

Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Between Each White = 1.1 ohms +-20%

Highest grade copper windings, resistant to 200 degrees Celsius
