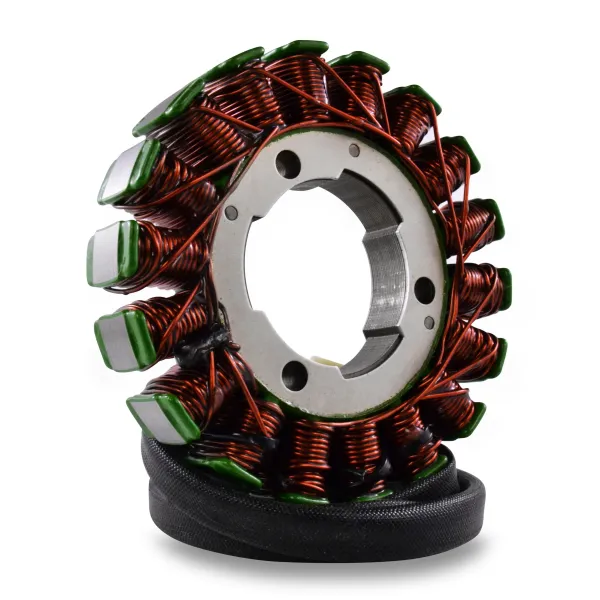

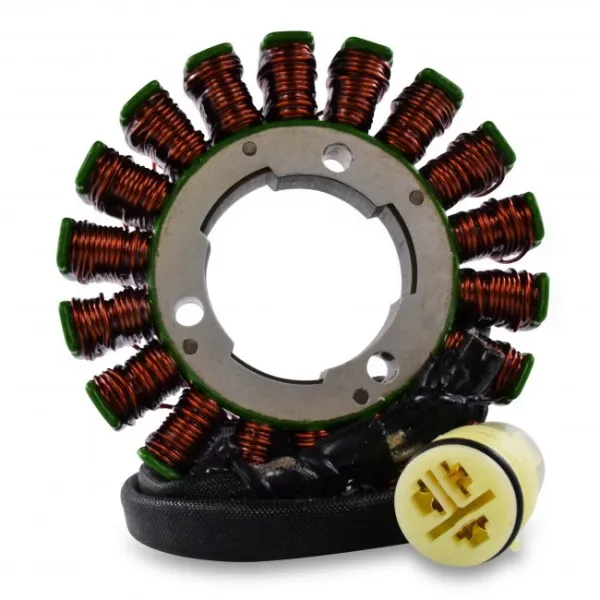

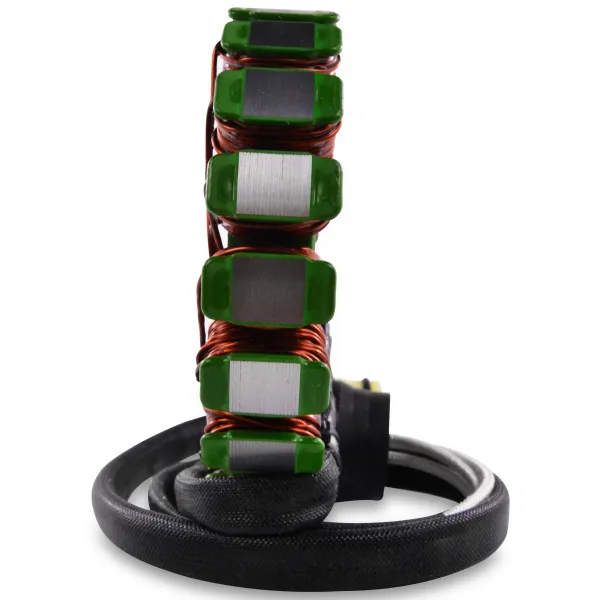

Stator Kawasaki Jet Ski Ultra 310X LX R Ultra 300X LX 260X LX Ultra 250X STX12F OEM 21003-3747

2018 Kawasaki Jet Ski Ultra 310LX
2018 Kawasaki Jet Ski Ultra 310R
2018 Kawasaki Jet Ski Ultra 310X
2017 Kawasaki Jet Ski Ultra 310LX
2017 Kawasaki Jet Ski Ultra 310R
2017 Kawasaki Jet Ski Ultra 310X
2016 Kawasaki Jet Ski Ultra 310LX
2016 Kawasaki Jet Ski Ultra 310R
2016 Kawasaki Jet Ski Ultra 310X
2015 Kawasaki Jet Ski Ultra 310LX
2015 Kawasaki Jet Ski Ultra 310R
2015 Kawasaki Jet Ski Ultra 310X
2014 Kawasaki Jet Ski Ultra 310LX
2014 Kawasaki Jet Ski Ultra 310R
2014 Kawasaki Jet Ski Ultra 310X
2013 Kawasaki Jet Ski Ultra 300LX
2013 Kawasaki Jet Ski Ultra 300X
2012 Kawasaki Jet Ski Ultra 300LX
2012 Kawasaki Jet Ski Ultra 300X
2011 Kawasaki Jet Ski Ultra 300LX
2011 Kawasaki Jet Ski Ultra 300X
2010 Kawasaki Jet Ski Ultra 260LX
2010 Kawasaki Jet Ski Ultra 260X
2009 Kawasaki Jet Ski Ultra 260LX
2009 Kawasaki Jet Ski Ultra 260X
2008 Kawasaki Jet Ski Ultra 250X
2007 Kawasaki Jet Ski Ultra 250X
2003 Kawasaki Jet Ski STX-12F

OEM 21003-3747

Dimensions :
Interior diameter : 41 mm
Exterior diameter : 104 mm
Thickness : 14 mm
Length of wires stator to grommet : 75 mm
Length of wires grommet to plug : 60 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Between each White = 1.1 ohms +-20%
