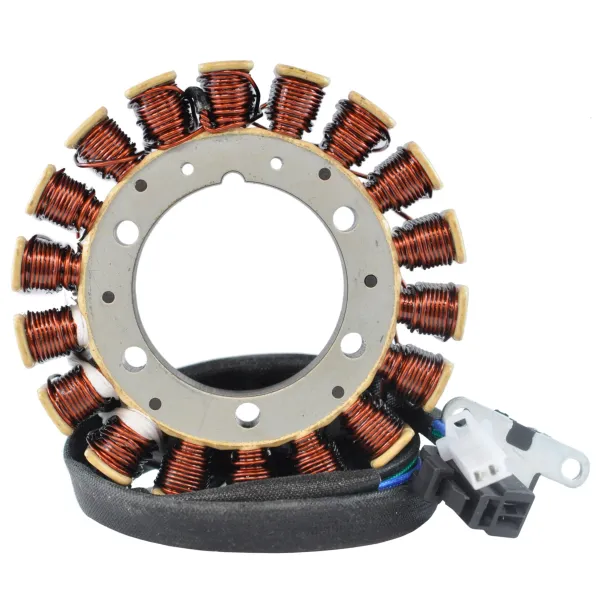

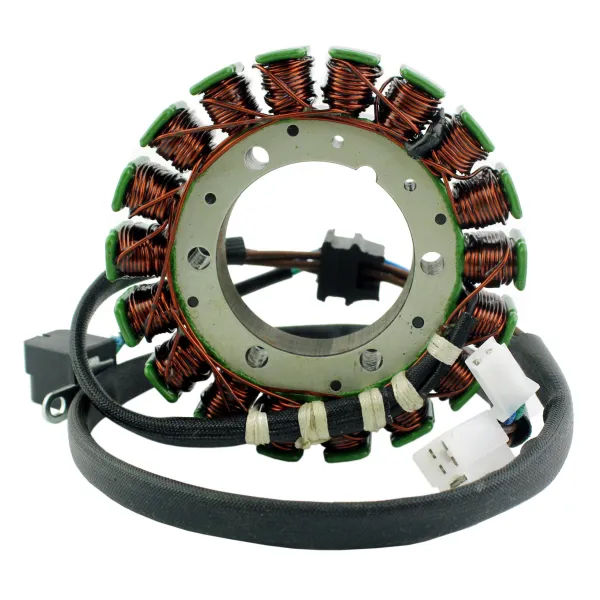

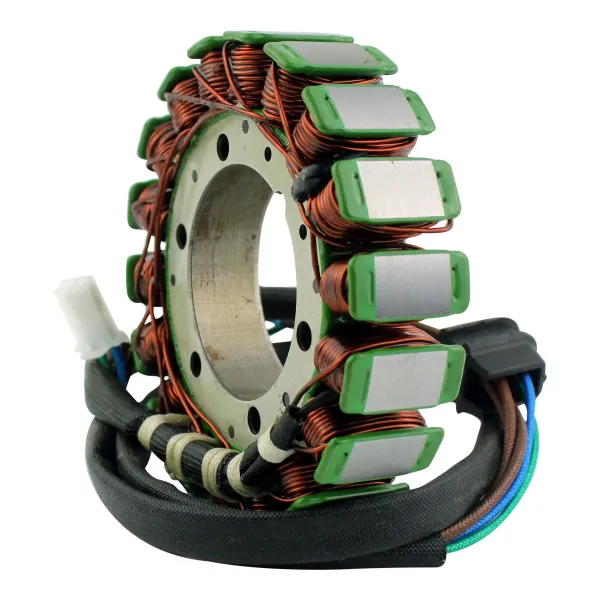

Stator-Suzuki-VL1500 Boulevard C90

Stator

Resistant to 200 degrees Celsius


    2009
        Suzuki
            Boulevard C90 VL1500
                Motorcycle 2009 Suzuki Boulevard C90 VL1500
            Boulevard C90T VL1500T
                Motorcycle 2009 Suzuki Boulevard C90T VL1500T
    2008
        Suzuki
            Boulevard C90 VL1500
                Motorcycle 2008 Suzuki Boulevard C90 VL1500
            Boulevard C90T VL1500T
                Motorcycle 2008 Suzuki Boulevard C90T VL1500T
    2007
        Suzuki
            Boulevard C90 VL1500
                Motorcycle 2007 Suzuki Boulevard C90 VL1500
            Boulevard C90T VL1500T
                Motorcycle 2007 Suzuki Boulevard C90T VL1500T
    2006
        Suzuki
            Boulevard C90 VL1500
                Motorcycle 2006 Suzuki Boulevard C90 VL1500
            Boulevard C90T VL1500T
                Motorcycle 2006 Suzuki Boulevard C90T VL1500T
    2005
        Suzuki
            Boulevard C90 VL1500
                Motorcycle 2005 Suzuki Boulevard C90 VL1500
            Boulevard C90T VL1500T
                Motorcycle 2005 Suzuki Boulevard C90T VL1500T


OEM 32101-10F11
32101-10F10

Dimensions :
Interior diameter : 53mm
Exterior diameter : 115mm
Thickness : 20mm
Length of wires stator to grommet : 120mm
Length of wires grommet to plug : 410mm
Length of pickup coil's wire to grommet : 45mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : Black between each Black = 0.4ohms +/-20%
Pickup : Blue to Green = 200ohms +/-20%
