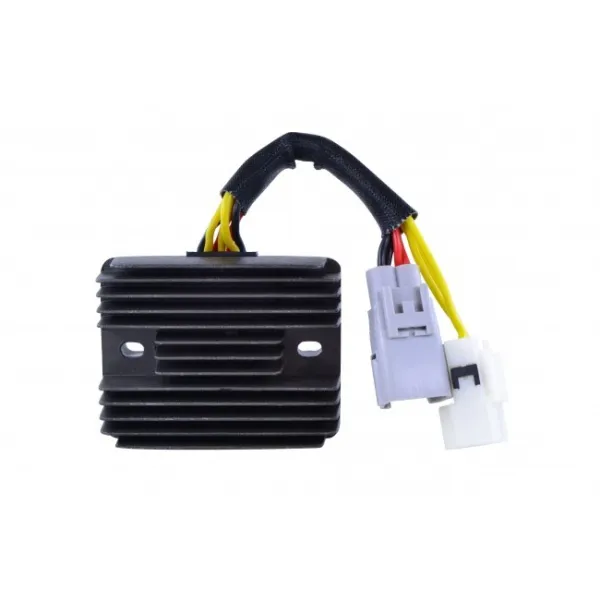

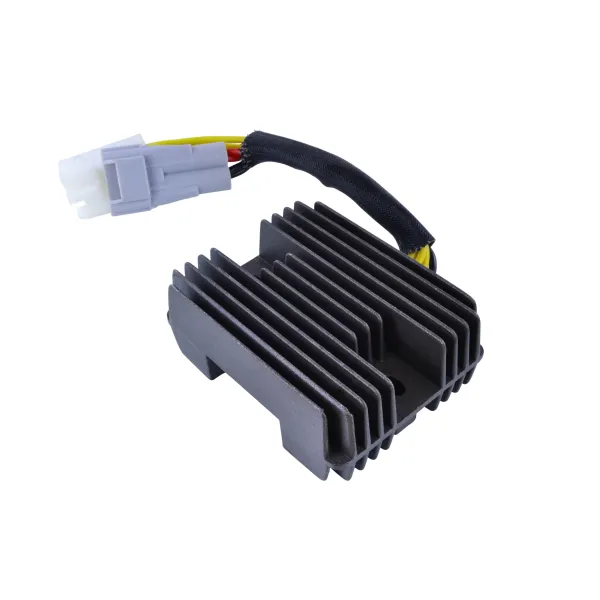

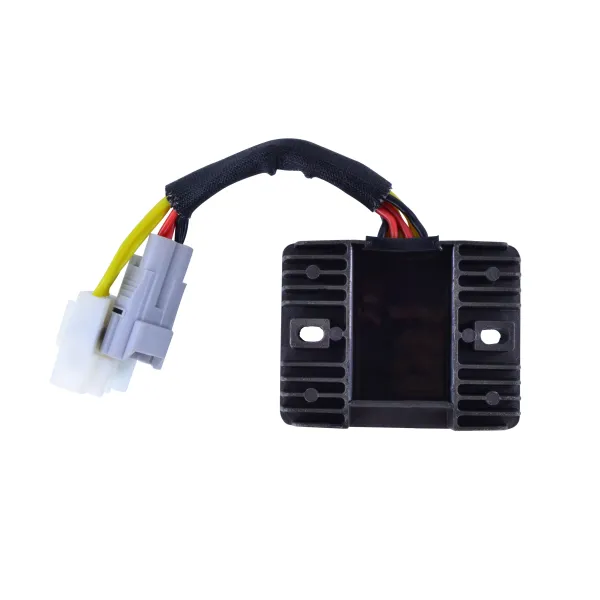

Regulator Rectifier Mosfet Suzuki Boulevard C90 VL1500 M90 VZ1500 M109R VZR1800 Burgman AN650 OEM 32800-10G30

Regulator Rectifier Mosfet Suzuki

Improved heat sink and charging capabilities

It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

Dimensions:
Width: 110 mm
Length: 80 mm
Height: 40 mm
Wires length: 170 mm
Fixation holes center to center: 80 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 7
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: 15 V
Operation Temperature: -20⁰ to 85⁰
