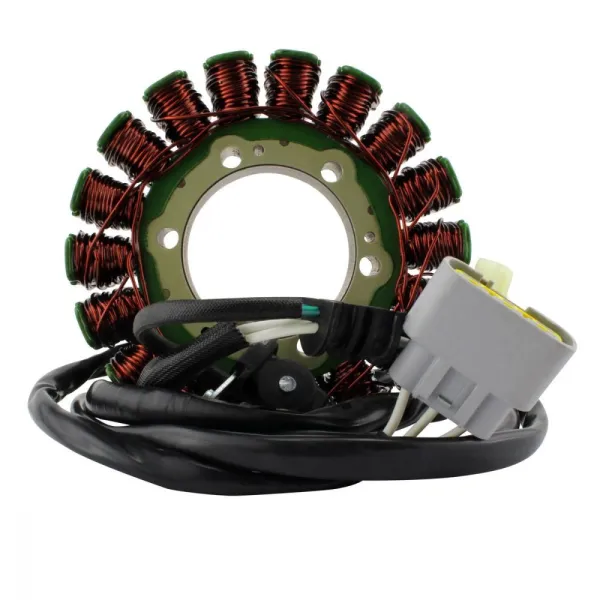

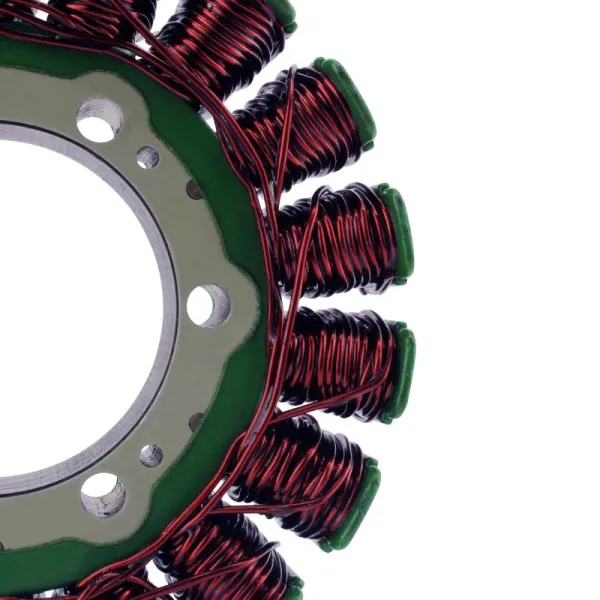

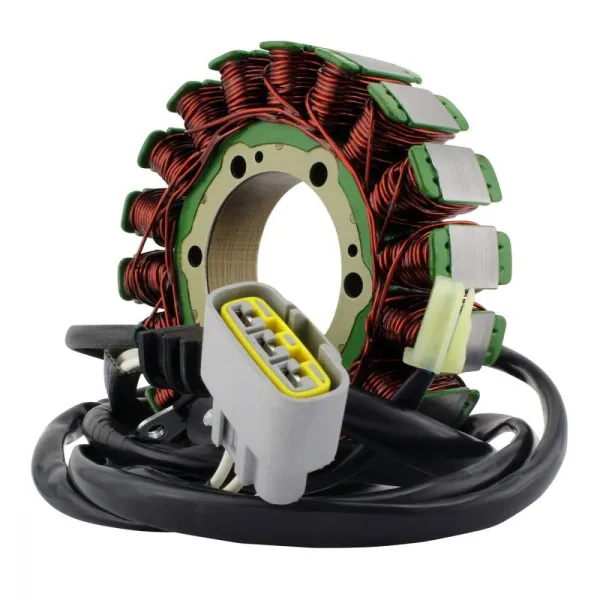

Stator Yamaha VMax 1700 OEM 2S3-81410-00-00

Stator - Resistant to 200 degrees Celsius

2020 Yamaha V-Max 1700
2019 Yamaha V-Max 1700
2018 Yamaha V-Max 1700
2017 Yamaha V-Max 1700
2016 Yamaha V-Max 1700
2015 Yamaha V-Max 1700
2014 Yamaha V-Max 1700
2013 Yamaha V-Max 1700
2012 Yamaha V-Max 1700
2011 Yamaha V-Max 1700
2010 Yamaha V-Max 1700
2009 Yamaha V-Max 1700

OEM 2S3-81410-00-00

Dimensions:
Interior diameter: 54 mm
Exterior diameter: 126 mm
Thickness: 23 mm
Length of wires stator to grommet: 125 mm
Length of wires grommet to plug: 1500 mm 400 mm
Length of pickup coil's wire to grommet: 140 mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: White to White = 0.4 ohms +-20%
Alternator: White to ground = O.L
Pickup: Blue/Yellow to Green = 240 ohms +-20%
