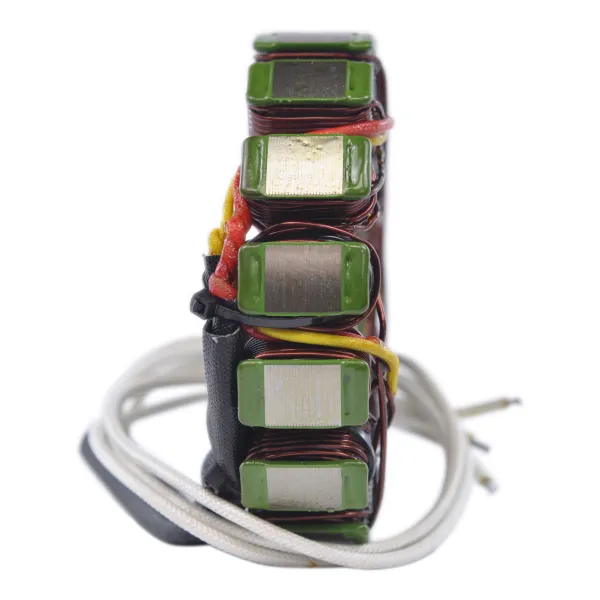

Stator-Kawasaki-VN900

Stator

2006-2017 Kawasaki Vulcan 900

Resistant to 200 degrees Celsius

OEM 21003-0053

Dimensions :
Interior diameter : 41mm
Exterior diameter : 106mm
Thickness : 14mm

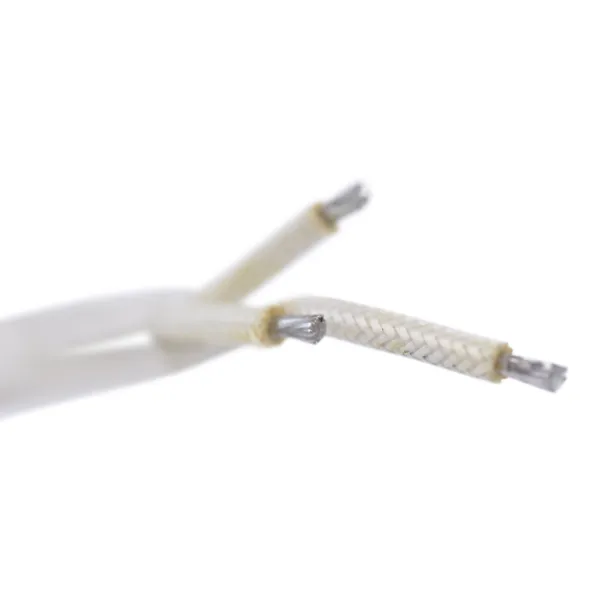

Length of wires stator to grommet : 125mm
Length of wires grommet to plug : 225mm

Other specifications :
Number of wires : 3
Number of plugs : 0
Number of pins : 3

Wire to wire resistance :
Alternator : White between each White = 0.4ohms +/-20%
