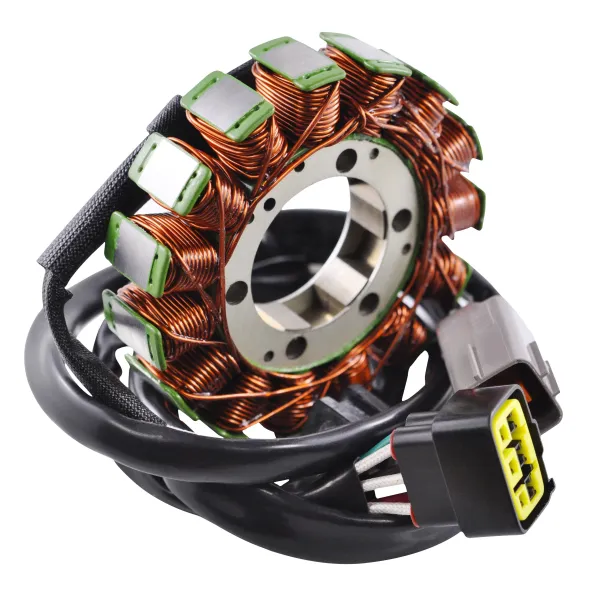

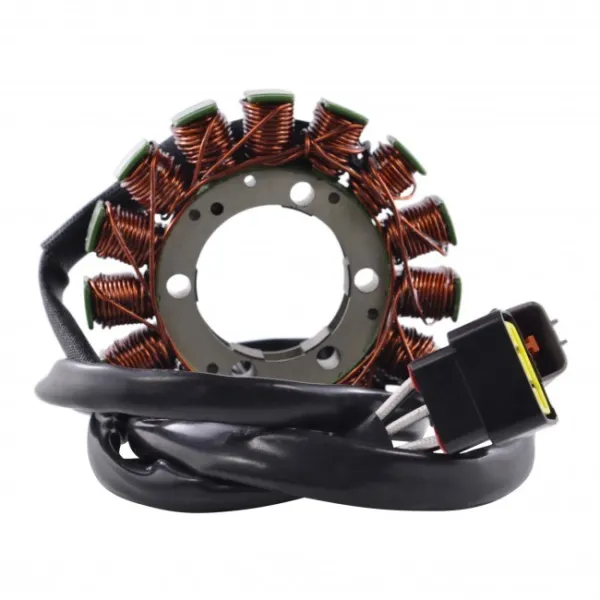

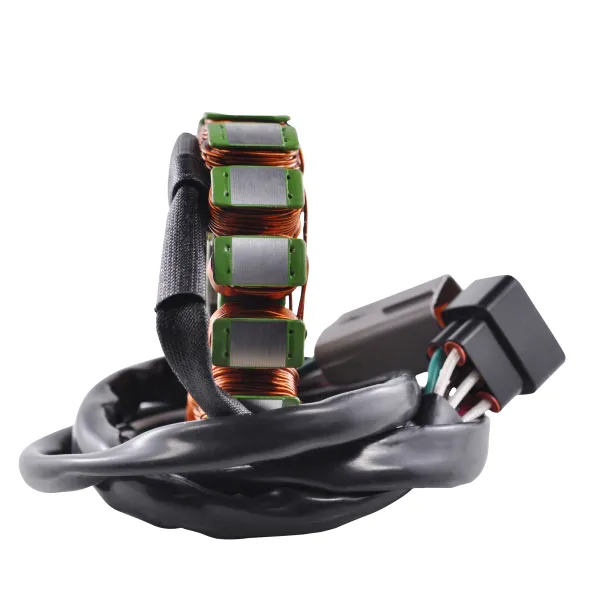

Stator Kawasaki VN900 Vulcan

Stator

OEM 21003-0053

2024 Kawasaki VN 900 Vulcan
2023 Kawasaki VN 900 Vulcan
2022 Kawasaki VN 900 Vulcan
2021 Kawasaki VN 900 Vulcan
2020 Kawasaki VN 900 Vulcan
2019 Kawasaki VN 900 Vulcan
2018 Kawasaki VN 900 Vulcan
2017 Kawasaki VN 900 Vulcan
2016 Kawasaki VN 900 Vulcan
2015 Kawasaki VN 900 Vulcan
2014 Kawasaki VN 900 Vulcan
2013 Kawasaki VN 900 Vulcan
2012 Kawasaki VN 900 Vulcan
2011 Kawasaki VN 900 Vulcan
2010 Kawasaki VN 900 Vulcan
2009 Kawasaki VN 900 Vulcan
2008 Kawasaki VN 900 Vulcan
2007 Kawasaki VN 900 Vulcan
2006 Kawasaki VN 900 Vulcan

Dimensions :
Interior diameter : 44 mm
Exterior diameter : 115 mm
Thickness : 16 mm
Length of wires stator to grommet : 115 mm
Length of wires grommet to plug 1 : 50 mm
Length of wires grommet to plug 2 : 70 mm

Other specifications :
Number of wires : 10

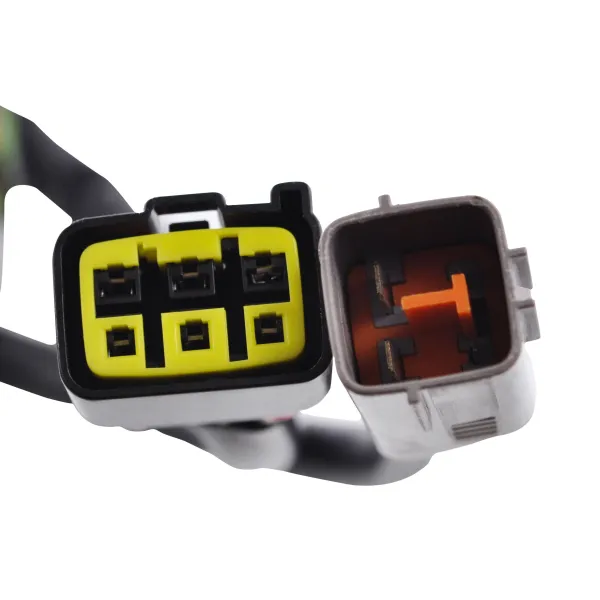

Number of plugs : 2
Number of pins : 10

Wire to wire resistance :
Alternator : White to White = 0.4 ohms +-20%
