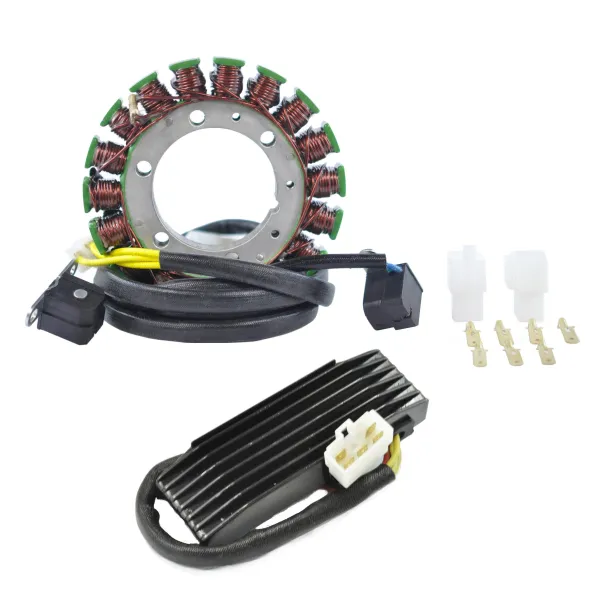

Kit Stator Regulator Rectifier Suzuki Boulevard S83 VS1400 GLP Intruder VS1400 GL Intruder

Kit Stator Regulator Rectifier Suzuki Boulevard S83 VS1400 GLP Intruder VS1400 GL Intruder

Stator Resistant to 200 degrees Celsius

2009
Boulevard S83 VS1400 GLP Intruder
2008
Boulevard S83 VS1400 GLP Intruder
2007
Boulevard S83 VS1400 GLP Intruder
2006
Boulevard S83 VS1400 GLP Intruder
2005
Boulevard S83 VS1400 GLP Intruder
2004
VS 1400 GL Intruder
2003
VS 1400 GL Intruder
2002
VS 1400 GL Intruder
2001
VS 1400 GL Intruder
2000
VS 1400 GL Intruder
1999
VS 1400 GL Intruder
1998
VS 1400 GL Intruder
1997
VS 1400 GL Intruder
1996
VS 1400 GL Intruder

OEM
Stator
32101-38B00
32101-38B01
32101-38B02
Voltage Regulator Rectifier
32800-12E00
32800-12E01

Stator
Dimensions :
Interior diameter : 54mm
Exterior diameter : 115mm
Thickness : 18mm

Dimensions:
Width: 90 mm
Length: 80 mm
Height: 25 mm
Wires length: 140 mm
Fixation holes center to center: 68 mm

Other specifications:
Number of plugs: 2
Number of pins: 9
Number of wires: 9
