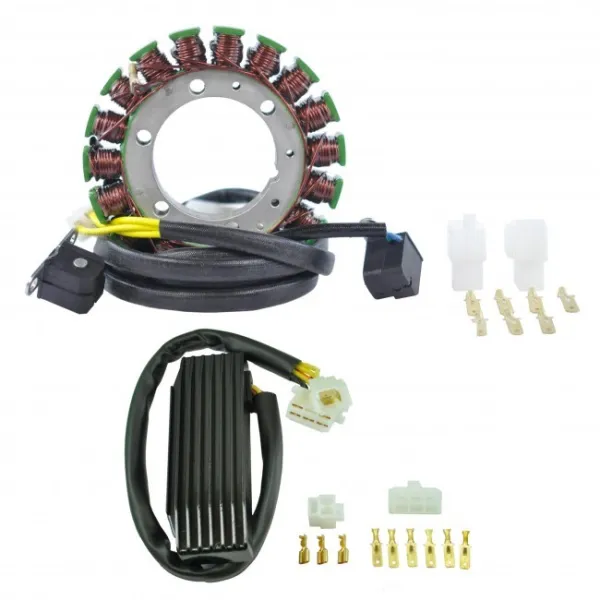

Kit Stator Regulator Rectifier Suzuki VS 1400 GL Intruder 1987-1995

Kit Stator Regulator Rectifier Suzuki

Stator Resistant to 200 degrees Celsius

1987-1995 Suzuki VS 1400 GL Intruder

OEM
Stator
32101-38B00
32101-38B01
32101-38B02
Voltage Regulator Rectifier
32800-38B00

Stator
Dimensions :
Interior diameter : 54mm
Exterior diameter : 115mm
Thickness : 18mm
Length of wires stator to grommet : 200mm
Length of wires grommet to plug : 620mm
Length of pickup coil's wire to grommet : 90mm & 170mm
Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4 ohms +/-20%
Pickup : Blue to Green = 200 ohms +/-20%
Source : Black to Yellow = 200 ohms +/-20%
Voltage Regulator Rectifier
Dimensions :
Width : 50mm
Length : 145mm
Height: 25mm
Wires length : 600mm
Other specifications :
Number of plugs : 2
Number of pins : 8
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 25A-35A/300W-500W
Open Circuit Voltage: <15V
Operation Temperature: -20⁰ to 85⁰
