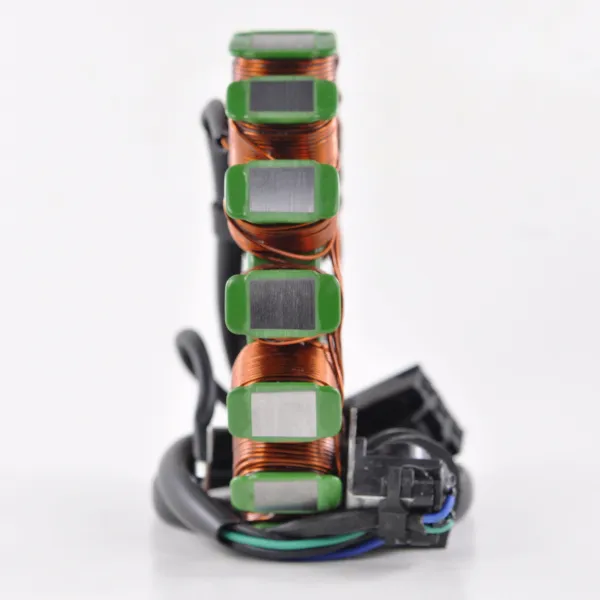

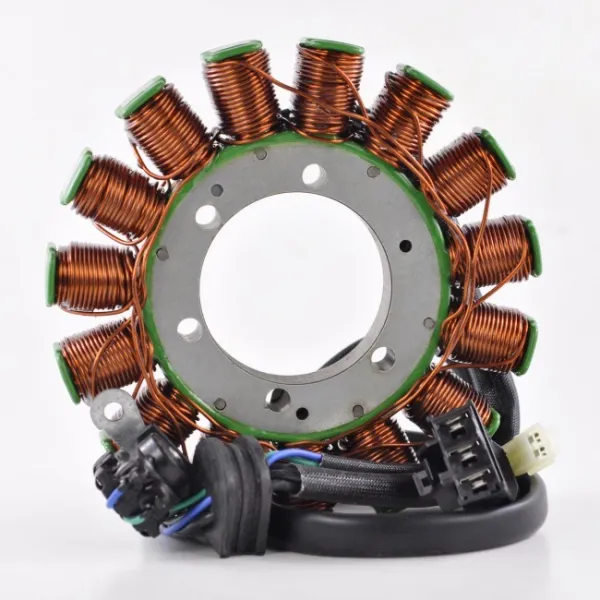

Stator Suzuki Boulevard M109R VZR1800 OEM 32101-48G20
Stator Suzuki Boulevard M109R VZR1800 OEM 32101-48G20
Stator Suzuki Boulevard M109R VZR1800 OEM 32101-48G20
Stator Suzuki Boulevard M109R VZR1800 OEM 32101-48G20

Stator Suzuki Boulevard M109R VZR1800 OEM 32101-48G20

€204.00 Tax included

  • Stator Suzuki Boulevard M109R VZR1800 OEM 32101-48G20
Reference
CARM01596
2-4 Days (2 Items)

  • Stator
  • 2006-2024 Suzuki Boulevard M109R VZR1800

    OEM 32101-48G20

    Dimensions :
    Interior diameter : 54 mm
    Exterior diameter : 140 mm
    Thickness : 18 mm
    Length of wires stator to grommet : 150 mm
    Length of wires grommet to plug : 420 mm
    Length of pickup coil's wire to grommet : 240 mm

    Other specifications :
    Number of wires :5
    Number of plugs : 2
    Number of pins :5

    Wire to wire resistance :
    Alternator : Black to Black = 0.5 ohms +-20%
    Pickup : Blue to Green = 239 ohms +-20%

  • Resistant to 200 degrees Celsius
