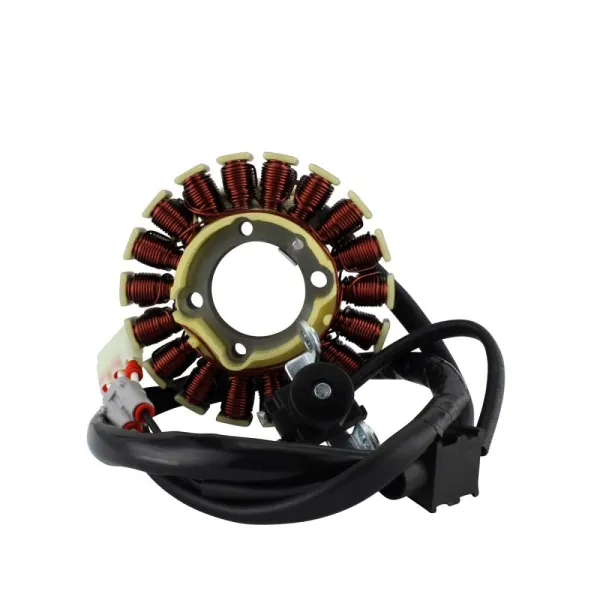

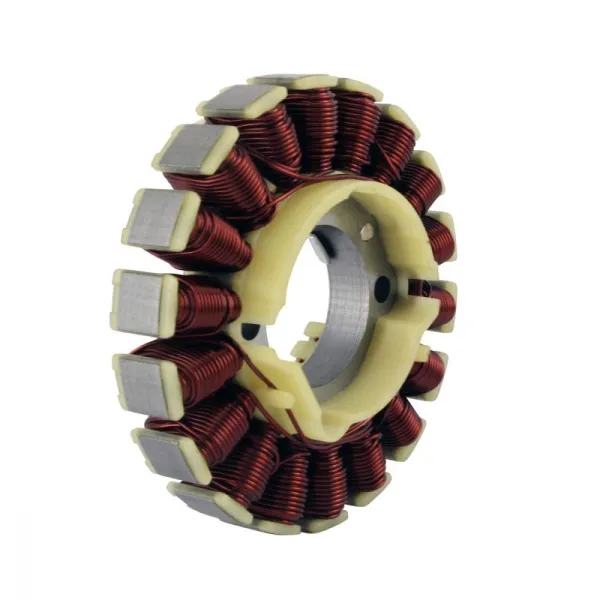

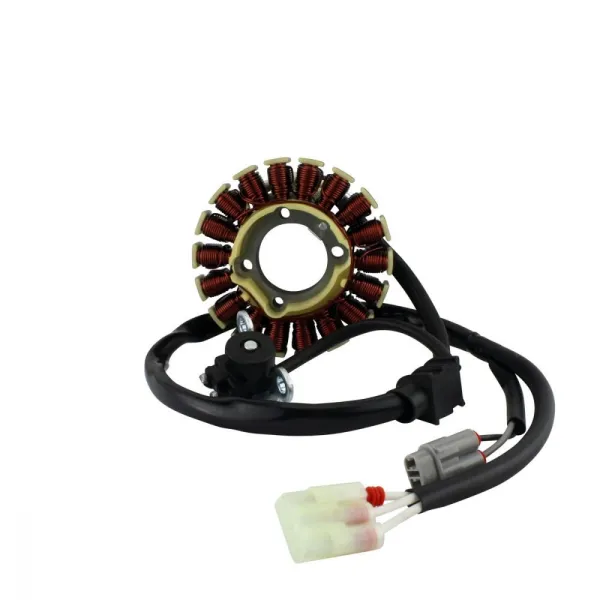

Stator Yamaha YZ450F WR450F YZ250F WR250F OEM 2GB-81410-01-00 2GB-81410-00-00

2019 Yamaha YZ 250 F
2019 Yamaha WR 250 F
2018 Yamaha YZ 450 F
2018 Yamaha YZ 250 F
2018 Yamaha WR 450 F
2018 Yamaha WR 250 F
2017 Yamaha YZ 450 F
2017 Yamaha YZ 250 F
2017 Yamaha WR 450 F
2017 Yamaha WR 250 F
2016 Yamaha YZ 450 F
2016 Yamaha YZ 250 F
2016 Yamaha WR 450 F
2016 Yamaha WR 250 F
2015 Yamaha YZ 250 F
2015 Yamaha WR 250 F

OEM 2GB-81410-01-00
2GB-81410-00-00

Dimensions:
Interior diameter: 31 mm
Exterior diameter: 88 mm
Thickness: 10 mm
Length of wires stator to grommet: 130 mm
Length of wires grommet to plug: 455 mm
Length of pickup coil's wire to grommet: 130 mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: White to White = 0.9 ohms +-20%
Alternator: White to ground = O.L
Pickup: Dark Gray to Light Gray = 275 ohms +-20%
