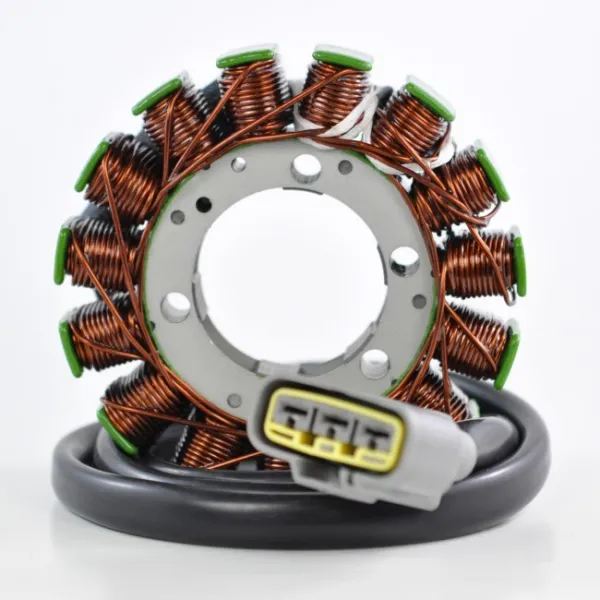

Stator Yamaha Raider 1900 Roadliner 1900 Stratoliner 1900

Stator Yamaha Raider 1900 Roadliner 1900 Stratoliner 1900

2016 Yamaha Raider 1900
2015 Yamaha Raider 1900
2015 Yamaha Raider S 1900
2014 Yamaha Raider 1900
2014 Yamaha Raider S 1900
2014 Yamaha Roadliner S 1900
2014 Yamaha Stratoliner 1900
2014 Yamaha Stratoliner S 1900
2013 Yamaha Raider 1900
2013 Yamaha Raider S 1900
2013 Yamaha Roadliner S 1900
2013 Yamaha Stratoliner S 1900
2012 Yamaha Raider 1900
2012 Yamaha Raider S 1900
2012 Yamaha Roadliner S 1900
2012 Yamaha Stratoliner S 1900
2011 Yamaha Raider 1900
2011 Yamaha Raider S 1900
2011 Yamaha Stratoliner 1900
2010 Yamaha Raider 1900
2010 Yamaha Raider S 1900
2010 Yamaha Roadliner S 1900
2010 Yamaha Stratoliner 1900
2010 Yamaha Stratoliner S 1900
2009 Yamaha Raider 1900
2009 Yamaha Raider S 1900
2009 Yamaha Roadliner Midnight 1900
2009 Yamaha Roadliner S 1900
2009 Yamaha Stratoliner S 1900
2008 Yamaha Raider 1900
2008 Yamaha Roadliner Midnight 1900
2008 Yamaha Roadliner S 1900
2008 Yamaha Stratoliner Midnight 1900
2008 Yamaha Stratoliner S 1900
2007 Yamaha Roadliner Midnight 1900
2007 Yamaha Roadliner S 1900
2007 Yamaha Stratoliner Midnight 1900
2007 Yamaha Stratoliner S 1900
2006 Yamaha Roadliner Midnight 1900
2006 Yamaha Roadliner S 1900
2006 Yamaha Stratoliner Midnight 1900
2006 Yamaha Stratoliner S 1900

OEM 1D7-81410-00-00
1D7-81410-01-00

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 105 mm
Thickness : 20 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 900 mm
Other specifications :
Number of wires : 3

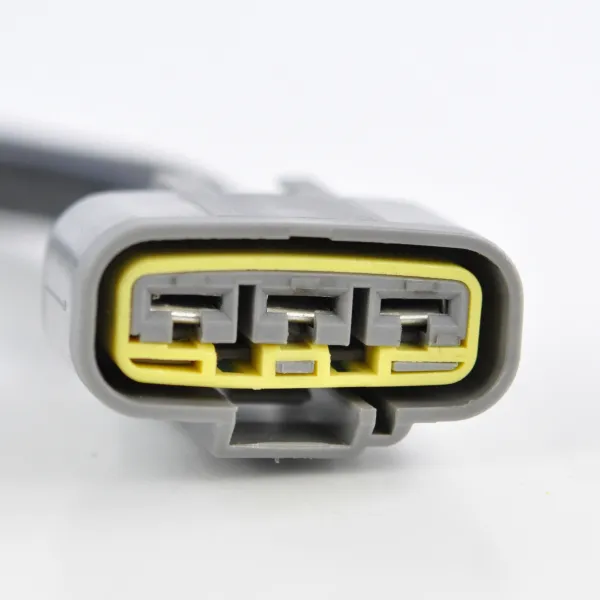

Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : White to White = 0.5 ohms +/-20%
