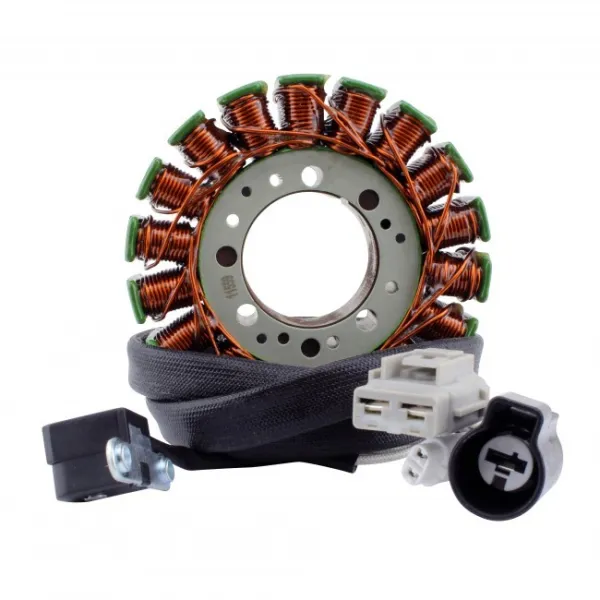

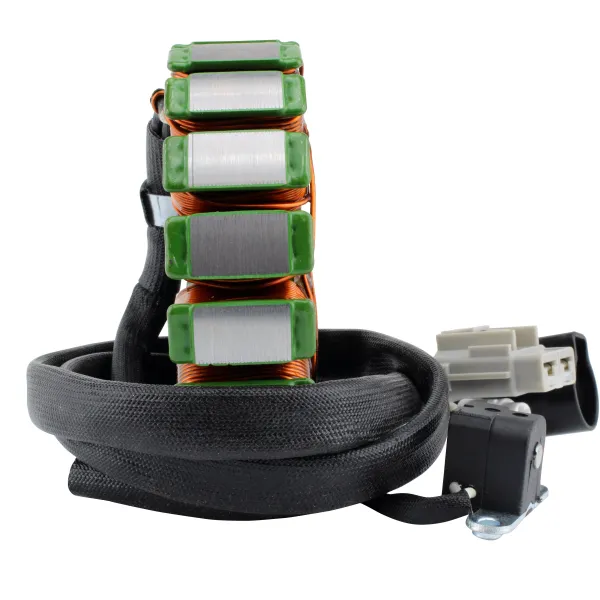

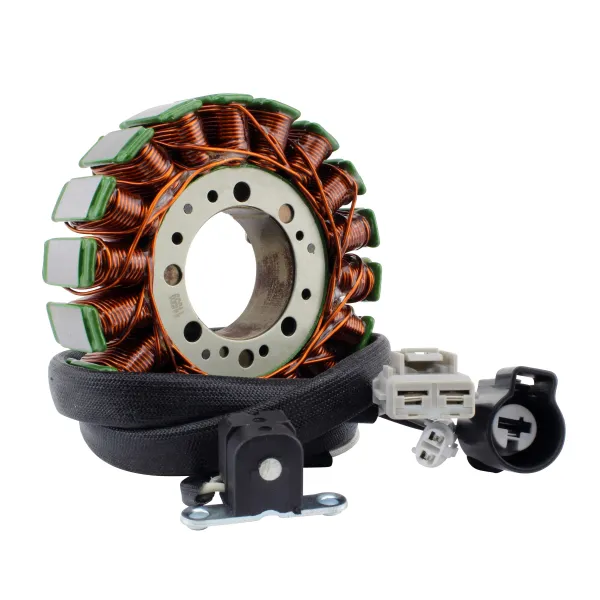

Stator Yamaha YXZ1000R OEM 2HC-81410-00-00
Stator Yamaha YXZ1000R OEM 2HC-81410-00-00
Stator Yamaha YXZ1000R OEM 2HC-81410-00-00
Stator Yamaha YXZ1000R OEM 2HC-81410-00-00
Stator Yamaha YXZ1000R OEM 2HC-81410-00-00

Stator Yamaha YXZ1000R OEM 2HC-81410-00-00

€238.80 Tax included

Stator Yamaha YXZ1000R OEM 2HC-81410-00-00

Reference
CARMS010-104898
5-7 Days (2 Items)

Stator

2018 Yamaha YXZ 1000 R
2018 Yamaha YXZ 1000 R EPS
2018 Yamaha YXZ 1000 R EPS SS
2017 Yamaha YXZ 1000 R
2016 Yamaha YXZ 1000 R
OEM 2HC-81410-00-00
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 65 mm
Thickness : 23 mm
Length of wires stator to grommet : 182 mm
Length of wires grommet to plug : 763 mm
Length of pickup coil's wire to grommet : 105 mm
Other specifications :
Number of wires : 5
Number of plugs : 3
Number of pins : 5
Number of poles : 18
Wire to wire resistance :
Alternator : Between each White = 0.4 ohms +-20%
Pickup : Light Grey to Dark Grey = 500 ohms +-20%
  • Highest grade copper windings, resistant to 200 degrees Celsius
