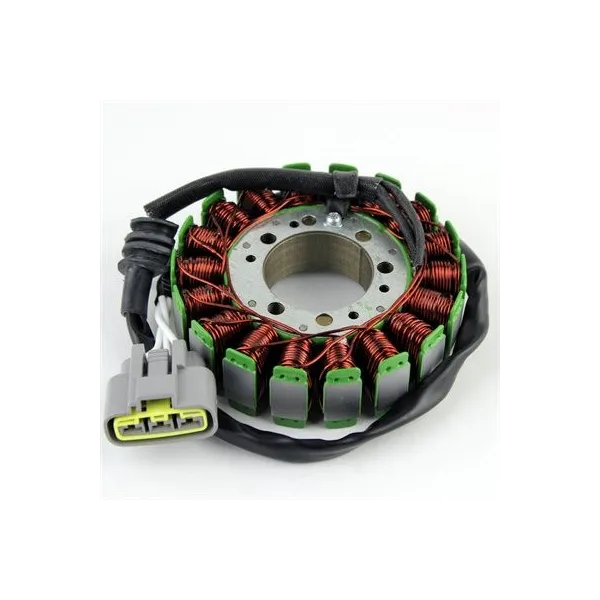

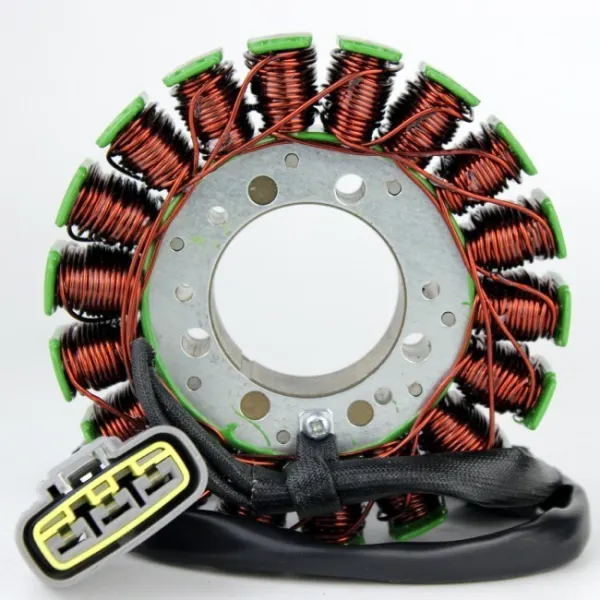

Stator-Yamaha-YZFR1

Stator

2002 Yamaha YZF R1
2003 Yamaha YZF R1

OEM 5PW-81410-00-00
5PW-81410-01-00

Resistant to 200 degrees Celsius

Dimensions :
Interior diameter : 41 mm
Exterior diameter : 115 mm
Thickness : 21 mm
Length of wires stator to grommet : 50 mm
Length of wires grommet to plug : 400 mm

Other specifications :
Number of wires : 3

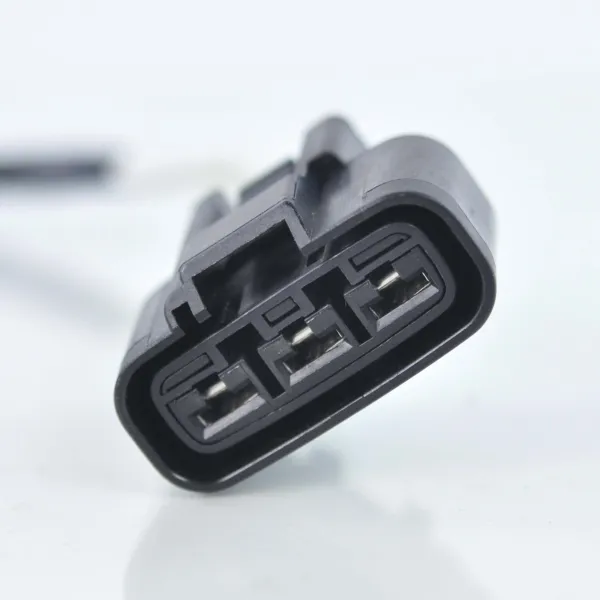

Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : White between each White = 0.4 ohms +/-20%
