€162.00 Tax included

Aluminum Mosfet Regulator Kawasaki ZG1400  Concours OEM 21066-0008 21066-0022 21066-0714 21066-0744

Reference
CARMS022-105928
5-7 Days (3 Items)

  • 2008  Kawasaki Street Bike,  ZG1400  Concours
    2009  Kawasaki Street Bike,  ZG1400  Concours
    2010  Kawasaki Street Bike,  ZG1400  Concours
    2011  Kawasaki Street Bike,  ZG1400  Concours
    2012  Kawasaki Street Bike,  ZG1400  Concours
    2013  Kawasaki Street Bike,  ZG1400  Concours
    2014  Kawasaki Street Bike,  ZG1400  Concours
    2015  Kawasaki Street Bike,  ZG1400  Concours
    2016  Kawasaki Street Bike,  ZG1400  Concours

    • OEM 21066-0008 21066-0022 21066-0714 21066-0744
    • It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

      Improved heat sink and charging capabilities

      Before installing your new voltage regulator rectifier:
      Check the AC output of the stator.
      Replace any burned or corroded connectors on stator and regulator/rectifier
      Check and repair any melted wiring.
      Use hi-temp dielectric grease on all connectors.
    Dimensions:
    Width: 103 mm
    Length: 103 mm
    Height: 28 mm
    Fixation holes center to center: 80 mm
    Other specifications:
    Number of plugs: 2
    Number of pins: 5
    Number of wires: 0
    Minimum Charging Voltage: 14.5 V +- 0.5 V
    Maximum Charging Current: 50 A / 500 W
    Open Circuit Voltage: 15 V
    Operation Temperature: -20⁰ to 85⁰

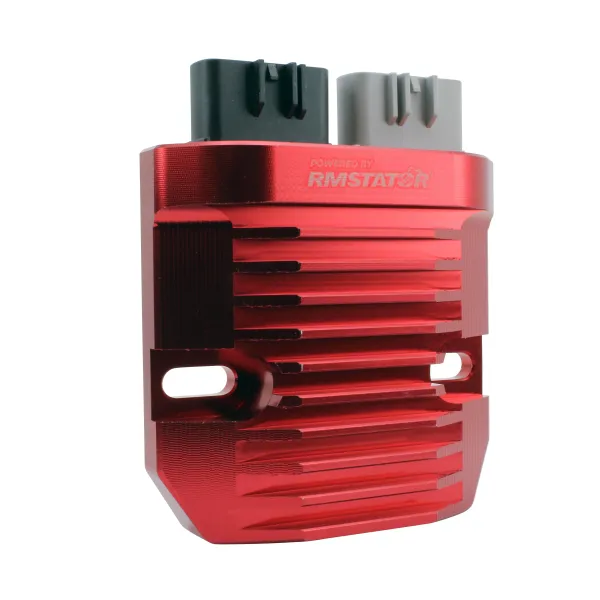

    Our new machined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.
