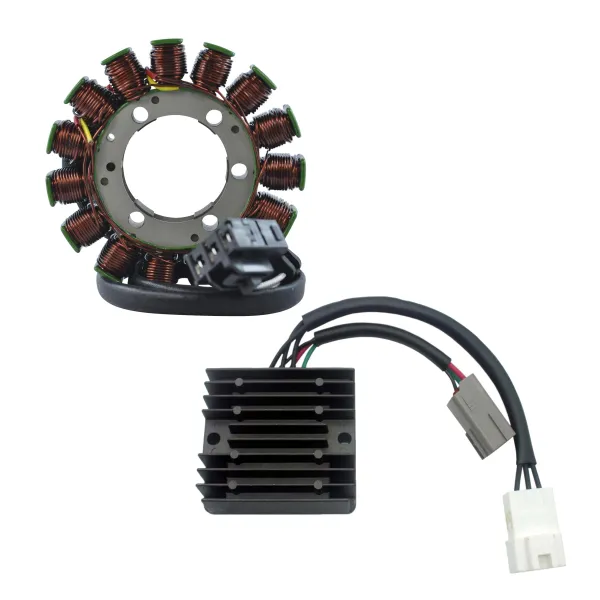

Kit Stator Regulator Rectifier Kawasaki Ninja ZX6R 2007-2008

Kit Stator Regulator Rectifier

Stator Resistant to 200 degrees Celsius

Kawasaki Ninja ZX6R 2007-2008

OEM
Stator
21003-0049
Voltage Regulator Rectifier
21066-0025

Stator
Dimensions :
Interior diameter : 43.4mm
Exterior diameter : 105mm
Thickness : 16.5mm
Length of wires stator to grommet : 100mm
Length of wires grommet to plug : 500mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : White to White = 0.4ohms +/-20%
Voltage Regulator Rectifier
Dimensions :
Width : 80mm
Length : 94mm
Height: 30mm
Wires length : 300mm 187mm
Fixation holes center to center : 73mm
Other specifications :
Number of plugs : 2
Number of pins : 6
Number of wires: 6
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 25A-35A/300W-500W
Open Circuit Voltage: <15V
Operation Temperature: -20⁰ to 85⁰
