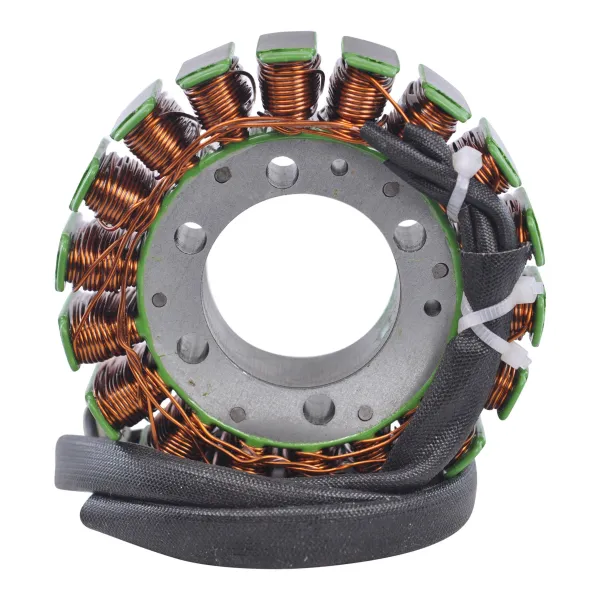

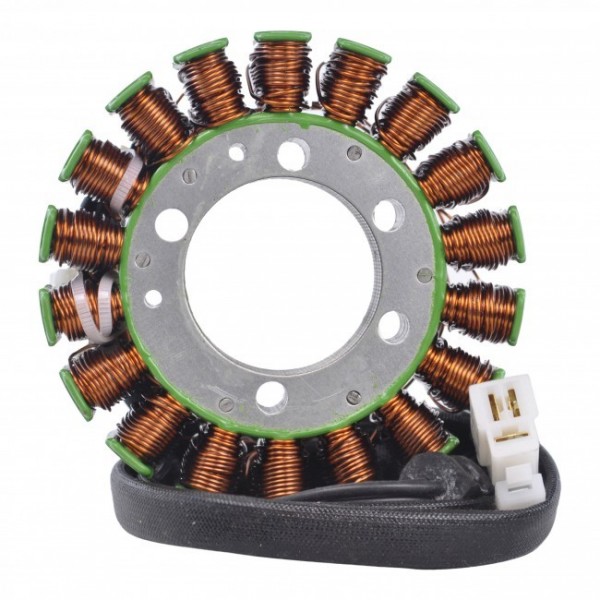

Stator-Triumph-Speed Triple 1050

Stator

Highest grade copper windings, resistant to 200 degrees Celsius

    2010
        Triumph
            Speed Triple
                Motorcycle 2010 Triumph Speed Triple 1050
    2009
        Triumph
            Speed Triple
                Motorcycle 2009 Triumph Speed Triple 1050
    2008
        Triumph
            Speed Triple
                Motorcycle 2008 Triumph Speed Triple 1050
    2007
        Triumph
            Speed Triple
                Motorcycle 2007 Triumph Speed Triple 1050
    2006
        Triumph
            Speed Triple
                Motorcycle 2006 Triumph Speed Triple 1050
    2005
        Triumph
            Speed Triple
                Motorcycle 2005 Triumph Speed Triple 1050

Exterior Diameter: 104mm
Interior Diameter: 42mm

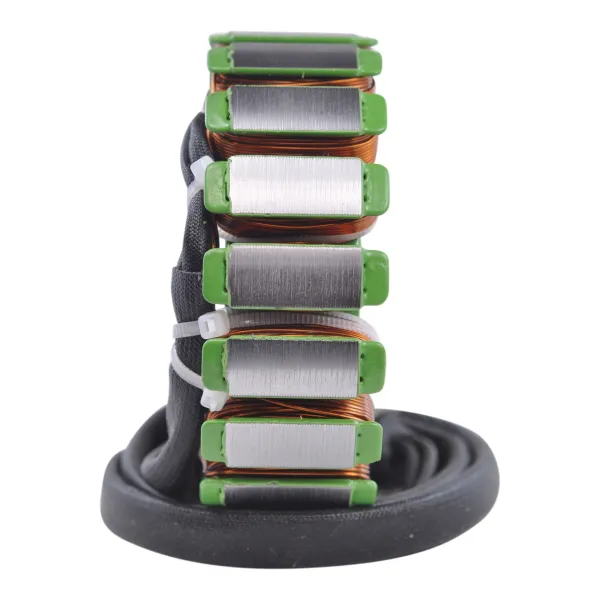

Thickness: 25mm

Harness length to grommet: 113 mm
Harness length grommet to plug: 820 mm

Other specifications:
Number of wires:3

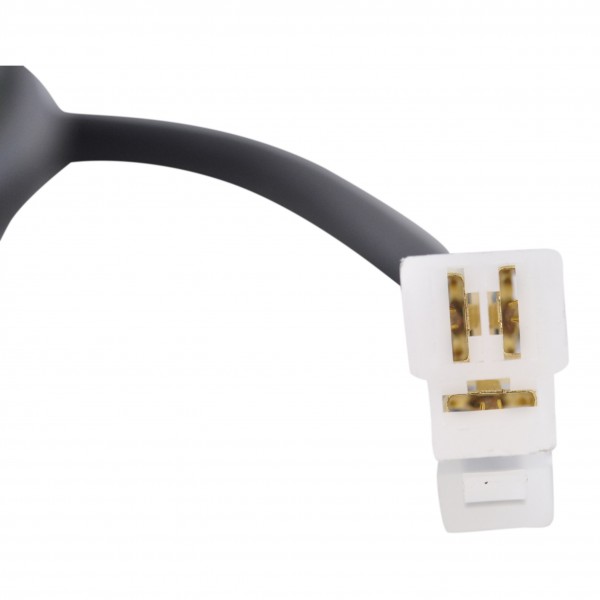

Number of plugs: 1
Number of pins: 3

Wire to wire resistance:
Alternator: black between each black = 0.4 ohms +/-20%

Please note: 2 types of stators for the Speed Triple. Also available with an external diameter of 115 mm (See reference CARM01390)
